Inkjet Printer Geared Stepper Motor Nema 11 28mm
| Place of Origin | China |
|---|---|
| Brand Name | Hetai |
| Certification | CE ROHS ISO |
| Model Number | 28BYGH507-03AG6 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Planetary Stepping Gearbox Motor | Reduction Ratio | 1：6 |
|---|---|---|---|
| Holding Torque | 2400 G.cm | Current | 2.0 A/Phase |
| Step Angle | 1.8 ° | Step Accuracy | ± 5% |
| Rated Voltage | 5.4V | Inductance | 1.9 MH/Phase |
| Resistance | 2.7 Ω/Phase | Max Radial Load | 28 N |
| Max Shaft Axial Load | 10 N | Protection Level | IP40 |
| Ambient Temperature | -20℃~+50℃ | Insulation Resistance | 100MΩ Min.500VC DC |
| Dielectric Strength | 500VAC 1 Minute | Length | 80 Mm |
| High Light | inkjet printer stepper motor,geared stepper motor nema 11,Stepper Motor Nema 11 28mm |
||
Product Description

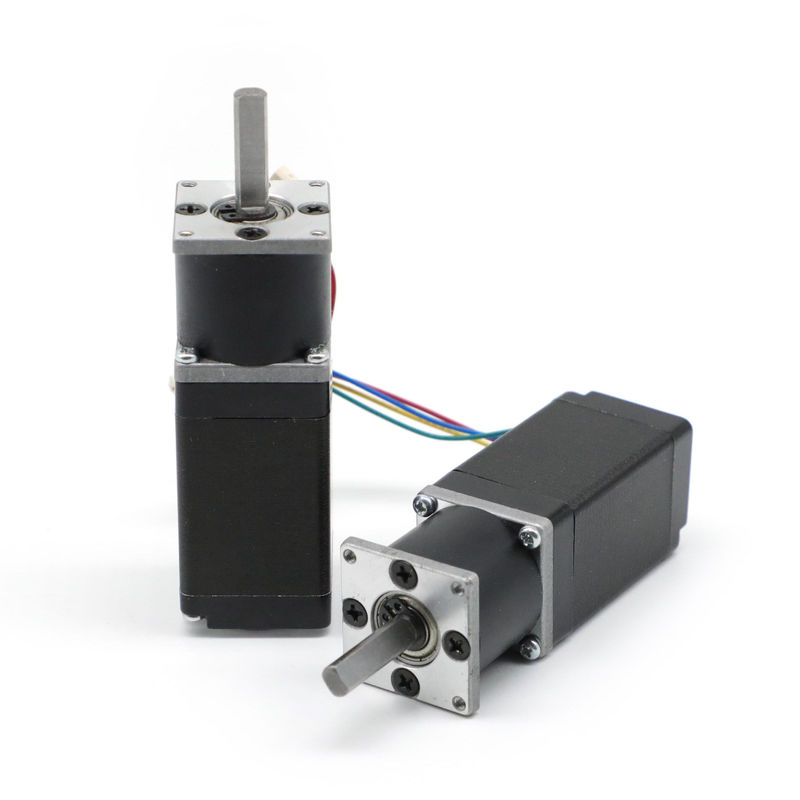

28BYGH nema 11 Stepping Gearbox Motor for Inkjet Printers
The 28BYGH Geared stepping motor has high output torque and precise positioning.
Electrical Specification
| 28BYGH507-03AG6 | ||
| STEP ANGLE | °/STEP | 1.8 |
| RATED VOLTAGE | V | 5.4 |
| CURRENT | A/PHASE | 2.0 |
| RESISTANCE | Ω/PHASE | 2.7 |
| INDUCTANCE | mH/PHASE | 1.9 |
| HOLDING TORQUE | g.cm | 2400 |
| INSULATION CLASS | B | |
Electrical Specification MOTOR PART:
| MODEL | STEP ANGLE (°/STEP) |
LEAD LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (G.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 28BYGH102-01 | 1.8 | 4 | 3.90 | 0.67 | 6.3 | 3.2 | 600 | 32 | 0.11 |
| 28BYGH105-01 | 1.8 | 6 | 3.1 | 0.95 | 3.3 | 1.0 | 430 | 32 | 0.11 |
| 28BYGH301 | 1.8 | 4 | 4.56 | 0.67 | 6.8 | 4.9 | 950 | 45 | 0.17 |
| 28BYGH303 | 1.8 | 6 | 3.40 | 0.95 | 3.4 | 1.0 | 750 | 45 | 0.14 |
| 28BYGH501 | 1.8 | 4 | 8.04 | 0.67 | 12.0 | 7.2 | 1200 | 51 | 0.19 |
| 28BYGH502 | 1.8 | 6 | 3.80 | 0.95 | 4.0 | 1.3 | 900 | 51 | 0.20 |
| Gearbox 28mm Electrical Specification: | ||||||||||
| Reduction ratio | 1/6 | |||||||||
| Number of gear trains | 1 | |||||||||
| Transmission efficiency | 81% | |||||||||
| Rated tolerance torque | 0.2 N.m | |||||||||
| Max momentary tolerance torque | 0.6 N.m | |||||||||
|
Radial load(10mm from flange) |
≤80N |
|||||||||
|
Shaft axial load |
≤30N |
|||||||||
| length (mm) |
28.5 |
|||||||||
| Weight (g) |
105 |
|||||||||
|
Housing material |
Metal |
|||||||||
|
Bearing at output |
Sleeve bearings |
|||||||||
|
Shaft press-fit force max |
≤200N |
|||||||||
|
Radial play of shaft(mm) |
≤0.03 |
|||||||||
|
Thrust play of shaft(mm) |
≤0.4 |
|||||||||
|
Backlash at no-load (°) |
≤1.5 |
|||||||||
***Note: The products can be customized by your request. Please contact us for more details.
Wiring Diagram
Product Application
Large injection printer
The ADVANTAGE of Planetary gearbox motor:
1. Planetary Gearbox Guarantees Flexible & Reliable Power Transmission System
2. Wide Speed Ratio with a Long Service Lifespan
3. Unique Design for High Power Density
4. High Accuracy
Planetary gearboxes are designed for a high proportion of input energy that helps seamlessly couple other gear arrangements.
