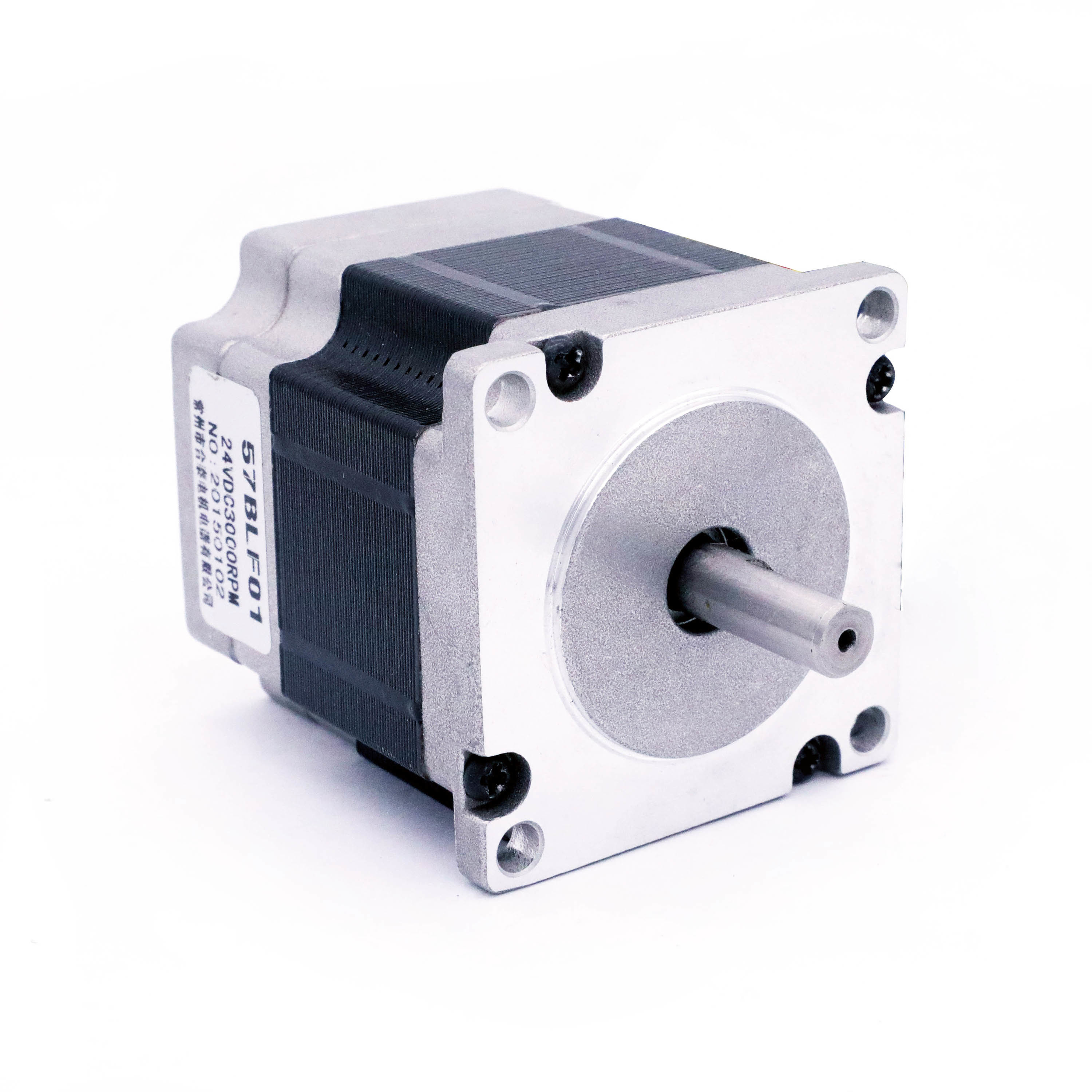

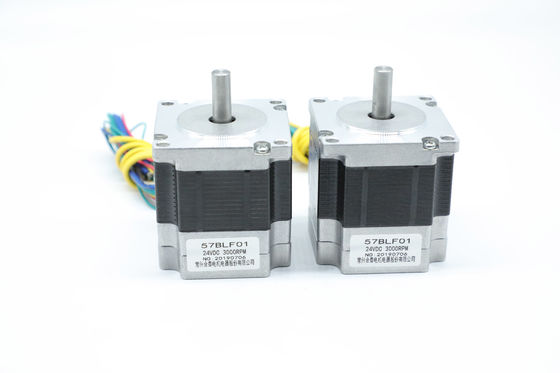

24v 250w Nema23 Brushless Dc Motor High Torque Low Speed
| Place of Origin | China |
|---|---|
| Brand Name | HeTai |
| Certification | CE ROHS ISO |
| Model Number | 57BLF |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Brushless DC Motor | Winding Type | Star |
|---|---|---|---|
| Insulation Class | B | Ambient Temperature | -20℃~+50℃ |
| Hall Effect Angle | 120° Electrical Angle | Rated Speed | 3800 Rpm |
| Insulation Resistance | 100MΩ Min.500VC DC | Dielectric Strength | 600VAC 1 Minute |
| Max Radial Force | 115N (10mm From Front Flange) | Max Axial Force | 45N |
| Highlight | nema 34 bldc motor,24v 250w bldc motor,57blf motor |
||
Product Description
57BLF nema 34 high torque IP40 motor brushless DC 250W for robotic arms
57BLF01 3 phase 8 poles Voltage 24V, Rated current 3.33A, Rated torque 0.2 Nm
57BLF02 3 phase 8 poles Voltage 24V, Rated current 6.67A, Rated torque 0.4 Nm
57BLF03 3 phase 8 poles Voltage 24V, Rated current 10A, Rated torque 0.6 Nm
57BLF04-001 3 phase 8 poles Voltage 36V, Rated current 8.87A, Rated torque 0.8 Nm
Electrical Specification:
| Model | Model | Model | Model | ||
| Specification | Unit | 57BLF01 | 57BLF02 | 57BLF03 | 57BLF04-001 |
| Number Of Phases | Phase | 3 | |||
| Number Of Poles | Poles | 8 | |||
| Rated Voltage | VDC | 24 | 36 | ||
| Rated Speed | Rpm | 3000 | 3000 | 3000 | 3000 |
| Rated Current | A | 3.33 | 6.67 | 10.0 | 8.87 |
| Rated Torque | N.m | 0.2 | 0.4 | 0.6 | 0.8 |
| Rated Power | W | 80 | 125 | 188 | 251 |
| Peak Torque | N.m | 0.6 | 1.2 | 1.8 | 2.4 |
| Peak Current | Amps | 10.0 | 20.0 | 30.0 | 26.6 |
| Torque Constant | N.m/A | 0.06 | 0.06 | 0.06 | 0.09 |
| Back EMF constant | V/kRPM | 6.3 | 6.3 | 6.3 | 9.47 |
| Body Length | mm | 59 | 80 | 101 | 122 |
| Weight | Kg | 0.61 | 0.94 | 1.25 | 1.59 |
*Products can be customized by special request.
*Products can match gearbox 42, 52, 56, 63mm
Wiring Diagram
| FUNCTION | COLOR | ||
| +5V | RED | UL1007 26AWG | |
| HALL A | YELLOW | ||
| HALLB | GREEN | ||
| HALLC | BLUE | ||
| GND | BLACK | ||
| PHASE A | YELLOW | UL1015 20AWG | |
| PHASE B | GREEN | ||
| PHASE C | BLUE | ||
Mechanical Dimension
Changzhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
