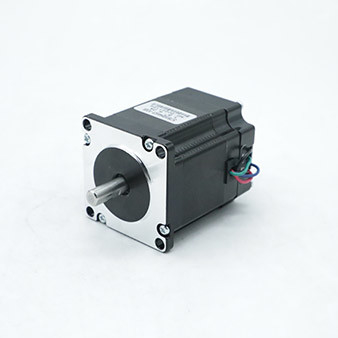

57BYGH443-XXB Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 57BYGH443-XXB
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH
Product Details
Product Name Hybrid Stepper Motor Step Angle 1.8 °
Lead Wire 4 Rated Voltage 1.68V
Rated Current 4.2A Resistance 0.4Ω
Inductance 1.3mH Holding Torque 1.5 Kg.cm
Motor Height 99 Mm Motor Weight 0.85 Kg
High Light

57BYGH443-XXB Stepper Motor

,

1.5Kg.cm Integrated Stepper Motor

,

99mm Driver Integrated Stepper Motor

Leave a Message
Product Description

57BYGH443-XXB integrated stepper motor with driver open-loop or closed-loop control with 485 communication

The integrated stepping system is composed of stepping motor, feedback system (optional), drive amplifier, motion controller and other subsystems. If the user's host computer (PC, PLC, etc.) is compared to the company boss, the motion controller is the executive, the drive amplifier is the mechanic, and the stepper motor is the machine tool. The boss coordinates cooperation among several executives through some form of communication/protocol (telephone, telegram, email, etc.).



Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500VDC
Step Angle
1.8°
Lead wire
4
Voltage (V)
1.68
Current (A/Phase)
4.2
Holding Torque (Kg.cm)
0.85 Kg.cm



Mechanical Dimension Of Hybrid Stepper Motor

57BYGH443-XXB Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control 0



Driver with 485 communication

Explanation

IRC57N


Minimum Value



Typical Value



Maximal Value



Unit

Continuous output current

0.7 4 6.0 A
Power supply voltage (DC) 15 24 50 Vdc
control method

RS485 communication fully isolated

electrical module design

RS485 communication frequency communication Up to 1MHz, recommended within 200KHz

Left and right limit control signal input current



6 10 16 mA

Left and right limit control signal input voltage, need 24V,

. A 2KΩ/1W resistor can be connected in series

with the common terminal of the common anode



- 5 - Vdc

Control signal pulse high level minimum time width

1.5 - - US

overvoltage point

  55   Vdc

Insulation resistance

100



Driver usage environment

Cooling Mode

Natural cooling or forced air cooling

Use environment



Occasion





Do not place it next to other heat-generating equipment. Avoid dust, oil mist, and corrosive gases.

In places with high humidity and strong vibration, combustible gas and conductive dust are prohibited.



Temperature

-10℃ ~ +50℃


Humidity

40 ~ 90%RH


Vibration

5.9m/s2MAX

Storage temperature

-20℃~60℃

Use Elevation

Below 1000 meters

Weight

1-2KG



Market Range of Hetai

57BYGH443-XXB Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control 1

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany, Italy, Spain, Norway etc.
North America: USA,Canada



Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox&Gearbox Motor, Brushless DC Motor, Servo Motor.

57BYGH443-XXB Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control 2

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.



Stator Winding Machine
57BYGH443-XXB Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control 357BYGH443-XXB Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control 4
Hetai introduced a large number of professional equipment, which greatly improved the production efficiency.


Noise test room

57BYGH443-XXB Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control 5



CNC Center

57BYGH443-XXB Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control 657BYGH443-XXB Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control 7



Packing&Delivery

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 16

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 17

Strictly palletizing and packaging to ensure that the motor will be delivered to the customer in good condition.



Automatic assembly line

57BYGH443-XXB Integrated Stepper Motor With Driver Open Loop Or Closed Loop Control 10


Products Annual Capacity
Hybrid stepper motor 3 million units
Brushless DC motor 2 million units
Servo motor 0.05 million units
Gear 0.2 million units

Since the reorganization in 1998, it has formed a certain scale of production and sales, with an annual production of more than 3 million motors.
