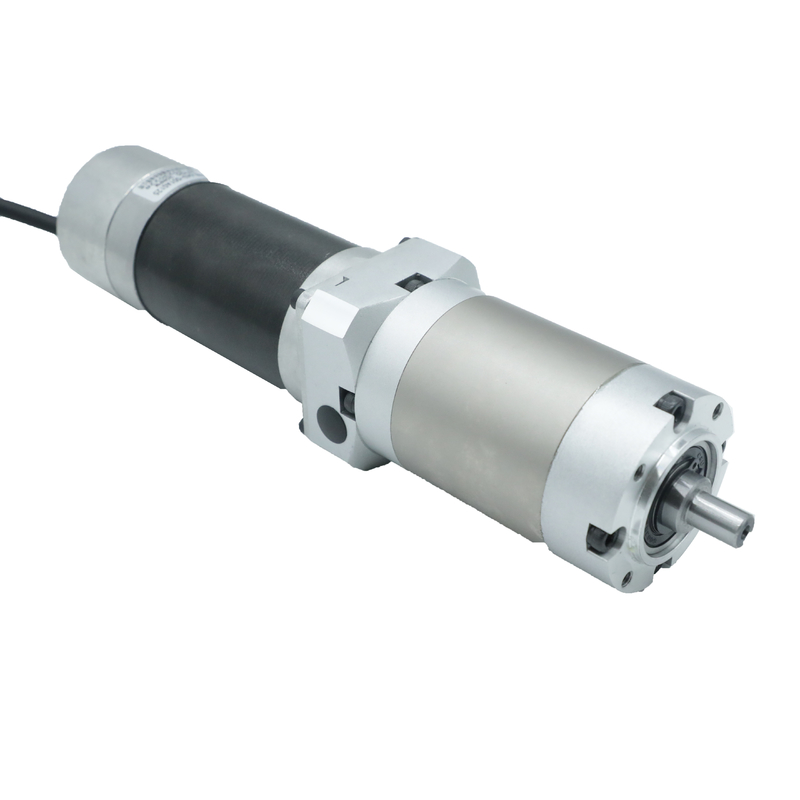

57BL643-001AG125 Nema23 Brushless Gearbox Motor 24V 125:1 38N.M 30rpm

Name: 57BL643-001AG125 Nema23 Brushless Gearbox Motor 24V 125:1 38N.M 30rpm
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: 57BL643-001AG125
Availability: InStock

Brand Name:	Hetai
Model Number:	57BL643-001AG125
MOQ:	50
Price:	USD
Delivery Time:	28-31
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Gearbox Brushless Motor

Nominal Voltage:

24 V

Rated Speed With Gearbox:

30 RPM

No-load Current:

1.5 A

Rated Torque:

38 N.M

Reduction Ratio:

1:125

Resistance:

0.25Ω

Winding Type:

Star

Dielectric Strength:

500V AC 1 Minute

Certification:

CE ROHS ISO

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

5000pcs/month

Highlight:

Nema23 Brushless Gearbox Motor

Brushless Gearbox Motor 30rpm

Gearbox Brushless Motor 24V 38N.M

Product Description

57BL643-001AG125 Nema23 Brushless Gearbox Motor 24V 125:1 reduction ratio 38N.m 30rpm

Advantages of brushless geared motors:

1. Brushless, low interference

The brushless motor removes the brush, and the most direct change is that there is no electric spark generated when the brushed motor is running, which greatly reduces the interference of electric sparks on remote control radio equipment.

2. Low noise and smooth operation

There are no brushes in the brushless motor, the friction force is greatly reduced during operation, the operation is smooth, and the noise will be much lower. This advantage is a huge support for the stability of the model operation.

3. Long service life and low maintenance cost

Without the brushes, the wear of the brushless motor is mainly on the bearings. From a mechanical point of view, the brushless motor is almost a maintenance-free motor. When necessary, it only needs to do some dust removal maintenance.
With the downward trend of the cost of brushless controllers and the development and market competition of brushless technology at home and abroad, the brushless power system is in the stage of rapid development and popularization, which also greatly promotes the development of domestic brushless motors.

Electrical Specification:

Product Name	Brushless Gearbox Motor
Model	57BL643-001AG125
Reduction Ratio	1:125
Voltage (V)	24 V
Rated Speed with gearbox (RPM)	30
Rated Torque with gearbox (N.M)	38
Power (W)	119
Insulation class	B

Mechanical Dimension

57BL643-001AG125 Nema23 Brushless Gearbox Motor 24V 125:1 38N.M 30rpm 0

High-quality Raw Materials


​Brushless Motor Final Inspection

			Measure the Motor Length
			Measure the Shaft Length
			Measure the Ouler Circle

			Measure the Screw Hole Distance
			Measure the Length of Wire
			Measure the Length of PVC

			Test the Resistance
			Listening
			Test the speed

CNC Center

Package&Delivery

57BL643-001AG125 Nema23 Brushless Gearbox Motor 24V 125:1 38N.M 30rpm 8

57BL643-001AG125 Nema23 Brushless Gearbox Motor 24V 125:1 38N.M 30rpm 9

Certification of Hetai

57BL643-001AG125 Nema23 Brushless Gearbox Motor 24V 125:1 38N.M 30rpm 10
