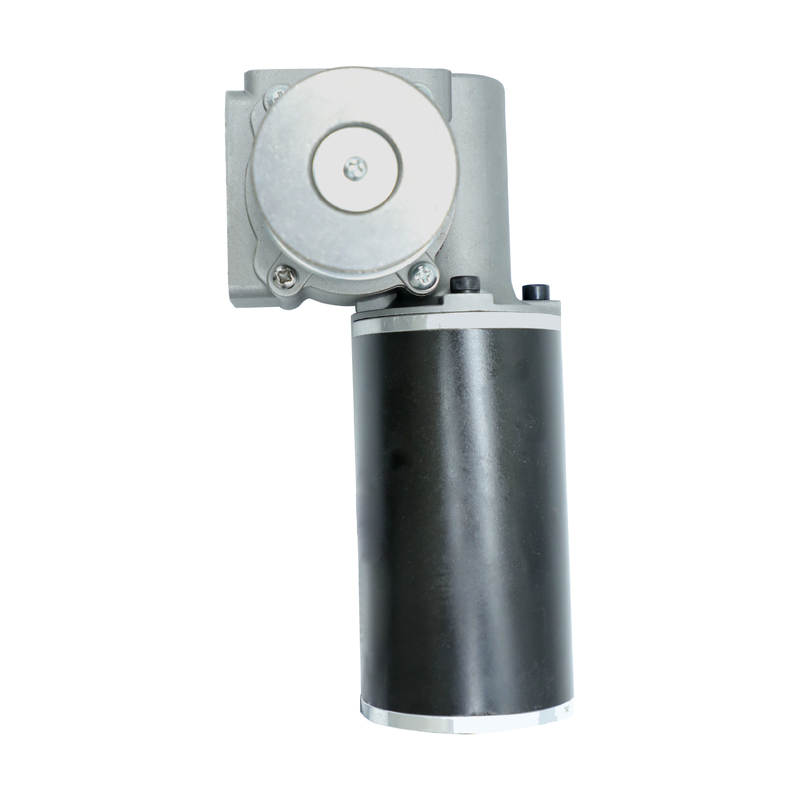

63BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W

Place of Origin China
Brand Name Hetai
Certification CE ROHS ISO
Model Number 63BLX01A-001WG15(Wheeled)
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name DC Worm Gear Motor Nominal Voltage 36 V
Rated Speed 220 RPM Reduction Ratio 1:15
No-load Current 1 A Resistance 0.65
Rated Torque With Gearbox 3.5 N.M Application Wheel Drive, AGV Trolley
Certification CE ROHS ISO
High Light

220rpm DC Worm Gearbox Motor

,

Worm Gearbox Motor 1A 36V

,

Worm Gear Motor 114W

Leave a Message
Product Description

63BLX01A-001WG15 with wheels 220rpm 1A 36V 114W DC worm gearbox motor

Advantages of worm gear reducer:

1. The structure of the worm gear reducer is integrated, with beautiful appearance and good rigidity.

2. There are two types of cabinets: basic type (the cabinet is a vertical or horizontal structure with a foot plate) and the all-round type (the box is a cuboid, with fixed screw holes on multiple sides, without a foot plate or an additional bottom.

3. There are two types of input shaft connection: basic type (single input shaft and double input shaft), and motor flange.

4. There are two types of output shaft structure: basic type (single output shaft, double output shaft) and hollow output shaft.

5. The direction of the position of the output and input shafts is that the input shaft is down and up; the output shaft is up and down; the input shaft is up and down.

6. Two or three reducers can be used to form a multi-stage reducer to obtain a large transmission ratio. Installation type and output method: base type, flange type and torque arm type installation, solid shaft and hollow shaft output and worm direct output.


Electrical Specification:

Product Name
DC Worm Gear motor
Model
63BLX01A-001WG15(Wheeled)
Reduction Ratio
1:15
Voltage (V)
36 V
Rated Speed with gearbox (RPM)
220
Rated Torque with gearbox (N.M)
3.5
Power (W)
114
Insulation class
B


Mechanical Dimension
63BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 0


Product Range

63BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 1

Stepping Motor & Planetary Gearbox Motor & DC Brushless Motor & Servo Motor


Hetai Motor Production Process
63BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 2

High-quality Raw Materials

63BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 3



​Brushless Motor Final Inspection

63BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 4
Measure the Motor Length Measure the Shaft Length Measure the Ouler Circle
63BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 5
Measure the Screw Hole Distance Measure the Length of Wire Measure the Length of PVC
63BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 6
Test the Resistance Listening Test the speed



Automatic assembly line

63BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 7



Professional motor testing equipment

63BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 863BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 9



Package&Delivery

63BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 10

63BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 11



Certification

63BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 1263BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 1363BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 1463BLX01A-001WG15 Wheels 220rpm DC Worm Gearbox Motor 1A 36V 114W 15
