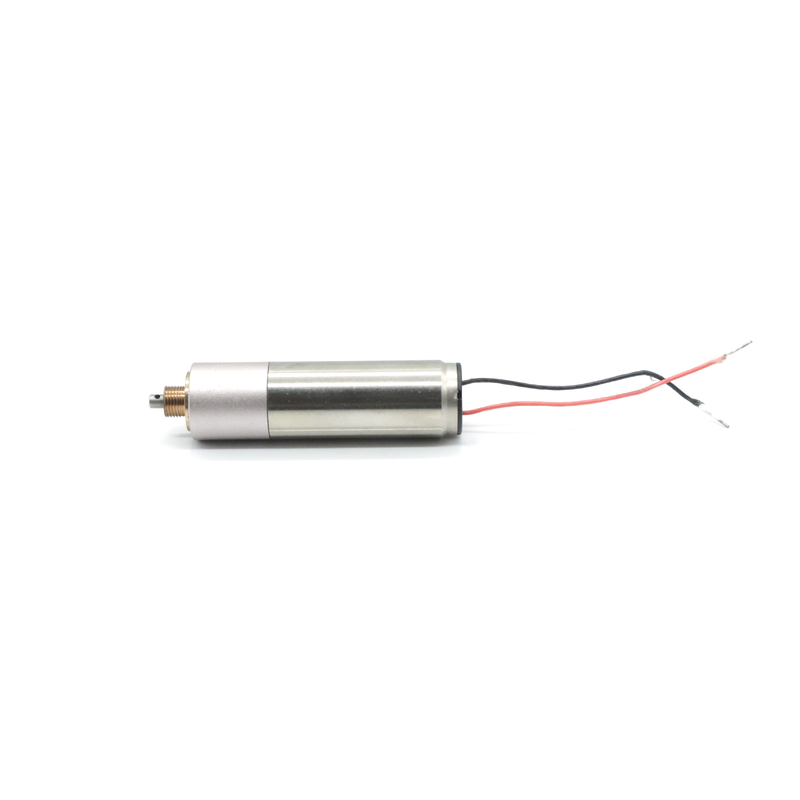

13PG1332-03017556-16K Micro Planetary Reducer Gearbox Motor 1000rpm 3V 2W

Name: 13PG1332-03017556-16K Micro Planetary Reducer Gearbox Motor 1000rpm 3V 2W
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: 13PG1332-03017556-16K
Availability: InStock

Brand Name:	He Tai
Model Number:	13PG1332-03017556-16K
MOQ:	50
Price:	USD
Delivery Time:	28-31 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

DC Brush Gear Motor

Rated Voltage:

No-load Current:

≤130mA

No-load Speed:

1094±3%RPM

Rated Speed:

1000±15%rpm

Reduction Ratio:

1:16

Rated Torque::

20g.cm

Rated Current:

≤1300mA

Motor Length:

44.5 ±0.5

Protect Feature:

IP40

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

1000 PCS/MONTH

Highlight:

Micro Planetary Reducer Gearbox Motor

Planetary Reducer Gearbox Motor 1000rpm

3V 2W Brush Gear Motor

Product Description

Hetai New Product 13PG1332-03017556-16K 1000rpm 3V 2W Micro Planetary Reducer Motor

What is Brushed DC motor?
Brushed DC motors are one of the simplest types of DC motor. It uses brushes to deliver current to the motor windings through mechanical commutation.
The number of coils wound around the motor and the density of the coils determine the properties of the motor. The armature or rotor is an electromagnet. The field magnet is a permanent magnet. This motor does not require any controller to operate or vary the speed.

Technical requirements:

1. Rated voltage:3V,Rated torque:20g.cm;

2. No-load speed:1094±3%rpm,No-load current:≤130mA

3. Rated Speed:1000±10%rpm,Rated current:≤1300mA

4. Starting current:≤0.8A

5. Reduction ratio:1:16

6. Parts are RoHS compliant.

Mechanical Dimension

13PG1332-03017556-16K Micro Planetary Reducer Gearbox Motor 1000rpm 3V 2W 0

13PG1332-03017556-16K Micro Planetary Reducer Gearbox Motor 1000rpm 3V 2W 1

Changzhou Hetai Motors

Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.

Experienced Manufacturer
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range Of HeTai

Our main products are Stepper Motor, Planetart Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Market Range Of HeTai

13PG1332-03017556-16K Micro Planetary Reducer Gearbox Motor 1000rpm 3V 2W 3

Production Process Of HeTai

13PG1332-03017556-16K Micro Planetary Reducer Gearbox Motor 1000rpm 3V 2W 4

Apply in Root Canal Therapy Equipment

Automatic Assembly Line

13PG1332-03017556-16K Micro Planetary Reducer Gearbox Motor 1000rpm 3V 2W 7

Hetai has several sophisticated instruments and equipment,such as Laboratory,Rotor Grinding Outer Circle,CNC Center.We also have several fully automatic modern assembly lines and several test workshops.

Packing&Delivery

13PG1332-03017556-16K Micro Planetary Reducer Gearbox Motor 1000rpm 3V 2W 8

Certification Of DC Brush Gear Motor
