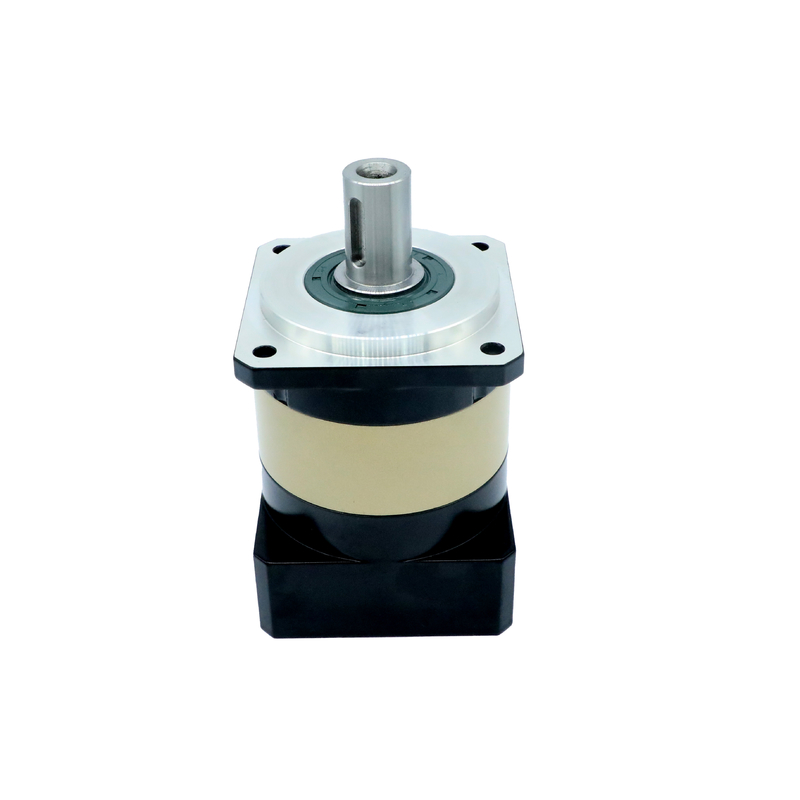

TB42 Efficient Planetary Reducer Gearbox with Less Than 5 Arcmin Backlash

Product Description:

Our Planetary Reducer Gearbox is designed to provide maximum efficiency and reliability with low noise and vibration. It is suitable for a wide range of applications, such as manufacturing, automotive, marine, and agriculture. The gearbox is equipped with high-precision gears and is capable of providing a backlash of less than 5 arcmin. It has a noise level of less than 65dB, and a vibration level of less than 5mm/s. The gearbox can be cooled by air cooling or oil cooling, depending on the specific application.

Our Planetary Reducer Gearbox is designed to provide high performance and durability. It is made of high-grade materials and undergoes rigorous quality control tests to ensure that it performs reliably and consistently. The gearbox is suitable for a wide range of applications and is easy to install and maintain. It is an ideal choice for those looking for a reliable and high-precision gearbox.



Features:

• Product Name: Planetary Reducer Gearbox
• Efficiency: Up To 97%
• Noise Level: Less Than 65dB
• Temperature: -10℃~+90℃
• Output Torque: Up To 588N.m
• Lifetime: 15000(S1), 30000(S5)



Technical Parameters:

SPECIFICATION
SPEC			Stage		Ratio	TB042		TB060		TB090		TB115		TB142
						TE050		TE070		TE090		TE120		TE150
Rate output torque. T2n(N-M)			1		3	18		42		117		187		351
					4	16		45		126		261		516
					5	16		48		141		311		588
					7(8)*	15		45		117		277		539
					10	12		36		114		242		505
			2		15	18		42		117		187		351
					20	16		45		126		261		516
					25	16		48		141		311		588
					30	18		42		117		187		351
					35	16		48		141		311		588
					40	16		45		126		261		516
					50	16		48		141		311		588
					70	15		45		117		277		539
					100	12		36		114		242		505
Emergrncy Stop Torque T2not (N-M)(1)			1,2		3~100	3 times of Rate output torque
Rate Input Speed n	rpm		1,2		3~100	3,000		3,000		3,000		2,000		2,000
Max.Inptut Speed n	rpm		1,2		3~100	5,000		5,000		5,000		4,000		3,000
Service Life **	hr		1,2		3~100	15000(S1),30000(S5)
Operaring Temp	℃		1,2		3~100	-10℃~+90℃
Protection			1,2		3~100	IP65
Lubrication			1,2		3~100	Synthetic grease
Mounting Position			1,2		3~100	Any direction
Running Noise	dB(2)		1,2		3~100	≦60		≦60		≦63		≦63		≦65
Effciency	%		1		3~10	≧97%
			2		15~100	≧95%



Mechanical Drawing

DIAMETER	Dimennsion	TB042		TB60		TB90		TB115		TB142
		1-stage	2-stage	1-stage	2-stage	1-stage	2-stage	1-stage	2-stage	1-stage	2-stage
	D1	50		70		100		130		165
	D2	3.4		5.5		6.5		9		11
	D3	56		80		116		152		185
	D4	35		50		80		110		130
	D6	13		16		22		32		40
	D7	M4X0.7P		M5X0.8P		M8X1.25P		M12X1.75P		M16X2P
LENGTH	L1	42		60		90		115		142
	L2	88	114	117.5	153.1	158	213.9	199	255.5	270	339.5
	L3	26		37		48		65		91
	L4	5.5		7		10		12		15
	L5	1		2		1.5		2		3
	L6	10		12.5		25		28		36
	L7	5.5		4.5		8		10		12
	L8	16		25		30		40		60
WIDTH	W1 h9	5		5		6		10		12
HEIGH	H1	15		18		24.5		35		43
CUSTOMER SIZE	C1	42		60		80		115		142
	C2	46		70		90		130		165
	C3	30		50		70		110		130
	C4	M4X0.7P		M5X0.8P		M6X1P		M8X1.25P		M10X1.5P
	C5	<12		<16		<24		<32		<38
	C6	26		34.5		41		53		63
	C7	8.75		13.5		9.75		13		15
	C8	3.5		8		4		5		6
	C9	26		19		17		19.5		22.5



Applications:

Hetai's TB42 Planetary Reducer Gearbox is a high precision and durable gearbox designed to meet the demands of a wide variety of applications. The TB42 has a strong steel material construction and is suitable for input speeds of 3000-5000rpm. It features an impressive backlash of less than 5 arcmin which allows for precise control and movement. The TB42 is available in a range of ratios from 3 to 100 and can be cooled using either air or oil cooling. It is certified with both CE and ISO and a minimum order quantity of 50. The TB42 is an ideal choice for various applications, including industrial automation, robotics, medical technology, aerospace, and more.



Customization:

Planetary Reducer Gearbox
Brand Name: Hetai
Model Number: TB42
Place of Origin: Changzhou
Certification: CE ISO
Minimum Order Quantity: 50
Ratio: 3-100
Input Speed: 3000-5000rpm
Output Torque: Up To 588N.m
Cooling Method: Air Cooling, Oil Cooling
Material: Steel
Highlights: Our Planetary Reducer Gearbox is a reliable and powerful solution for industrial applications. It features a 3-100 ratio, input speed up to 5000RPM, and output torque up to 588N.m. It is made of steel and is available with air cooling and oil cooling methods. It is CE and ISO certified and has a minimum order quantity of 50.
