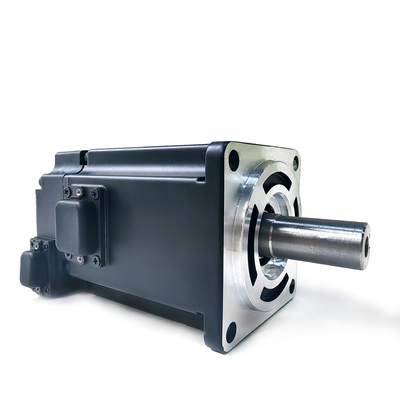

3000 Rpm 1.27 Nm 400W 80mm Diameter Waterproof Servo Motor For Cnc
| Place of Origin | China |
|---|---|
| Brand Name | Hetai |
| Certification | CE ROHS ISO |
| Model Number | TS8005A |
| Minimum Order Quantity | 50 |
| Packaging Details | Foam box plus cardboard box |
| Delivery Time | 30 days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Speed | 3000 Rpm | Rated Voltage | 310 |
|---|---|---|---|
| Rated Torque | 2.4 Nm | Power | 750W |
| Rated Current | 4.8 A | Insulationclass | F |
| Diameter | 80mm*80mm | IP | IP65 |
| Operating Temperature | 0-55°C | Encoder Type | 17 Bit |
| Highlight | 80mm Diameter waterproof servo motor,400W waterproof servo motor,1.27 Nm waterproof servo motor |
||
Product Description
Product Description:
High performance:
The TS6005A AC servo motor is an ideal choice for high-precision applications, with a speed of up to 3000 Rpm. Additionally, it provides a rated torque of 2.4 Nm, making it suitable for high-precision applications that require precise and consistent control. With a working temperature range of 0-55°C, this AC servo motor can reliably operate even in challenging environments.
Fast Response:
80 servo motors have a fast response speed, and can quickly adjust and track changes in the control signal to achieve fast and accurate movements.
Versatility:
The 80 servo motor uses advanced control algorithms and closed-loop systems to achieve high precision position, speed and torque control. This makes it ideal for applications that require precise motion control, such as robotics and CNC machine tools.
80 servo motors can be customised and configured to meet the needs of different applications, providing a high degree of adaptability and flexibility. They can be used with a variety of control systems and sensors to achieve a wide range of complex motion control tasks.
Mechanical Dimension
Technical Parameters:
| Rated Voltage | 310V |
| Power | 750W |
| Warranty | 1Year |
| Operating Temperature | 0-55°C |
| Rated Torque | 2.4Nm |
| Rated Current | 4.8A |
| Speed | 3000 Rpm |
| Insulation Class | F |
| Diameter | 80mm*80mm |
| Lenght | 100mm |
| Maximum Torque | 7.2NM |
| ResisTance Line-line | 1Ω |
|
Inductance Line-line
|
3.9MH |
|
Torque Constant
|
0.51(Nm/A) |
|
Rotor Inertia
|
1.49*10-4(Kg.cm2) |
| Weight | 2.4KG |
| Feedback Device | 17BIT |
| Protecton level | IP65 |
| -- | -- |
This AC Servo Motor product has high voltage,750w power, and high torque with a rated torque of 2.4 Nm.
Applications:
Furthermore, Hetai AC servo motors have obtained CE, ROHS, and ISO certifications, ensuring compliance with international quality standards. With a minimum order quantity of 50 units and a delivery time of 30 days, they are a convenient choice for large-scale industrial applications due to their meticulous packaging.
The TS8005A AC servo motor finds extensive applications in various fields, including robotics, CNC machine tools, printing machines, and packaging machines. Its high voltage and power make it highly suitable for applications requiring high torque and precise control.
With its compact size and reliable performance, this AC servo motor contributes to improving the efficiency and productivity of various industrial processes.
