Integrated NEMA 17 Stepper Motor Controller Module 2 Phase Parallel Interface

Name: Integrated NEMA 17 Stepper Motor Controller Module 2 Phase Parallel Interface
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: HTD421
Availability: InStock

Brand Name:	Hetai
Model Number:	HTD421
MOQ:	50
Price:	USD
Delivery Time:	28-31
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Stepping Motor Driver

Power Supply:

3.3V-5V Or 12V-24V

Output Motor Current:

Peak 2A

Working Temperature:

0℃~+40℃

StorageTemperature:

-10℃~70℃

Drive Method:

Constant Current PWM Control

Optional Subdivision:

Microstep 1/2/4/8/16/32

Length:

34/40/48/60mm

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

10000 pcs/month

Highlight:

Integrated Stepper Motor Driver

Nema 17 Stepper Motor Driver

Nema 17 Stepper Motor Controller

Product Description

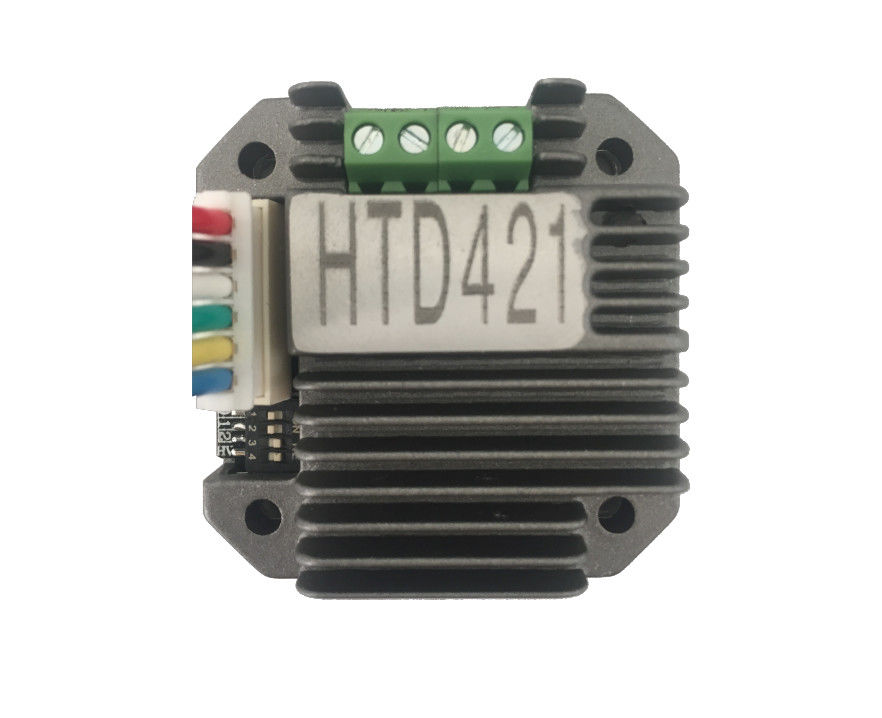

HTD421 2 phase Parallel interface driver Integrated Driver for NEMA 17 stepper motor

Product Feature

Miniature design, convenient installation, can be integrated with 42 stepper motors

- Heat-dissipated cast aluminum enclosed housing

- Automatic half current when stopped running

- Parallel interface high-speed photoelectric isolation, compatible with 3.3-5V and 12-24V logic levels 2A continuously adjustable

- Microstep 1/2/4/8/16/32 optional subdivision

Product Parameter

POWER SUPPLY		DC 12V-DC 35V/2A, DC 24V is recommended
Parallel interface	VCC	Power supply. DIP switch selection 3.3V-5V or 12V-24V
	DIR	0V or VCC. Current:8mA@3.3V/8mA@12V/15mA@5V/18mA@24V
	STP	0V or VCC. Current:8mA@3.3V/8mA@12V/15mA@5V/18mA@24V Frequency 0-20KHz
	EN	0V or VCC. Current:8mA@3.3V/8mA@12V/15mA@5V/18mA@24V Frequency 0-20KHz

Output Motor current	Peak 2A (single-phase maximum), actual use 0-2A adjustable
Drive Method	Constant current PWM control
Drive Subdivision	DIP switch setting selection 1, 2, 4, 8, 16, 32
Insulation resistance	> 100M－ at normal temperature and pressure
Dielectric strength	0.5KV, 1 minute at normal temperature and pressure
Protection	Input reverse connection, overload, drive overheat, drive overcurrent

The driver has the same hole position and size as the 42 stepper motor.

Electrical Interface

Integrated NEMA 17 Stepper Motor Controller Module 2 Phase Parallel Interface 0

Diver dimension

Integrated NEMA 17 Stepper Motor Controller Module 2 Phase Parallel Interface 1

Wiring

Integrated NEMA 17 Stepper Motor Controller Module 2 Phase Parallel Interface 2

Driver installation diagram

Integrated NEMA 17 Stepper Motor Controller Module 2 Phase Parallel Interface 3

Product Advantage

The advantages of integrated motors include ease of layout, reduced wiring complexity, faster system setup and construction, and motor driver compatibility. In addition, an integrated unit with an integrated control system is also provided.

The benefits of the integrated motor and drive units include ease of implementation, reduced wiring complexity, faster setup and construction of a system, and guaranteed motor-drive compatibility. Additionally, integrated units that incorporate systems on a chip (SoC) are also available.
