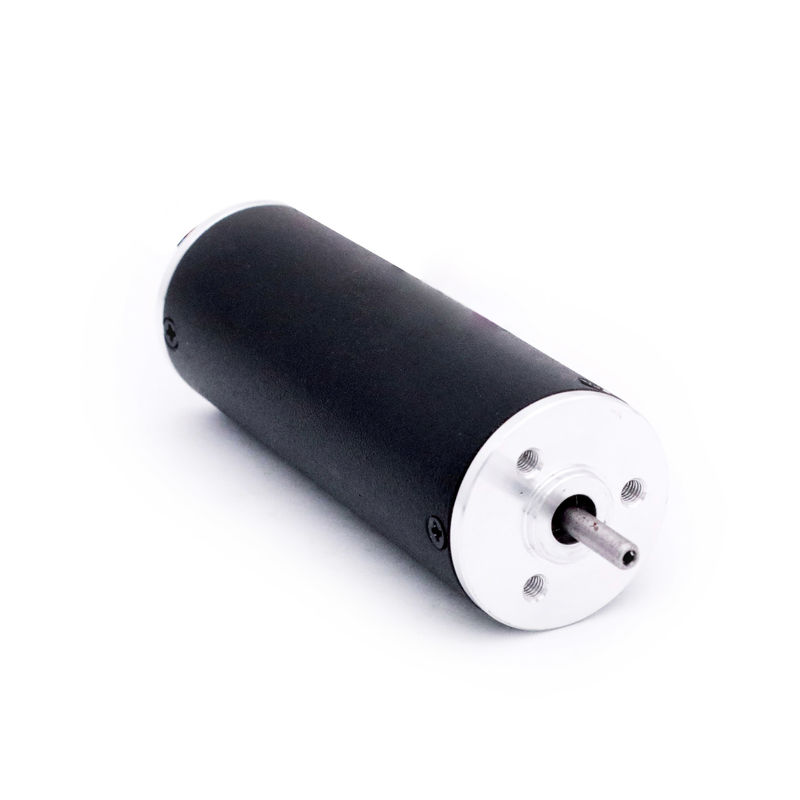

24V 12v Brushless Dc Motor Nema 11 28mm Three Phase
| Place of Origin | China |
|---|---|
| Brand Name | Hetai |
| Certification | CE ROHS ISO |
| Model Number | 28BL |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Brushless DC Motors | Winding Type | Star |
|---|---|---|---|
| Hall Effect Angle | 120° Electrical Angle | Insulation Class | B |
| Ambient Temperature | -20℃~+50℃ | Insulation Resistance | 100MΩ Min.500VC DC |
| Dielectric Strength | 600VAC 1 Minute | MAX Radial Force | 15N (10mm From Front Flange) |
| MAX Axial Force | 10N | Protection Level | IP40 |
| High Light | Brushless Motor Dc 12v Nema 11 28mm,Bldc Motor 24v Nema 11 28mm,Nema 11 Three Phase Brushless Motor |
||
Product Description
28BL series 3 phase nema11 12V/24V 3000RPM brushless dc motors
PRODUCT DETAILS
| Product Name | Brushless DC Motors | Winding Type | Star |
|---|---|---|---|
| Hall Effect Angle | 120° Electrical Angle | Insulation Class | B |
| Ambient Temperature | -20℃~+50℃ | Insulation Resistance | 100MΩ Min.500VC DC |
| Dielectric Strength | 600VAC 1 Minute | MAX Radial Force | 15N (10mm From Front Flange) |
| MAX Axial Force | 10N | Protection Level | IP40 |
For the 28BL series, it is lightweight and space-saving, very suitable for those who are tight in install space.
Electrical Specification:
| Model | ||||
| Specification | Unit | 28BL01F | 28BL02A-001 | 28BL03E-001 |
| Number Of Phase | Phase | 3 | ||
| Number Of Poles | Poles | 4 | ||
| Rated Voltage | VDC | 12 | 24 | |
| Rated Speed | Rpm | 3000 | ||
| Rated Torque | N.m | 0.015 | 0.02 | 0.05 |
| Rated Power | W | 4.7 | 6.3 | 15.7 |
| Peak Torque | N.m | 0.045 | 0.06 | 0.15 |
| Peak Current | Amps | 1.80 | 1.07 | 2.88 |
| Torque Constant | N.m/A | 0.025 | 0.056 | 0.052 |
| Body Length | mm | 40.5 | 53 | 78 |
| Weight | Kg | 0.15 | 0.20 | 0.25 |
| ELECTRICAL CONNECTION TABLE | ||
| FUNCTION | COLOR | |
| +5V | RED | UL1007 26AWG |
| HALL A | GREEN | |
| HALLB | BLUE | |
| HALLC | WHITE | |
| GND | BLACK | |
| PHASE A | ORANGE | |
| PHASE B | YELLOW | |
| PHASE C | BROWN | |
***Note: The products can be customized by your request. Please contact us for more details.
*Products can match gearbox 28mm
The ADVANTAGE of BLDC motor:
- Brushless motors have significantly higher efficiency and performance and lower susceptibility to mechanical wear than their brushed counterparts.
- It has a long life, low maintenance, quiet operation, and variable speed ability of an AC motor.
- The high starting torque and linear speed-torque curve of a DC motor; and like both AC & DC motors, it works well with gearboxes. Brushless DC motors have a high power density.
- They have the best efficiency rating of 65 to 80 percent.
FAQ
1. Are you a factory?
Yes, we are a factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in
China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.
2. Can I test the sample?
Yes, samples and freight are charged.
3. Can I get a Customized product?
Sure, all the products can be customized based on special requests.
4. How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
5. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
6. Is this your final price? May I have the discount?
Our price is the factory price. If you have a large quantity, we can negotiate about the discount.
7. What is the Warranty for your products?
Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
