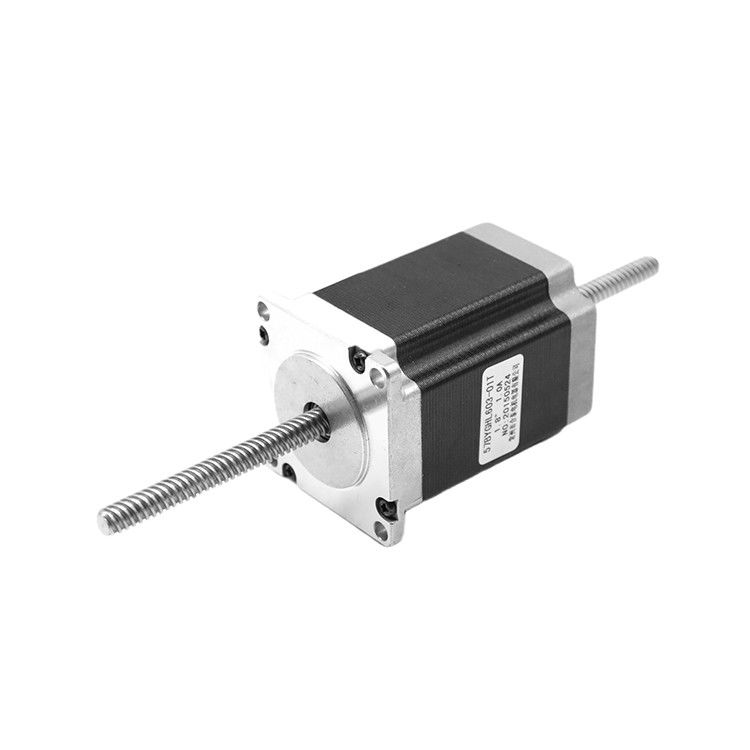

57BYGH Nema 23 Linear Actuator With Stepper Motor

  • 57BYGH Nema 23 Linear Actuator With Stepper Motor
  • 57BYGH Nema 23 Linear Actuator With Stepper Motor
  • 57BYGH Nema 23 Linear Actuator With Stepper Motor
  • 57BYGH Nema 23 Linear Actuator With Stepper Motor
  • 57BYGH Nema 23 Linear Actuator With Stepper Motor
Place of Origin China
Brand Name Hetai
Certification CE ROHS ISO
Model Number 57BYGHL
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Linear Step Motor Step Angle 1.8 °
Step Accuracy ± 5% Temperature Rise 80 ℃ Max
Ambient Temperature -20℃~+50℃ Insulation Resistance 100MΩ Min.500VC DC
Dielectric Strength 500VAC 1 Minute MAX Radial Force 75N (10mm From Front Flange)
MAX Axial Force 15N
High Light

Small Linear Stepper Motor

,

Motorized Lead Screw Actuator

,

Nema Linear Actuator
Leave a Message
Product Description

57BYGHL series NEMA 23 1.8 degree high torque linear step motor



The Features of the linear step motor

Engineers most commonly use these linear actuators in larger installations; on axes that move heavier loads, and in high-end medical or material-handling applications such as pick-and-place machinery that require extremely high precision. Like rotary equivalents, linear stepper motors either use a variable reluctance (just described) or a hybrid mode of operation. A hybrid linear-stepper platen is like that of a variable-reluctance linear stepper. In contrast, the forcer has multiple permanent magnets, magnetic U-shaped cores (with coils around them), and a steel yoke.



Electrical Specification



MODEL STEP ANGLE
(°/STEP)		 LEAD WIRE
(NO.)		 VOLTAGE
(V)		 CURRENT
(A/PHASE)		 RESISTANCE
(Ω/PHASE)		 INDUCTANCE
(MH/PHASE)		 HOLDING TORQUE
(KG.CM)		 MOTOR HEIGHT
L(MM)		 MOTOR WEIGHT
(KG)
57BYGHL013-15 1.8 4 2.7 1.5 1.8 4.0 4.0 41 0.45
57BYGHL216-10 1.8 4 3.3 1.7 1.95 6.0 10.0 51 0.65
57BYGHL401-03 1.8 4 6.0 0.6 10.0 32.0 9.0 56 0.70
57BYGHL602-07 1.8 4 10.4 0.8 13.0 42.0 19.8 78 1.00
57BYGHL815-01 1.8 4 7.36 1.6 4.6 16.0 20.0 84 1.13



57BYGH Nema 23 Linear Actuator With Stepper Motor 057BYGH Nema 23 Linear Actuator With Stepper Motor 1

Wiring Diagram

57BYGH Nema 23 Linear Actuator With Stepper Motor 2











***Note: The products can be customized by your request. Please contact us for more details.





Tags:

ball screw linear stepper motor

micro stepper motor lead screw

Nema 17 Linear Stepper Motor 42bygh
