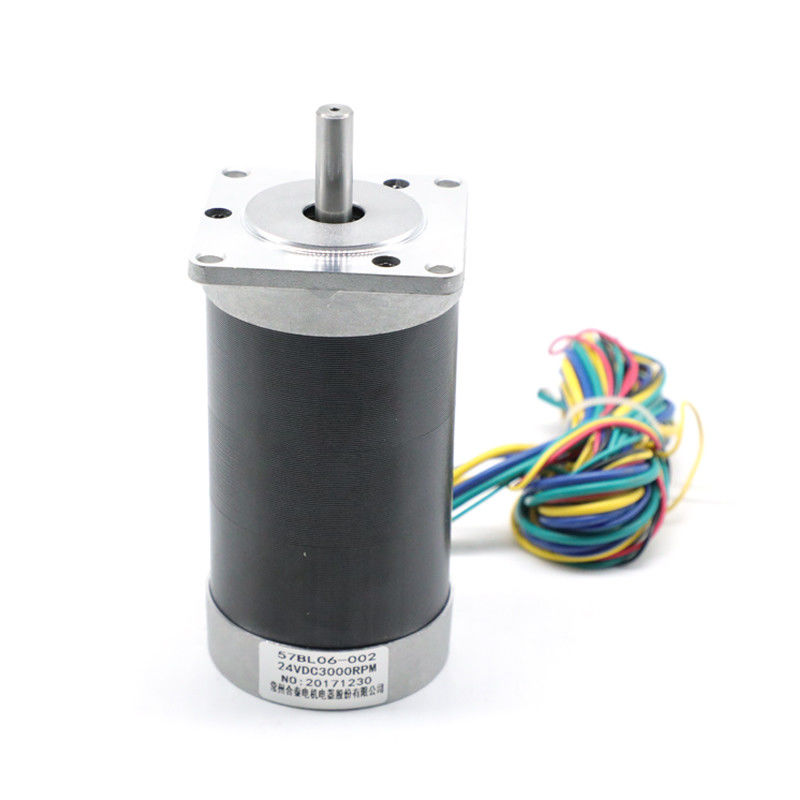

Nema 23 Brushless DC Motor With Built In Driver

Place of Origin China
Brand Name Hetai
Certification CE ROHS ISO
Model Number 57BL631
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Brushless DC Motors Driver Part Number SUNMOTOR34-02
Winding Type Star Hall Effect Angle 120° Electrical Angle
Insulation Class B Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩ Min.500VC DC Dielectric Strength 600VAC 1 Minute
MAX Radial Force 75N (10mm From Front Flange) MAX Axial Force 15N
High Light

brushless dc motor nema 23

,

brushless motor with built in driver

,

bldc motor nema 23

Leave a Message
Product Description

57BL631 57series 3 phase nema23 1300RPM Built-in Drive Brushless DC Motor

57BL series built-in drive brushless motor, it is more cost-effective & convenient for the user, which also increases the reliability.



Built-in drive indicators:

1. Input voltage range: 12V~40V;

2. Maximum continuous output current: 10A;

3. Hall BLDC motor control;

4. Maximum speed 5000rpm;

5. Speed regulation mode: PWM/5V analog signal;

6. Control signal: brake/reversing/speed pulse output;

7. Size: diameter 57mm, height 30mm.



Electrical Specification:



    Model
Specification Unit 57BL631
Number Of Phases Phase 3
Number Of Poles Poles 4
Nominal Voltage VDC 30
Rated Speed Rpm 1300±300RPM
Rated Torque N.m 0.44
Rated Power W 60W
No-load speed Rpm 2100
No-load Current Amps 1.00
Torque Constant N.m/A 0.136
Back EMF Constant V/kRPM 14.2
Body Length mm 138±1
Weight Kg 0.15



*Products can be customized with special requests.

*Products can match gearbox 42, 52, 56, 63mm



Mechanical Dimension

Nema 23 Brushless DC Motor With Built In Driver 0

ELECTRICAL CONNECTION TABLE
FUNCTION COLOR
+24V RED UL1015 20AWG
GND BLACK


***Note: The products can be customized by your request. Please contact us for more details.



Product Advantage



-Wide Speed Ratio with a Long Service Lifespan

-Easy to install and operate

-Higher efficiency and reliability
