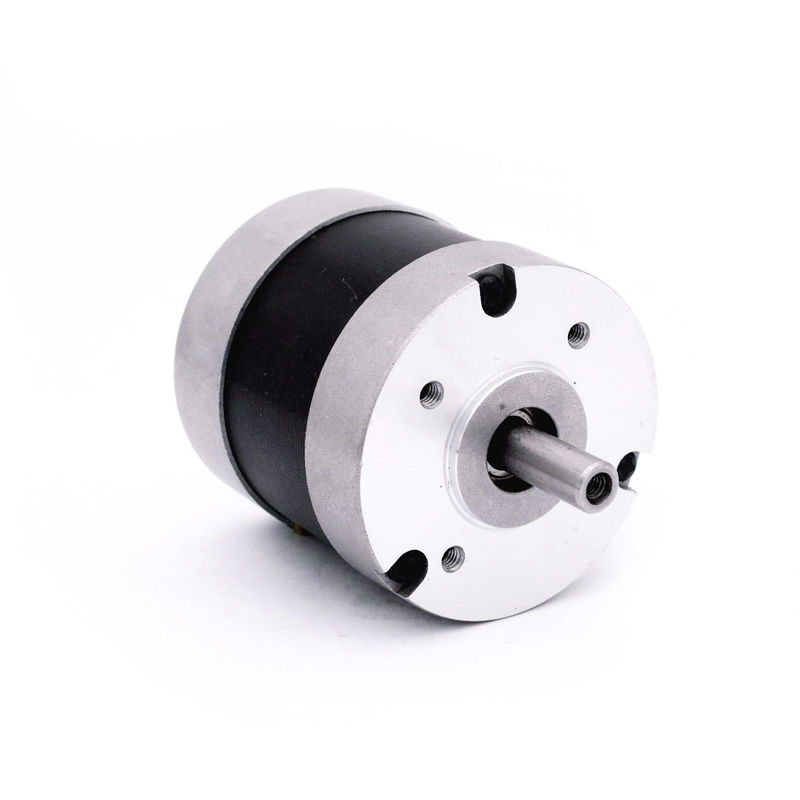

57mm 24v 4 Pole Micro Bldc Motor 2500 Rpm 138W 1.32NM
| Place of Origin | China |
|---|---|
| Brand Name | HeTai |
| Certification | CE ROHS ISO |
| Model Number | 57BL |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Brushless DC Motor | Winding Type | Star |
|---|---|---|---|
| Hall Effect Angle | 120° Electrical Angle | Insulation Class | B |
| IP Level | IP40 | Insulation Resistance | 100MΩ Min.500VC DC |
| Dielectric Strength | 600VAC 1 Minute | Ambient Temperature | -20℃~+50℃ |
| Max Radial Force | 75N (10mm From Front Flange) | Max Axial Force | 15N |
| Highlight | Micro Bldc Motor 2500Rpm 57mm 1.32NM,4 Pole Micro Bldc Motor 1.32NM,24v dc motor 2500 rpm 1.32NM |
||
Product Description
57BL 138W micro 1.32N.M CE ROHS ISO customization bldc motor brushless
57BL series is a type of BLDC motor with a cylindrical body. The speed is ranging from 2500 rpm-3000rpm, and the rated torque is from 0.057 to 0.44 NM.
| Product Name | Brushless DC Motor | Winding Type | Star |
|---|---|---|---|
| Hall Effect Angle | 120° Electrical Angle | Insulation Class | B |
| IP Level | IP40 | Insulation Resistance | 100MΩ Min.500VC DC |
| Dielectric Strength | 600VAC 1 Minute | Ambient Temperature | -20℃~+50℃ |
| Max Radial Force | 75N (10mm From Front Flange) | Max Axial Force | 15N |
Electrical Specification:
| Model | Model | Model | Model | Model | Model | ||
| Specification | Unit | 57BL01G | 57BL02A | 57BL03B | 57BL04A | 57BL05A | 57BL06 |
| Number Of Phases | Phase | 3 | 3 | 3 | 3 | 3 | 3 |
| Number Of Poles | Poles | 4 | 4 | 4 | 4 | 4 | 4 |
| Rated Voltage | VDC | 24 | 24 | 24 | 24 | 24 | 24 |
| Rated Speed | Rpm | 2500 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Rated Current | A | 0.77 | 1.87 | 3.17 | 3.67 | 5.33 | 7.00 |
| Rated Torque | N.m | 0.057 | 0.11 | 0.18 | 0.22 | 0.33 | 0.44 |
| Rated Power | W | 15 | 34.5 | 56 | 69 | 104 | 138 |
| Peak Torque | N.m | 0.17 | 0.33 | 0.54 | 0.66 | 0.99 | 1.32 |
| Peak Current | Amps | 2.3 | 5.6 | 9.5 | 11 | 16 | 21 |
| Torque Constant | N.m/A | 0.074 | 0.059 | 0.057 | 0.060 | 0.062 | 0.063 |
| Back EMF constant | V/kRPM | 7.75 | 6.2 | 5.9 | 6.3 | 6.5 | 6.6 |
| Body Length | mm | 41.5 | 46.5 | 56.5 | 66.5 | 86.5 | 106.5 |
| Weight | Kg | 0.35 | 0.44 | 0.56 | 0.67 | 0.95 | 1.18 |
*Products can match gearbox 42,52,56
*Products can be customized by special request.
Wiring Diagram
| FUNCTION | COLOR | ||
| +5V | RED | UL1007 26AWG | |
| HALL A | YELLOW | ||
| HALLB | GREEN | ||
| HALLC | BLUE | ||
| GND | BLACK | ||
| PHASE A | YELLOW | UL1015 20AWG | |
| PHASE B | GREEN | ||
| PHASE C | BLUE | ||
Mechanical Dimension
Based on all these advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors, and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia, and all-around China.
A BLDC motor takes the advantages from AC, DC and Universal motor types and combines them into one unit. It has the long life, low maintenance, quiet operation, and variable speed ability of an AC motor; the high starting torque and linear speed-torque curve of a DC motor; and like both AC & DC motors, it works well with gearboxes. Brushless DC motors have a high power density, second only to the Universal motor, and they have the best efficiency rating of 65 to 80 %.
