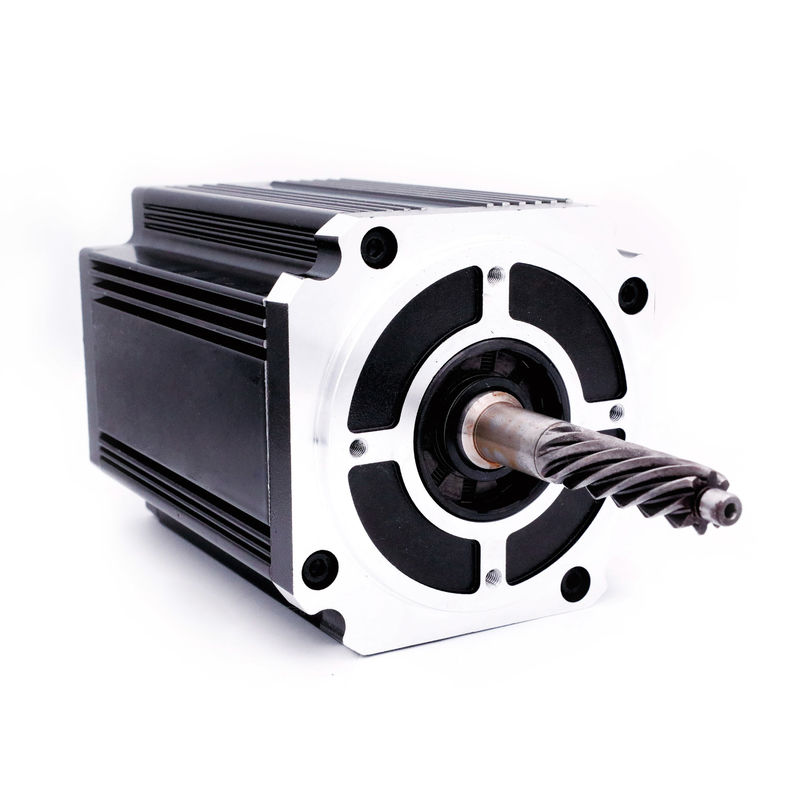

110mm Nema 42 Brushless Dc Motor 310v

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 110BLF
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 25 DAYS
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Brushless DC Motor Rated Voltage 310VDC
Dielectric Strength 1500VAC 1 Minute Hall Effect Angle 120° Electrical Angle
Insulation Class B Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩ Min.500VC DC Winding Type Star
Max Radial Force 330N (10mm From Front Flange) Max Axial Force 100N
High Light

dc310v 110mm Nema 42 blDc Motor

,

dc310v nema 42 brushless motor

,

nema 42 dc310v brushless motor

Leave a Message
Product Description

110BLF high-performance NEMA 42 brushless 3 phase 3.5-6.5NM dc motor 310V



The 110BLF brushless motors are 310V, 3000 rpm, and power ranging from 1kw to 2kw. The 110BL series is 3 phase motor with 8 poles, the output power is from 1kw to 2kw.

The primary usage of such bldc motors is for motion control, positioning, or actuation systems. Brushless motors are ideally suited for manufacturing applications because of the following advantage:



High efficiency

High power density

Good speed-torque characteristics

Adjustable wide speed ranges

Low maintenance



Electrical Specification

    Model Model Model
Specification Unit 110BLF01 110BLF02 110BLF03
Number Of Phases Phase 3 3 3
Number Of Poles Poles 8 8 8
Rated Voltage VDC 310 310 310
Rated Speed Rpm 3000 3000 3000
Rated Current A 4.72 6.10 8.77
Rated Torque N.m 3.5 4.5 6.5
Rated Power W 1100 1413 2040
Peak Torque N.m 10.5 13.5 19.5
Peak Current Amps 14.0 18.3 26.3
Torque Constant N.m/A 0.74 0.74 0.74
Back EMF constant V/kRPM 77.5 77.5 77.5
Body Length mm 156.0 177.0 216.0
Weight Kg 5.08 6.06 7.88

*Products can be customized by special request.



 Wiring Diagram

FUNCTION COLOR
+5V RED UL1007 26AWG
HALL A YELLOW
HALLB GREEN
HALLC BLUE
GND BLACK
PHASE A YELLOW UL1330 16AWG
PHASE B GREEN
PHASE C BLUE

Mechanical Dimension


110mm Nema 42 Brushless Dc Motor 310v 0

FAQ

1. Are you a factory?

Yes, we are a factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in

China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.



2. Can I test the sample?

Yes, samples and freight are charged.



3. Can I get a Customized product?

Sure, all the products can be customized based on special requests.



4. How do you ship the goods?

We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.



5. What are the payment terms?

T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept



6. Is this your final price? May I have the discount?

Our price is the factory price. If you have a large quantity, we can negotiate about the discount.



7. What is the Warranty for your products?

Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
