Permanent Magnet Bldc Motor NEMA 17 24vdc 25w

Name: Permanent Magnet Bldc Motor NEMA 17 24vdc 25w
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: 42BLY02-001
Availability: InStock

Brand Name:	HeTai
Model Number:	42BLY02-001
MOQ:	50
Price:	USD
Delivery Time:	25 DAYS
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Brushless DC Motor

Hall Effect Angle:

120° Electrical Angle

Insulation Class:

Winding Type:

Star

Dielectric Strength:

600VAC 1 Minute

Ambient Temperature:

-20℃~+50℃

Insulation Resistance:

100MΩ Min.500VC DC

IP Level:

IP40

Max Radial Force:

15N (10mm From Front Flange)

Max Axial Force:

10N

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

10000 PCS/MONTH

Highlight:

nema 17 24vdc

permanent magnet dc motor 24v

Bldc motor 24v 25w

Product Description

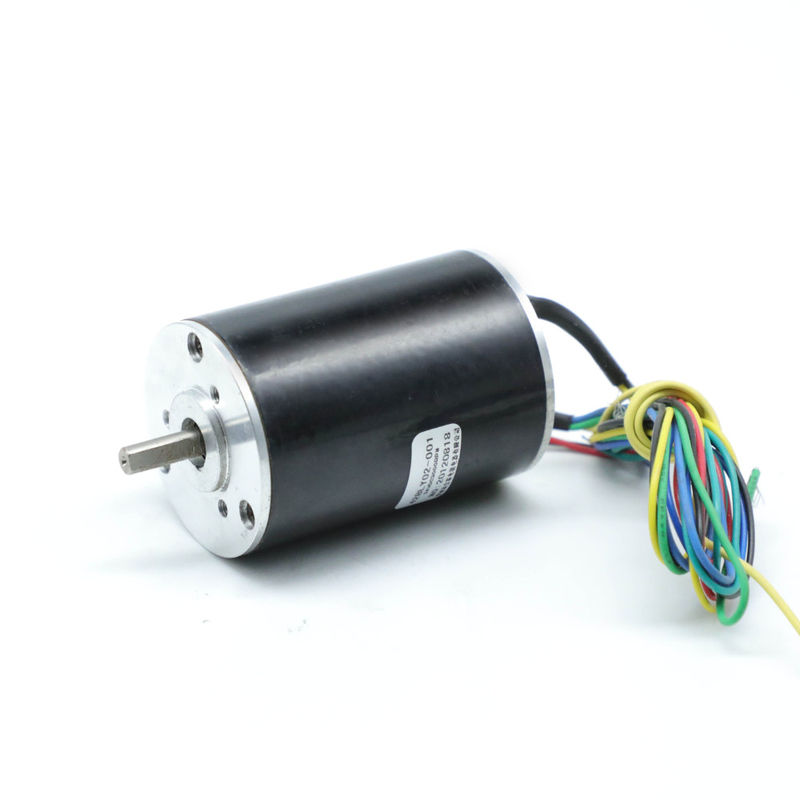

42BLY02-001 NEMA 17 customizable high quality small high speed micro brushless dc motor

-Resistance: 3.5OHMS

-No-load speed: 5100 RPM

-Dielectric Strength: 600VAC 1 minute

-IP level: IP40

Without brushes, brushless motors wear much less quickly than brushed DC motors, they operate with far less audible and electrical noise, and they are capable of much higher speeds.

Electrical Specification:

		Model
Specification	Unit	42BLY02-001
Number Of Phases	Phase	3
Number Of Poles	Poles	4
Rated Voltage	VDC	24
Rated Speed	Rpm	3000±300
Rated Current	A	0.45
Rated Torque	N.m	0.08
Rated Power	W	25
Peak Torque	N.m	0.24
Torque Constant	N.m/A	0.045
Back EMF constant	V/kRPM	4.7
Body Length	mm	60
Weight	Kg	0.38

*Products can be customized by special request.

*Products can match gearbox 36,42 mm

Wiring Diagram

ELECTRICAL CONNECTION TABLE
FUNCTION	COLOR
+5V	RED	UL1007 26AWG
HALL A	YELLOW
HALLB	GREEN
HALLC	BLUE
GND	BLACK
PHASE A	YELLOW	UL3265 22AWG
PHASE B	GREEN
PHASE C	BLUE

Mechanical Dimension

Permanent Magnet Bldc Motor NEMA 17 24vdc 25w 0

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Permanent Magnet Bldc Motor NEMA 17 24vdc 25w 1

Packing & delivery

Permanent Magnet Bldc Motor NEMA 17 24vdc 25w 2
