Dc 24v Gear Reduction Motor NEMA 17 Brushless Motor 36mm
| Place of Origin | China |
|---|---|
| Brand Name | Hetai |
| Certification | CE ROHS ISO |
| Model Number | 42BLF01-023AG13 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Brushless Gearbox Motor | Winding Type | Star |
|---|---|---|---|
| Hall Effect Angle | 120° Electrical Angle | Insulation Class | B |
| Ambient Temperature | -20℃~+50℃ | Insulation Resistance | 100MΩ Min.500VC DC |
| Dielectric Strength | 600VAC 1 Minute | Protection Level | IP40 |
| Rated Torque | 0.66 N.m | Reduction Ratio | 1/13 |
| High Light | 24 volt dc gear reduction motor,nema 17 24vdc 36mm,NEMA 17 Brushless Motor 36mm |
||
Product Description

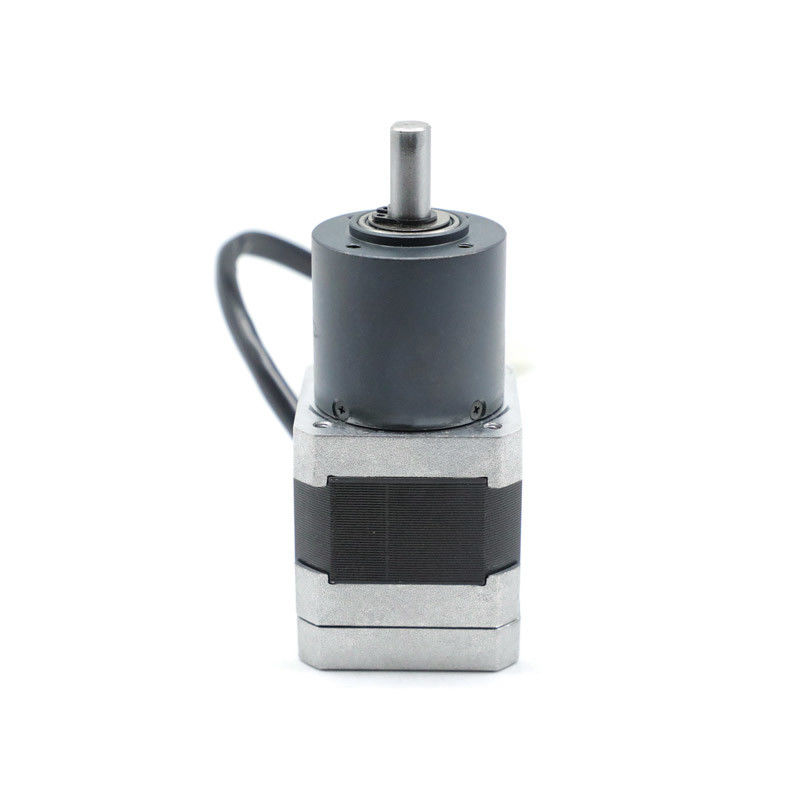

42BLF01-023AG13 NEMA 17 dc micro brushless motor reduction gearbox 36mm
| Model | Reduction Ratio | Gearbox Housing Material | Bearing at output | Voltage(V) | Power(W) | Speed(RPM) |
| 42BLF01-023AG13 | 13:1 | Powder metallurgy | Ball Bearing | 24 | 19 | 308 |
| 42BLF01-027AG16 | 16:1 | Powder metallurgy | Ball Bearing | 24 | 19 | 250 |
| 42BLF01-035AG25 | 25:1 | Powder metallurgy | Ball Bearing | 24 | 17 | 160 |
| 42BLF01-036AG53 | 53:1 | Powder metallurgy | Ball Bearing | 24 | 17 | 75 |
Electrical Specification:
| Model | ||
| Manufacture Model | 42BLF01-023AG13 | |
| Number Of Phases | Phase | 3 |
| Number Of Poles | Poles | 8 |
| Line To Line Resistance | OHMS | 2.2 |
| Nominal Voltage | VDC | 24 |
| No Load Speed | RPM | 5000±10% |
| No Load Current | Amps | 0.5 |
| Rated Speed | Rpm | 4000±10% |
| Rated Current | A | 0.5 |
| Rated Torque | N.m | 0.063 |
| Rated Power | W | 25 |
| Peak Torque | N.m | 0.189 |
| Peak Current | Amps | 1.5 |
| Torque Constant | N.m/A | 0.042 |
| Back EMF constant | V/kRPM | 4.4 |
| Body Length | mm | 47 |
| Weight | Kg | 0.30 |
| MOTOR SPECIFICATIONS WITH PLANETARY GEAR | ||
| Rated Torque | N.m | 0.66 |
| Rated Speed | Rpm | 307 |
| RATIO | 13:1 | |
*Products can be customized by special request.
Wiring Diagram
| FUNCTION | COLOR | |
| +5V | RED | UL1007 26AWG |
| HALL A | YELLOW | |
| HALLB | GREEN | |
| HALLC | BLUE | |
| GND | BLACK | |
| PHASE A | YELLOW | UL3265 22AWG |
| PHASE B | GREEN | |
| PHASE C | BLUE |
Mechanical Dimension
36mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearings | ≤120 | ≤80 | ≤500 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/4 | 0.3 | 1.0 | 81% | 24.8 | 145 | 1 |
| 1/5 | ||||||
| 1/16 | 1.2 | 3.5 | 72% | 32.4 | 173 | 2 |
| 1/20 | ||||||
| 1/25 | ||||||
| 1/53 | 2.5 | 7.5 | 65% | 41.9 | 213 | 3 |
| 1/62 | ||||||
| 1/76 | ||||||
| 1/94 | ||||||
| 1/117 |
