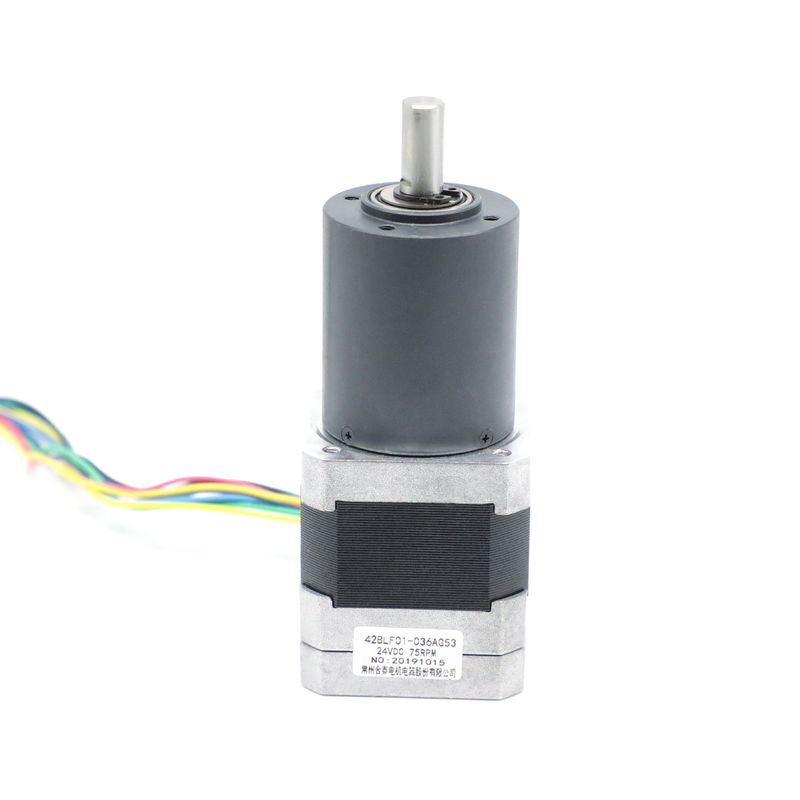

NEMA 17 Micro Gearbox Brushless Motor With Speed Reducer 75 RPM

NEMA 17 Micro Gearbox Brushless Motor With Speed Reducer 75 RPM

Brand Name:	Hetai
Model Number:	42BLF01-036AG53
MOQ:	50
Price:	USD
Delivery Time:	28-31
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Brushless Gearbox Motor

Winding Type:

Star

Hall Effect Angle:

120° Electrical Angle

Insulation Class:

Ambient Temperature:

-20℃~+50℃

Insulation Resistance:

100MΩ Min.500VC DC

Dielectric Strength:

600VAC 1 Minute

Rated Speed:

75±10% RPM

Rated Torque:

2.17 NM

Protection Level:

IP40

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

5000pcs/month

Highlight:

Brushless Planetary Gear Motor

NEMA 17 Micro Gearbox Brushless Motor

Brushless Dc Planetary Gear Motor

Product Description

NEMA 17 micro DC brushless motor with Powder metallurgy gearbox speed reducer 75 RPM

Model	Ambient Temperature	Reduction Ratio	Gearbox Housing Material	Bearing at output	Voltage(V)	Power(W)	Speed(RPM)
42BLF01-023AG13	-20℃-50℃	13:1	Powder metallurgy	Ball Bearing	24	19	308
42BLF01-027AG16	-20℃-50℃	16:1	Powder metallurgy	Ball Bearing	24	19	250
42BLF01-035AG25	-20℃-50℃	25:1	Powder metallurgy	Ball Bearing	24	17	160
42BLF01-036AG53	-20℃-50℃	53:1	Powder metallurgy	Ball Bearing	24	17	75

Planetary Gearbox Applications

As well as uses for transmissions in vehicles, planetary gearboxes are used in various industries for different applications. They offer high precision and high torque-to-volume ratio making them well suited to applications that involve; increasing torque, reducing speed, precise positioning, and controlling reproducible machinery.

Electrical Specification:

		Model
Manufacture Model		42BLF01-036AG53
Number Of Phases	Phase	3
Number Of Poles	Poles	8
Line To Line Resistance	OHMS	2.2
Nominal Voltage	VDC	24
No Load Speed	RPM	5000±10%
No Load Current	Amps	0.5
Rated Speed	Rpm	4000±10%
Rated Current	A	0.5
Rated Torque	N.m	0.063
Rated Power	W	26
Peak Torque	N.m	0.063
Peak Current	Amps	0.5
Torque Constant	N.m/A	0.046
Back EMF constant	V/kRPM	4.8
Body Length	mm	47
Weight	Kg	0.30
MOTOR SPECIFICATIONS WITH PLANETARY GEAR
Rated Torque	N.m	2.17
Rated Speed	Rpm	75±10%
RATIO		53:1

*Products can be customized by special request.

Wiring Diagram

FUNCTION	COLOR
+5V	RED	UL1007 26AWG
HALL A	YELLOW
HALLB	GREEN
HALLC	BLUE
GND	BLACK
PHASE A	YELLOW	UL3265 22AWG
PHASE B	GREEN
PHASE C	BLUE

Mechanical Dimension

NEMA 17 Micro Gearbox Brushless Motor With Speed Reducer 75 RPM 0

36mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearings	≤120	≤80	≤500	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/4	0.3	1.0	81%	24.8	145	1
1/5
1/16	1.2	3.5	72%	32.4	173	2
1/20
1/25
1/53	2.5	7.5	65%	41.9	213	3
1/62
1/76
1/94
1/117

Applications including

Wheel drives

Track drives

Conveyors

Slew drives

Hoist drives

Mixing

Winch drives

Pumps

Coil tubing injectors

Auger & drilling drives

Cutter head drives
