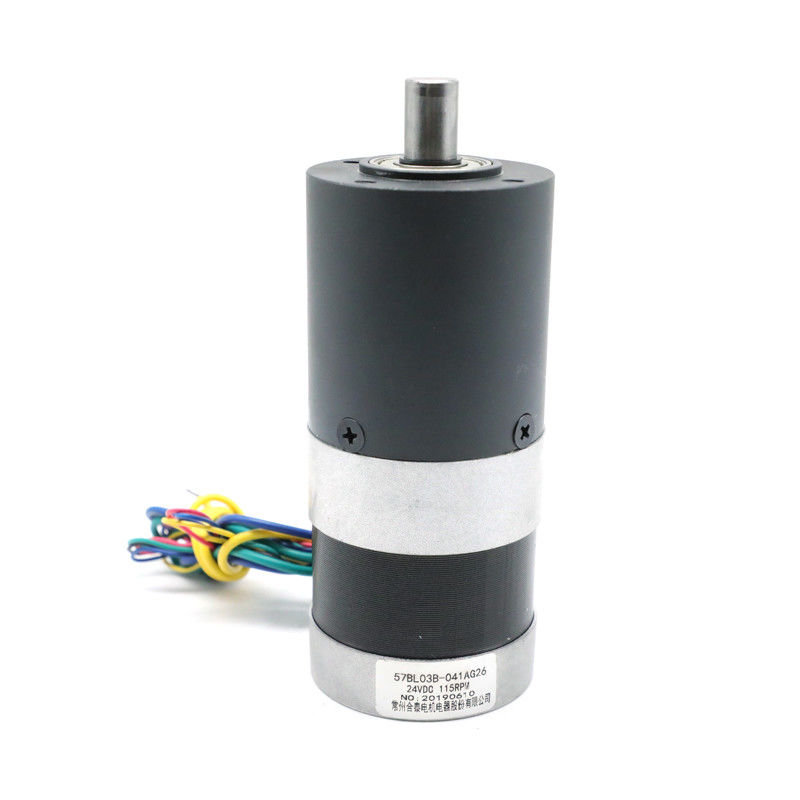

Micro Geared Brushless Motor NEMA23 24v 57mm 0.18nm 57BL03B 041AG26
| Place of Origin | China |
|---|---|
| Brand Name | Hetai |
| Certification | CE ROHS ISO |
| Model Number | 57BL03B-041AG26 |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 28-31 |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Brushless Gearbox Motor | Winding Type | Star |
|---|---|---|---|
| Hall Effect Angle | 120° Electrical Angle | Insulation Class | B |
| Ambient Temperature | -20℃~+50℃ | Insulation Resistance | 100MΩ Min.500VC DC |
| Dielectric Strength | 600VAC 1 Minute | Reduction Ratio | 1/26 |
| MAX Axial Force | 8 N.m | Max Momentary Tolerance Torque | 25 N.m |
| High Light | small geared brushless motor,nema 23 planetary gearbox 57BL03B,nema 23 57mm 57BL03B |
||
Product Description
57BL03B-041AG26 micro low noise powder metallurgy geared NEMA23 brushless DC motor
Wide Speed Ratio with a Long Service Lifespan
57BL03B-041AG26 is consists of a 3 phase 57mm dc brushless motor and a 56mm planetary gearbox. The housing material of the gearbox is powder metallurgy. It uses sleeve bearing. The radial load(10mm from flange) of gearbox output shaft is 450N, and the shaft axial load is 200N.
For the same amount of load capacity, our powder metallurgy planetary gearbox has a higher service lifespan than the traditional gearboxes. The key aspects are to improve efficiency and reliability in any mechanical system.
Electrical Specification:
| Model | ||
| Manufacture Model | 57BL03B-041AG26 | |
| Number Of Phases | Phase | 3 |
| Number Of Poles | Poles | 4 |
| Line To Line Resistance | OHMS | 0.8 |
| Nominal Voltage | VDC | 24 |
| No Load Speed | RPM | 4000 |
| No Load Current | Amps | 0.6 |
| Rated Speed | Rpm | 3000±200 |
| Rated Current | A | 0.6 |
| Rated Torque | N.m | 0.18 |
| Rated Power | W | 57 |
| Peak Torque | N.m | 0.54 |
| Torque Constant | N.m/A | 0.057 |
| Back EMF constant | V/kRPM | 5.9 |
| Body Length | mm | 56.5 |
| Weight | Kg | 0.56 |
| MOTOR SPECIFICATIONS WITH PLANETARY GEAR | ||
| Rated Torque | N.m | 3.3 |
| Rated Speed | Rpm | 115±10% |
| RATIO | 26:1 | |
*Products can be customized by special request.
Wiring Diagram
| FUNCTION | COLOR | |
| +5V | RED | UL1007 26AWG |
| HALL A | YELLOW | |
| HALL B | GREEN | |
| HALL C | BLUE | |
| GND | BLACK | |
| PHASE A | YELLOW | UL1015 22AWG |
| PHASE B | GREEN | |
| PHASE C | BLUE |
Mechanical Dimension
Out diameter 56mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearings | ≤450 | ≤200 | ≤1000 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% |
Length L (mm) |
Weight(g) | Number of gear trains |
| 1/4 | 2.0 | 6.0 | 81% | 41.3 | 491 | 1 |
| 1/6 | ||||||
| 1/15 | 8.0 | 25 | 72% | 59.6 | 700 | 2 |
| 1/18 | ||||||
| 1/26 | ||||||
| 1/47 | 16 |
50
|
72% | 59.6 | 700 | 2 |
| 1/66 |
Mechanical Dimension
A planetary gearbox, also known as an epicyclic gearbox, is one of the most interesting types of gearboxes available within motion control. They are often used in automotive as an important part of automatic transmissions.
How Does a Planetary Gearbox Work?
The alignment of the gears can be compared to our solar system where the planets revolve around the sun, hence the name “Planetary Gearbox”.
