10kgcm 57mm Stepper Motor Gearbox Nema 23 Planetary High Precision 9.6V

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 57BYGH321-03AG6
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 25 DAYS
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stepping Gearbox Motor Step Accuracy ± 5%
Temperature Rise 80 ℃ Max Insulation Resistance 100MΩ Min.500VC DC
Ambient Temperature -20℃~+50℃ Dielectric Strength 500VAC 1 Minute
Gearbox Housing Material Powder Metallurgy Bearing At Output Sleeve Bearing
RATED VOLTAGE 6.9V RESITSTANCE 9.6 Ω/PHASE
High Light

nema 23 planetary gearbox 9.6V

,

Nema Planetary Gearbox 9.6V

,

Gearbox For Nema 23 Stepper Motor

Leave a Message
Product Description

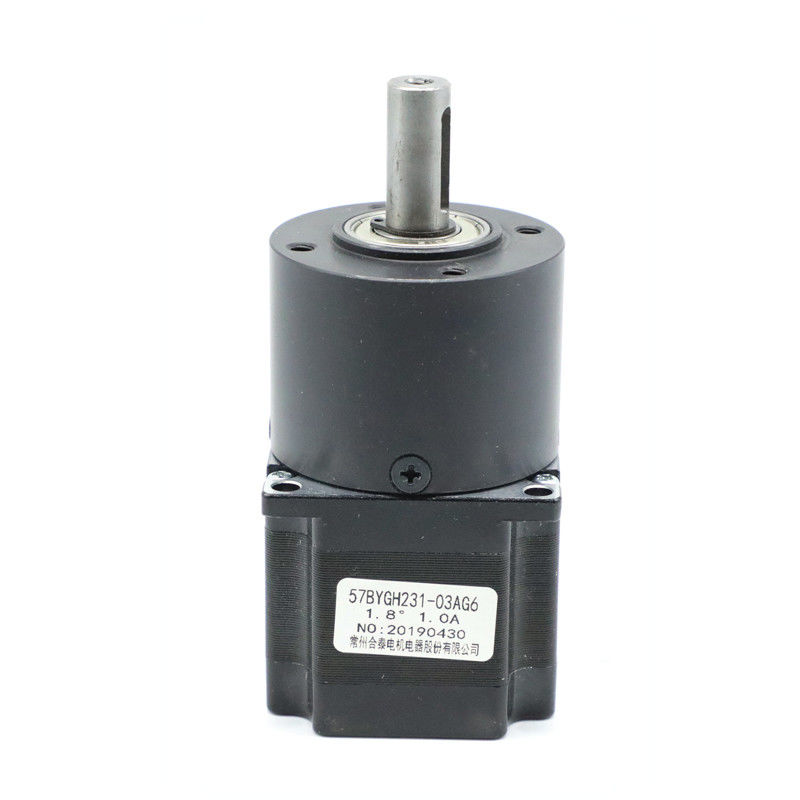

57BYGH231-03AG6 NEMA 23 high precision 9.6V step gearbox motor planetary speed reducer



57BYGH231-03AG6 consists of a 2 phase 57mm stepping motor and a 56mm planetary gearbox. The housing material of the 56mm gearbox is powder metallurgy. The radial play of the shaft is ≤0.03mm, and the Thrust play of shaft is ≤0.1. Backlash at no-load is ≤1.5 °.

For the same amount of load capacity, our powder metallurgy planetary gearbox has a higher service lifespan than the traditional gearboxes. The key aspects are to improve efficiency and reliability in any mechanical system.





Electrical Specification

STEP ANGLE °/STEP 1.8
RATED VOLTAGE V 9.6
CURRENT A/PHASE 1.0
RESISTANCE Ω/PHASE 9.6
INDUCTANCE mH/PHASE 20
HOLDING TORQUE kg.cm 10
INSULATION CLASS B

*Products can be customized by special request.


Wiring Diagram

10kgcm 57mm Stepper Motor Gearbox Nema 23 Planetary High Precision 9.6V 0

Mechanical Dimension

10kgcm 57mm Stepper Motor Gearbox Nema 23 Planetary High Precision 9.6V 1

Gearbox Part Electrical Specification



Out diameter 56mm Powder metallurgy



Housing material Bearing at output Radial load(10mm from flange)N Shaft axial load(N) Shaft press-fit force max(N) Radial play of shaft(mm) Thrust play of shaft(mm) Backlash at no-load (°)
Powder metallurgy sleeve bearing ≤450 ≤200 ≤1000 ≤0.03 ≤0.1 ≤1.5



Reduction ratio Rated tolerance torque (Nm) Max momentary tolerance torque (Nm) Efficiency%

Length

L

(mm)

Weight(g) Number of gear trains
1/4 2.0 6.0 81% 41.3 491 1
1/6
1/15 8.0 25 72% 59.6 700 2
1/18
1/26
1/47 16



50



72% 59.6 700 2
1/66



Mechanical Dimension



10kgcm 57mm Stepper Motor Gearbox Nema 23 Planetary High Precision 9.6V 2





Based on all these advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.
10kgcm 57mm Stepper Motor Gearbox Nema 23 Planetary High Precision 9.6V 3
10kgcm 57mm Stepper Motor Gearbox Nema 23 Planetary High Precision 9.6V 4

By having a different arrangement of the sun gear and planetary gears, high output torque and wide speed ratio are achieved. Apart from these, planetary gearboxes have lower inertia and high torque transmission. All these are key aspects that guarantee efficiency.

The ability to accurately vary the degree of power and speed makes planetary gearboxes suitable for many special applications such as wind turbines, internal combustion engines, and so on.
