Nema 17 Linear Stepper Motor Actuator Lead Screw 42bygh 4 Wire

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 42BYGHL208-02
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 25 DAYS
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Linear Step Motor Temperature Rise 80 ℃ Max
Resistance 30 Ω Insulation Resistance 100MΩ Min.500VC DC
Ambient Temperature -20℃~+50℃ Step Accuracy ± 5%
Inductance 42 MH Dielectric Strength 500VAC 1 Minute
Max Radial Force 28N (20mm From Front Flange) Max Axial Force 10N
High Light

Nema 17 Linear Stepper Motor 42bygh

,

Linear Stepper Motor 42bygh

,

lead screw linear actuator

Leave a Message
Product Description

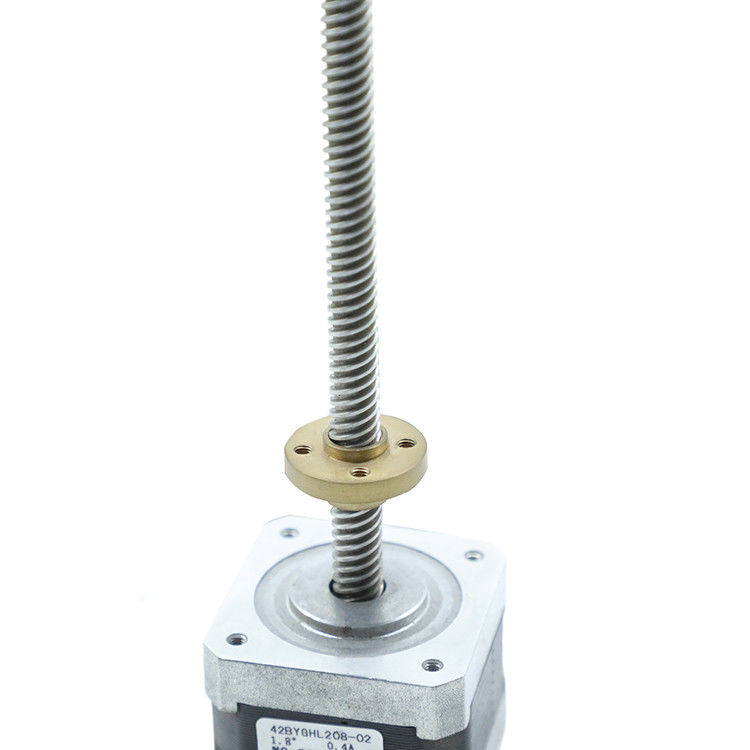

42BYGHL208-02 NEMA 17 screw nuts Tr 8*8(P2) 4 heads 4 wire linear actuator



The screw of this linear actuator is 8mm in diameter and 8mm lead. It has 2 pitches and 4 thread heads.

The step angle is 1.8° and the Step Accuracy is ± 5%. It has a holding torque of 0.26 Nm and is quiet in operation.





Electrical Specification:



Model Number

42BYGHL208-02

Step Accuracy

± 5%

Step Angle

1.8°

Lead Wire

4

Voltage (V)

12

Current (A/Phase)

0.4

Holding Torque (Kg.cm)

2.6

Resistance (Ω/phase)

30

Inductance (mH/phase)

42

Motor length (MM)

34

Motor Weight(Kg)

0.2

Insulation Class

B

*Products can be customized by special request.


Mechanical Dimension

Nema 17 Linear Stepper Motor Actuator Lead Screw 42bygh 4 Wire 0

Specification of Other Models:

MODEL STEP ANGLE
(°/STEP)
LEAD WIRE
(NO.)
VOLTAGE
(V)
CURRENT
(A/PHASE)
RESISTANCE
(Ω/PHASE)
INDUCTANCE
(MH/PHASE)
HOLDING TORQUE
(KG.CM)
MOTOR HEIGHT
L(MM)
MOTOR WEIGHT
(KG)
42BYGHL208-12A 1.8 4 12.0 0.4 30.0 42.0 2.6 34 0.20
42BYGHL613-03A 1.8 4 2.3 1.7 1.35 3.0 3.5 40 0.26
42BYGHL810-09 1.8 4 3.8 1.2 33.2 6.0 4.5 48 0.36



*Products can be customized by special request.



Nema 17 Linear Stepper Motor Actuator Lead Screw 42bygh 4 Wire 1Nema 17 Linear Stepper Motor Actuator Lead Screw 42bygh 4 Wire 2

1. Are you a factory?

Yes, we are a factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in

China. Main products including hybrid stepper motor, brushless DC motor, servo motor, and planetary gearbox.



2. Can I test the sample?

Yes, samples and freight are charged.



3. Can I get a Customized product?

Sure, all the products can be customized based on special requests.



4. How do you ship the goods?

We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.



5. What are the payment terms?

T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept



6. Is this your final price? May I have the discount?

Our price is the factory price. If you have a large quantity, we can negotiate about the discount.



7. What is the Warranty for your products?

Our warranty is for one year. If any quality problems occurred on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
