Miniature Linear Stepper Motor Nema 17 42bygh

Name: Miniature Linear Stepper Motor Nema 17 42bygh
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: 42BYGHL842
Availability: InStock

Brand Name:	HeTai
Model Number:	42BYGHL842
MOQ:	50
Price:	USD
Delivery Time:	25 DAYS
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Linear Step Motor

Step Accuracy:

± 5%

IP Level:

IP40

Insulation Resistance:

100MΩ Min.500VC DC

Ambient Temperature:

-20℃~+50℃

Temperature Rise:

80 ℃ Max

Voltage:

5.61V

Dielectric Strength:

500VAC 1 Minute

Max Radial Force:

28N (20mm From Front Flange)

Max Axial Force:

10N

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

10000 PCS/MONTH

Highlight:

mini linear stepper motor

Nema Linear Stepper Motor

Linear Drive Stepper Motor

Product Description

42BYGHL842 NEMA 17 1.8° 4 leads 0.45 Nm linear stepper motor mini actuator

Screw Specification 42BYGHL842 Tr 8*8(P2) 4 heads

The linear Nema 17 stepper motor is IP40, the working temperature is -20℃~+50℃. It has a holding torque of 4.5 kg.cm.

The products can be customized by special request.

Electrical Specification

Model Number	42BYGHL842
Step Accuracy	± 5%
Step Angle	1.8°
Lead Wire	4
Voltage (V)	5.61
Current (A/Phase)	1.7
Holding Torque (kg.cm)	4.5
Resistance (Ω/phase)	3.3
Inductance (mH/phase)	3.7
Motor length (MM)	48
Motor Weight(Kg)	0.36
Insulation Class	B

*Products can be customized by special request.

Mechanical Dimension

Based on all these advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.

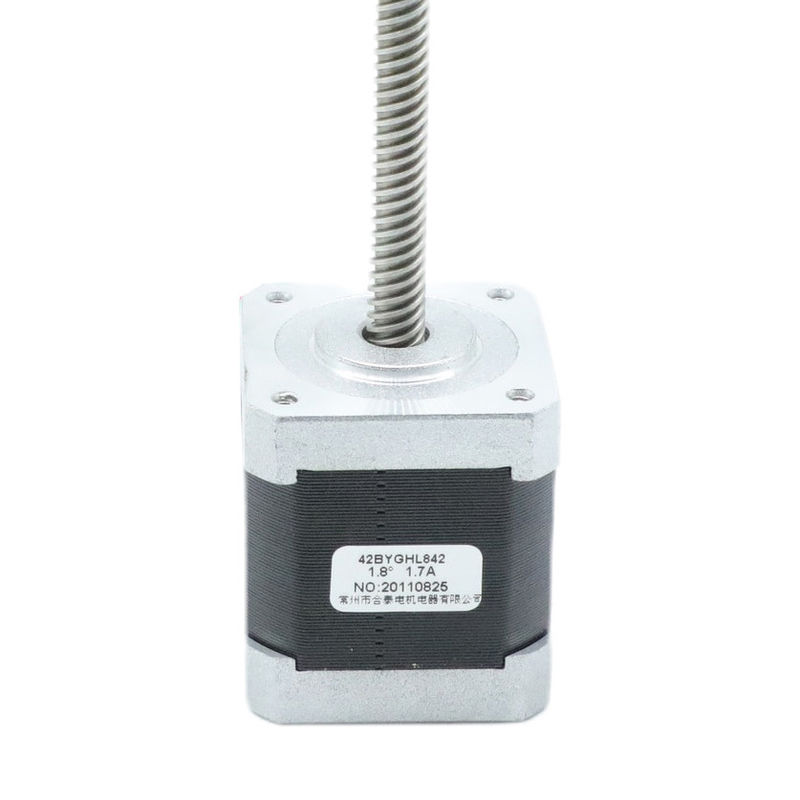

Miniature Linear Stepper Motor Nema 17 42bygh 1
