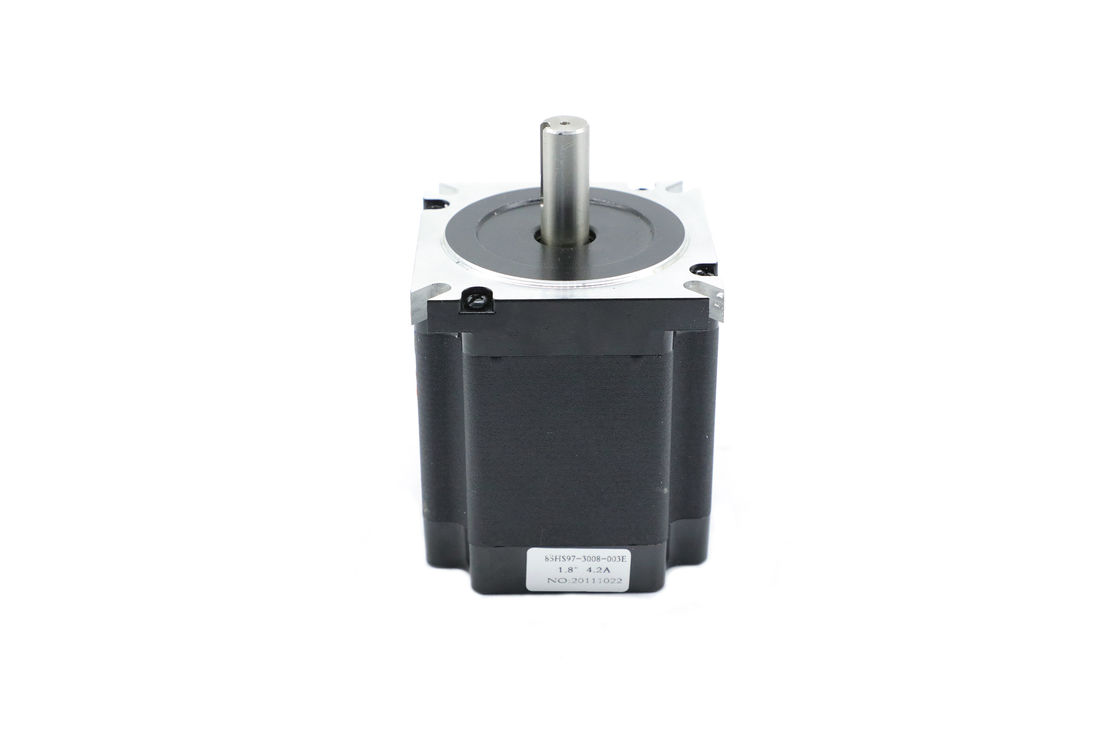

1.8 Deg 6.5nm 6 nm stepper motor 85HS97 3008 003E

  • 1.8 Deg 6.5nm 6 nm stepper motor 85HS97 3008 003E
  • 1.8 Deg 6.5nm 6 nm stepper motor 85HS97 3008 003E
  • 1.8 Deg 6.5nm 6 nm stepper motor 85HS97 3008 003E
  • 1.8 Deg 6.5nm 6 nm stepper motor 85HS97 3008 003E
  • 1.8 Deg 6.5nm 6 nm stepper motor 85HS97 3008 003E
Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 85HS97-3008-003E
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 25 DAYS
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hybrid Stepping Motor Step Accuracy ± 5%
Holding Torque 6.5N.m Temperature Rise 80 ℃ Max
Insulation Resistance 100MΩ Min.500VC DC Ambient Temperature -20℃~+50℃
Inductance 8.0mH Dielectric Strength 500VAC 1 Minute
Max Radial Force 220N (20mm From Front Flange) Max Axial Force 60N
Highlight

6nm stepper motor

,

1.8 Deg Hybrid Stepper Motor

,

stepper motor 6nm
Leave a Message
Product Description

85HS97-3008-003E 1.8 Degree Length 87mm Stepper Motor Control System Hybrid High Configuration Stepper Motor



Stepper motors are DC motors that move in discrete steps. They have multiple coils that are organized in groups called "phases". By energizing each phase in sequence, the motor will rotate, one step at a time.

Electrical Specification:


Model Number 85HS97-3008-003E
Step Accuracy ± 5%
Step Angle 1.8°
Lead Wire 4
Voltage (V) 3.4
Current (A/Phase) 4.2
Holding Torque (N.m) 6.5
Resistance (Ω/phase) 1.6
Inductance (mH/phase) 8.0
Motor length (MM) 87
Motr Weight(K/g) 2.8
Insulation Class B

*Products can be customized by special request.



*Wiring Diagram

1.8 Deg 6.5nm 6 nm stepper motor 85HS97 3008 003E 0

 *Mechanical Dimension
1.8 Deg 6.5nm 6 nm stepper motor 85HS97 3008 003E 1

Specification of Other Models:
MODEL STEP ANGLE
(°/STEP)		 LEAD WIRE
(NO.)		 VOLTAGE
(V)		 CURRENT
(A/PHASE)		 RESISTANCE
(Ω/PHASE)		 INDUCTANCE
(MH/PHASE)		 HOLDING TORQUE
(N.M)		 MOTOR HEIGHT
L(MM)		 MOTOR WEIGHT
(KG)
85HS68-1404-001 1.8 4 5.6 1.4 4.0 24.0 2.8 68 1.8
85HS68-4004-001 1.8 4 2.4 4.0 0.6 2.8 2.8 68 1.8
85HS80-4208-001-02 1.8 8 4.6 2.97 1.55 6.76 3.2 80 2.3
85HS80-5504-001-06 1.8 4 1.6 4.0 0.4 3.5 3.0 80 2.3
85HS97-3008-001 1.8 8 4.8 3.0 1.6 8.0 5.0 97 2.8
85HS97-4006-001 1.8 6 3.4 4.0 1.0 5.0 4.4 97 2.8
85HS116-4208-001 1.8 8 5.0 4.2 1.2 6.5 6.0 116 3.6
85HS116-5004-001 1.8 4 4.5 5.0 0.9 11.0 8.5 116 3.6
85HS126-4008-001 1.8 8 6.0 4.0 1.5 8.0 6.8 126 3.8
85HS126-6408-001 1.8 8 1.53 6.4 0.536 2.86 6.2 126 3.8
85HS131-3004-001 1.8 4 5.1 3.0 1.7 18.0 9.0 131 4.2
85HS131-7004-001 1.8 4 2.8 7.0 0.4 4.0 9.0 131 4.2
85HS155-5004-001 1.8 4 4.0 5.0 0.8 10.0 11.0 155 5.0
85HS155-6504-001 1.8 4 3.9 6.5 0.6 7.0 10.0 155 5.0

*Products can be customized by special request.
