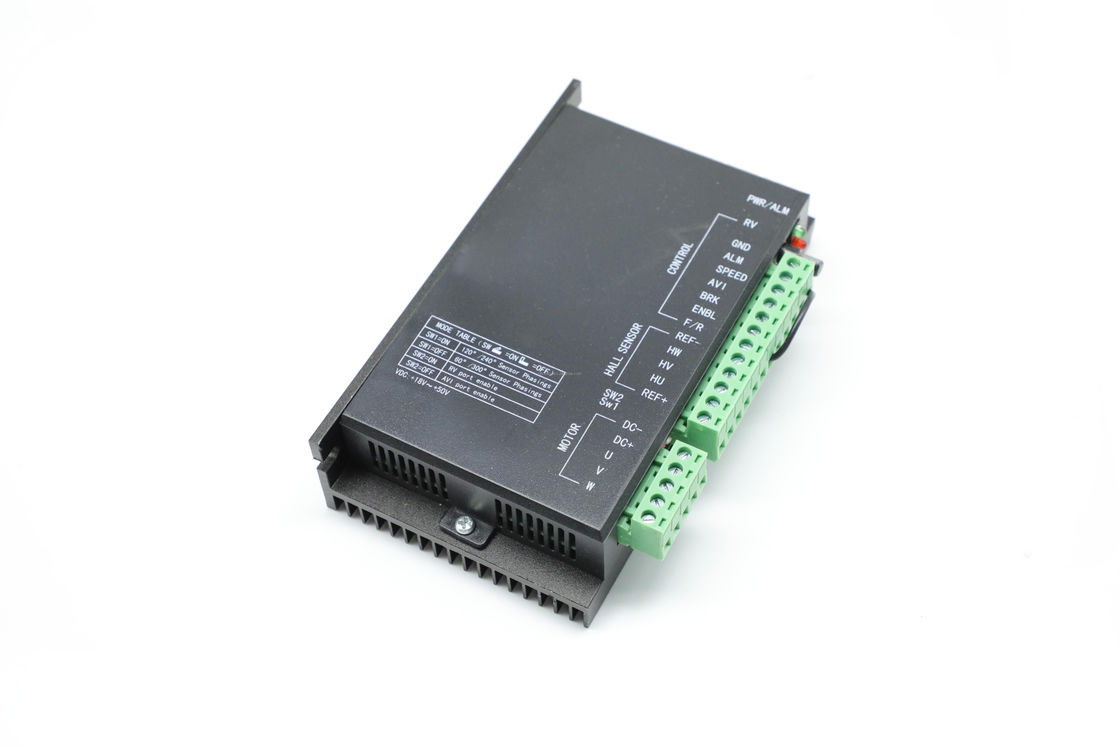

300W 3 Phase Bldc Motor Driver 48v 24v 12V 36v Match 15A

Name: 300W 3 Phase Bldc Motor Driver 48v 24v 12V 36v Match 15A
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: BLDC-5015A
Availability: InStock

Brand Name:	Hetai
Model Number:	BLDC-5015A
MOQ:	50
Price:	USD
Delivery Time:	7~10 working days
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Brushless Motor Driver

Use Occasion:

Avoid Dust, Oil And Corrosive Gases

Cooling Mode:

Natural Or Forced Cooling

MAX Viration:

5.9m/S2 Max

Working Temperature:

10~+50°C

Highest Environment Humidity:

80%RH(No Condensation)

Net Weight:

0.628 Kg

Size:

143*80*33mm

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

1000pcs/month

Highlight:

Bldc Motor Driver 24v

Three Phase Bldc Motor Driver

3 Phase Brushless Dc Motor Driver

Product Description

BLDC-5015A high performance 12V-48V match 300W 15A brushless motor driver

BLDC-5015A brushless DC motor driver is designed by HETAI motor and electric APPLIANCE CO.,
LTD by ourselves. With the continuous improvement of electronic science and technology, our designers adopt the CPLD to this motor driver. The motor drivers apply to the under 15A and 50VDC three-phase brushless DC motor; the advantage of this motor driver is maintenance-free, long-life, constant torque, and so on. Widely used in textile machinery, medical devices, food machines, electric power tools, garden machine,s and other resolutions to demand higher equipment.

Electrical Indicators

Drive parameters	MIn	Rated	Max
Input voltage DC(V)	12	48	56
Output current (A)	-	-	15
Applicable motor speed (RPM)	0	-	20000
Hall signal voltage (V)	12	-	5
Hall drive current(VDC)	-	-	-
External speed regulator (kΩ)	-	10	-

Environmental indicators

Cooling method	Natural cooling or forced cooling
Use occasions	Avoid dust, oil, and corrosive gases
Operating temperature	10°C-+50°C
Environmental humidity	80%RH (no condensation)
Storage temperature	-10°C-70°C
Vibration	5.9m/S㎡ max

Mechanical Dimension

Features

SPWM, Speed/Current alike close-loop technology, smooth rotation
Smooth torque output within speed range (8000 rpm Max.)
1-75 Max. Speed regulation ratio
60 degree/300 degree/120 degree/240-degree Electrical angle adjustable
Speed regulation: potentiometer adjust / Analog input
Run/Step, Quick Brake, CW/CCW rotation shift
Speed output, Alarm output (O.C.)
Over-current, over-voltage, stall, missing speed Alarm
