AC Servo Motor
Created with Pixso. 310V 20 Nm Servo Motor With Encoder 4kw IP65
  • Name
  • Name
  • Name
  • Name
  • Name

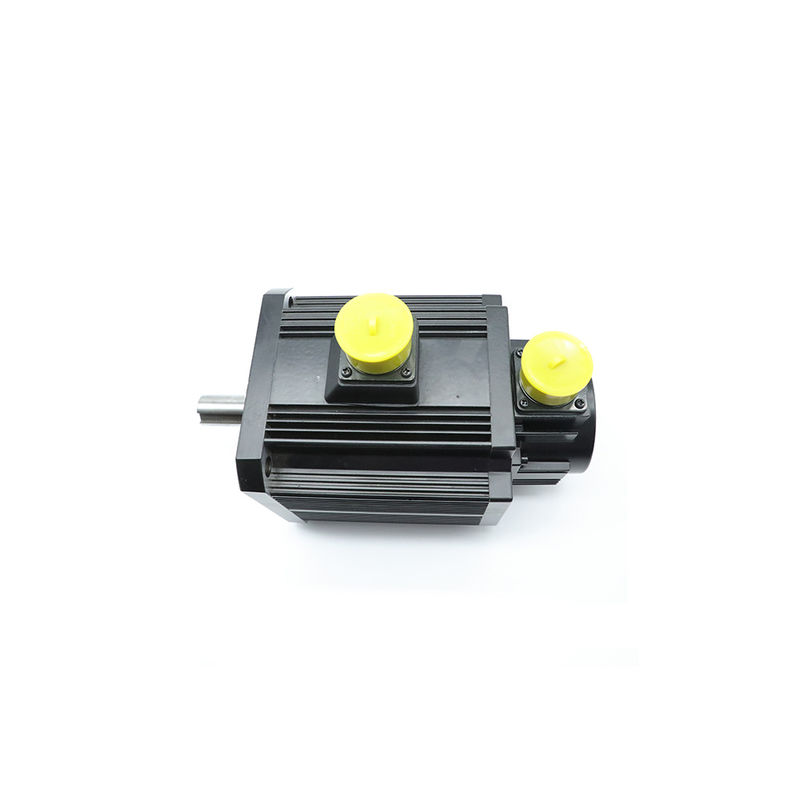

310V 20 Nm Servo Motor With Encoder 4kw IP65

Brand Name: Hetai
Model Number: ES130 4KW
MOQ: 5
Price: USD
Delivery Time: 28-31
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE ROHS ISO
Product Name:
Dc Servo Motor
Insulation Class:
F
Protection Level:
IP65
Work Temperature:
0℃~+55℃
Preserve Temperature:
20℃～80℃
Work Or Preserve:
90%RH（No Condensation) Above Sea Level 1000m
Vibration:
5.88/S 2.10-60Hz
Speed(RPM):
4000
Back EMF Constant（V/K Rpm):
54
Packaging Details:
Carton with Inner Foam Box, Pallet
Supply Ability:
1000pcs/month
Highlight:

20Nm servo motor 4kw

,

20Nm Servo Motor With Encoder 4kw

,

20Nm ip65 servo motor

Product Description

ES130 series 4KW 310V High power 20Nm rated smooth running precise control with encoder servo motor



Model ES 130 -310V (without brake)
Rated Power Max radial force Max axial force Weight Shaft type Shaft diameter Feedback device
4000W 490N 196N 15kg Key shaft φ22 Multi-turn absolute encoder 17 bit



Electrical Specification:



Product Name:

Servo Motor

Rated Power (W)

4000

Rated Speed (RPM)

2000

Voltage(VDC)

310

Rated Current(A)

20

Rated Torque (N.m)

20

Peak Torque(N.m)

40max

Back EMF Constant(V/Krpm)

54

Note: The products can be customized by your request. Please contact us for more details.




310V 20 Nm Servo Motor With Encoder 4kw IP65 0

310V 20 Nm Servo Motor With Encoder 4kw IP65 1

310V 20 Nm Servo Motor With Encoder 4kw IP65 2

Type

130

Power

1KW

1.5KW

2KW

4KW

Encoder









L
(mm)



A









B









L

143.5

157

171

226
N



Type 130
Power 1KW 1.5KW 2KW 4KW
Encoder



Weight
(Kg)



 A
B
L 5 6.09 7.2 11.4
N



servo motor application

Robotics

Camera Auto Focus

Robotic Vehicle

Solar Tracking System

Antenna Positioning

Woodworking/CNC

Textiles

...


310V 20 Nm Servo Motor With Encoder 4kw IP65 3
