Mini Servo Motor 100w 3000 Rpm With Encoder 310V 0.32 NM

Place of Origin China
Brand Name Hetai
Certification CE ROHS ISO
Model Number ES40-100W
Minimum Order Quantity 5
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month
Product Details
Product Name Servo Motor Insulation Class F
Protection Level IP65 Work Temperature 0℃~+55℃
Preserve Temperature 20℃~80℃ Work Or Preserve 90%RH(No Condensation) Above Sea Level 1000m
Vibration 5.88/S 2.10-60Hz Rated Torque 0.32 N.m
Speed(RPM) 3000 Structure Key Shaft, Oil Seal, No Brake
High Light

Mini Servo Motor 100w With Encoder

,

100w Servo Motor

,

ac servo motor 3000rpm

Leave a Message
Product Description

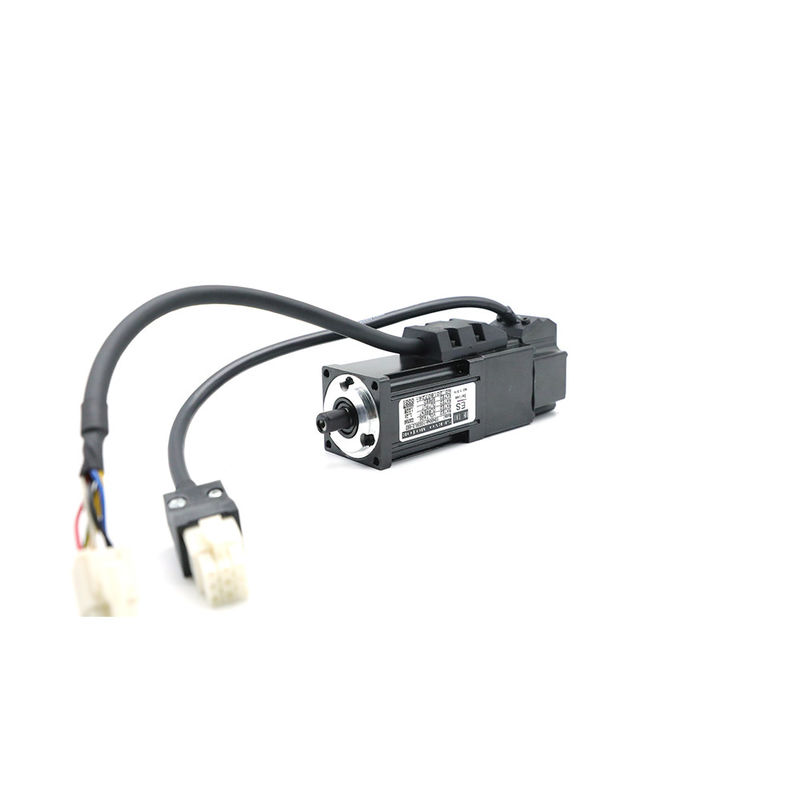

ES40-100W 310V 0.32 NM efficient CE ROHS ISO mini Servo motor with encoder



The customer can choose different optical encoder such as tamagawa single ring, incremental 2500ppr optical encoder, yuheng multi ring, Nikon multi ring and so on. The rotor interia is 0.045 kg.c㎡. The line to line resistance is 11 Ω while the inductance is 8 mH. The mechanical time constant is 0.86 Ms.



The motor is advantageous with a high protetction level IP65. With the close-loop control it also has excellent performance in reliability and low-noise.

Model ES 40 -310V (No Brake)
Rated Power Max radial force Max axial force Weight Shaft type Shaft diameter Feedback device No of poles
50W 120N 60N 0.5kg Key shaft φ8 24 bit 10 poles
100W 120N 60N 0.5kg Key shaft φ8 17 bit 8 poles



Electrical Specification:

Rated Power

Rated

Speed

Voltage

Rated

Current

Rated Torque

Peak

Torque

Back EMF

Constant

(W)

(RPM)

(V)

(A)

(N.m)

(N.m)

(N.m/A)

100

3000

310

1.2

0.32

0.96

16





Note: The products can be customized by your request. Please contact us for more details.

Without Brake




Mini Servo Motor 100w 3000 Rpm With Encoder 310V 0.32 NM 0



PIN FUNCTION

COLOUR

1 U Red
2 V White
3 W Black
4 G Yellow/Green



PIN FUNCTION COLOUR
1 NC
2 SD Blue
3 SD- Purple
4 Vcc White
5 GND Black
6 Shield



Type

40

Power

50W

100W

Encoder

L
(mm)

A



91.5

B





L



97

N

65

85





Type

40

Power

50W

100W

Encoder

Weight
(Kg)

A



0.48

B





L



0.52

N

0.34

0.45

Note: A, B, L, N refers to the different encoder.



A= tamagawa single-turn absolute value 17-bit encoder

B=incremental 2500ppr optical encoder

L=tamagawa multi-turn absolute value 17-bit encoder

N=Nikon multi-turn absolute value 24 bit



A servo motor is a rotary actuator or linear actuator that allows for precise control of angular or linear position, velocity, and acceleration. It consists of a suitable motor coupled to a sensor for position feedback. It also requires a relatively sophisticated controller, often a dedicated module designed specifically for use with servomotors.



Servo Workshop

Mini Servo Motor 100w 3000 Rpm With Encoder 310V 0.32 NM 1Mini Servo Motor 100w 3000 Rpm With Encoder 310V 0.32 NM 2

When it comes to quality aspects, Hetai was qualified by ISO Certificate, CE, and Rohs. The product quality has also been recognized by many customers.
Hetai is also proud of its research and development strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
