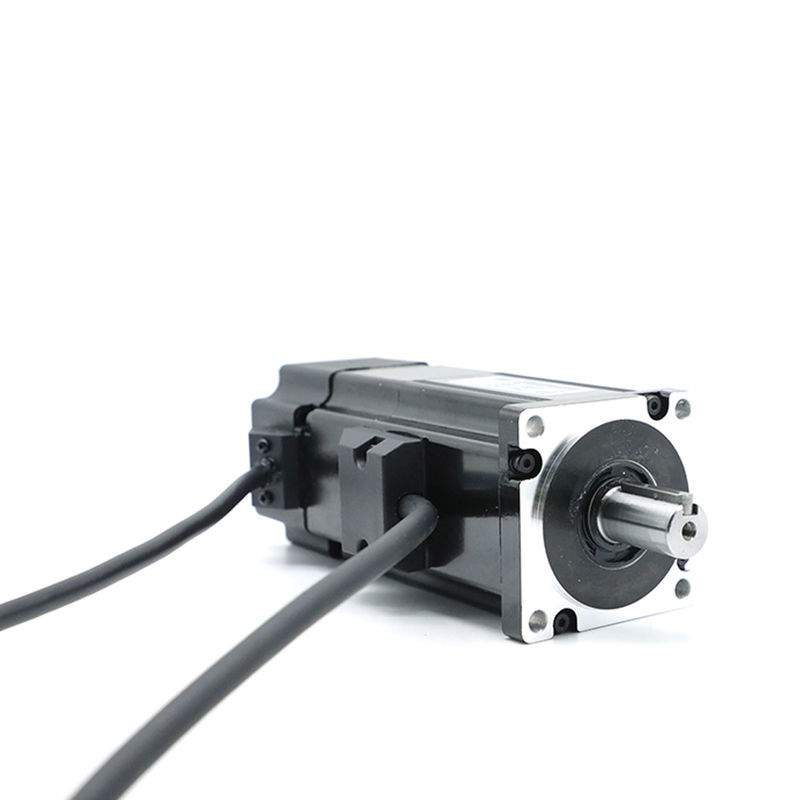

310v 200 Watt Servo Motor 3000 Rpm 0.64 NM

Place of Origin China
Brand Name Hetai
Certification CE ROHS ISO
Model Number ES60 200W
Minimum Order Quantity 5
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000pcs/month
Product Details
Product Name Servo Motor Insulation Class F
Rated Power 200w Encoder Optional
Protection Level IP65 Work Temperature 0℃~+55℃
Preserve Temperature 20℃~80℃ Work Or Preserve 90%RH(No Condensation) Above Sea Level 1000m
Vibration 5.88/S 2.10-60Hz Commutation Brushless
High Light

200w Servo Motor

,

310v servo motor

,

200 Watt Servo Motor 3000 rpm

Leave a Message
Product Description

ES60 200W Insulation Class B Constant Torque Output High-Efficiency Servo Motor



The ES60 200W has the advantage of high efficiency and quiet operation. The working temperature is 0℃~+55℃ and should preserve in the environment of 90%RH (No Condensation) Above Sea Level 1000m. The motor has a standard speed of 3000 rpm under 310V and the rated torque is 0.64NM, peak at 1.92 Nm. Meanwhile, the rated current is 1.6A.



Model ES 60 -310V (No Brake)
Rated Power Max radial force Max axial force Weight Shaft type Shaft diameter Feedback device No of poles
200W 180N 90N 1kg Key shaft φ14 17 bit 8 poles
400W 180N 90N 1.9kg Key shaft φ14 2500ppr 10 poles



Electrical Specification



Product Name:
Servo Motor
Rated Power (W)
200
Rated Speed (RPM)
3000
Voltage(VDC)
310
Rated Current(A)
1.6
Rated Torque (N.m)
0.64
Peak Torque(N.m)
1.92
Back EMF Constant(V/Krpm)
32

Note: The products can be customized by your request. Please contact us for more details.


310v 200 Watt Servo Motor 3000 Rpm 0.64 NM 0



Wiring diagram

Function Colour PIN
U RED 1
V WHT 2
W BLK 3
GND YEL/GRE 4





Type 60
Power    200W      400W
Encoder



Weight
(Kg)


A 0.98 1.28
B   1.35
L 1.05 1.42
N 0.86





Type 60
Power

200W

400W
Encoder
L
(mm)
A 101 121
B   136
L 116 136
N 81

Note: A, B, L, N refers to the different encoder.



A= tamagawa single-turn absolute value 17-bit encoder

B=incremental 2500ppr optical encoder

L=tamagawa multi-turn absolute value 17-bit encoder

N=Nikon multi-turn absolute value 24 bit



Applications of Servo Motors

Servomotors are used in applications requiring rapid variations in speed without the motor getting overheated.

In Industries they are used in machine tools, packaging, factory automation, material handling, printing converting, assembly lines, and many other demanding applications robotics, CNC machinery, or automated manufacturing.







310v 200 Watt Servo Motor 3000 Rpm 0.64 NM 1















































Changzhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder, and CNC machining centers as well.



Based on all these advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors, and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.
