1.8degree 4 Wire Gearbox Stepper Motor 42mm
| Place of Origin | China |
|---|---|
| Brand Name | HeTai |
| Certification | CE ROHS ISO |
| Model Number | 42BYGH |
| Minimum Order Quantity | 50 |
| Price | USD |
| Packaging Details | Carton with Inner Foam Box, Pallet |
| Delivery Time | 25 DAYS |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10000 PCS/MONTH |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stepping Gearbox Motor | Gearbox Housing Material | Powder Metallurgy, Zinc Alloy |
|---|---|---|---|
| Match Gearbox | 36mm, 42mm | Step Accuracy | ± 5% |
| Temperature Rise | 80 ℃ Max | Insulation Resistance | 100MΩ Min.500VC DC |
| Ambient Temperature | -20℃~+50℃ | Dielectric Strength | 500VAC 1 Minute |
| Radial Load(10mm From Flange)N | ≤120 | Shaft Axial Load(N) | ≤80 |
| High Light | 4 wire Gearbox Stepper Motors,1.8deg Gearbox Stepper Motors,1.8 stepper motor 42mm |
||
Product Description

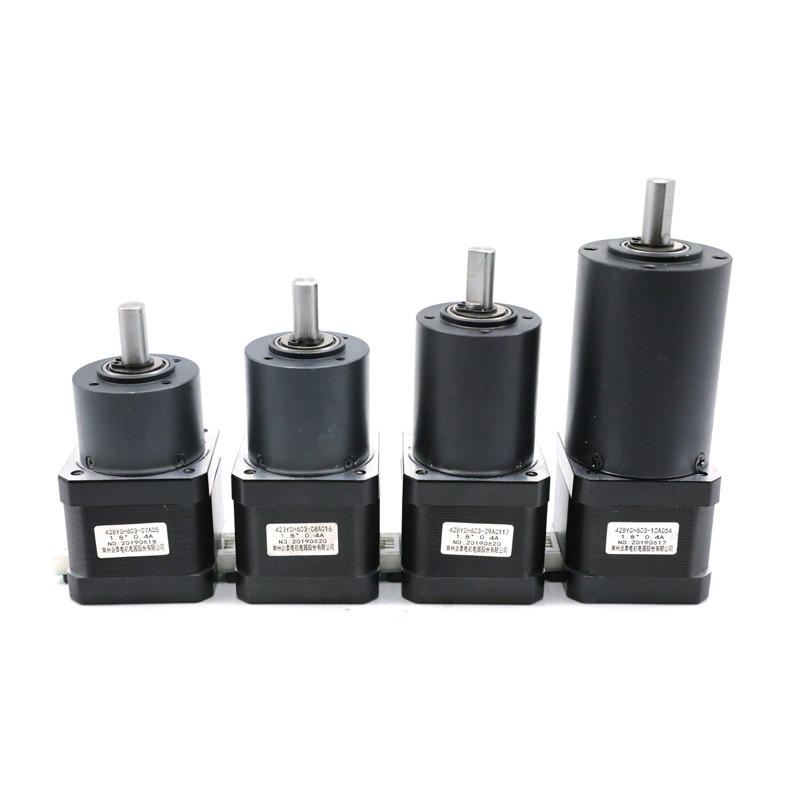

42BYGH 0.4-1.7A Current standard stepping planetary gearbox motor

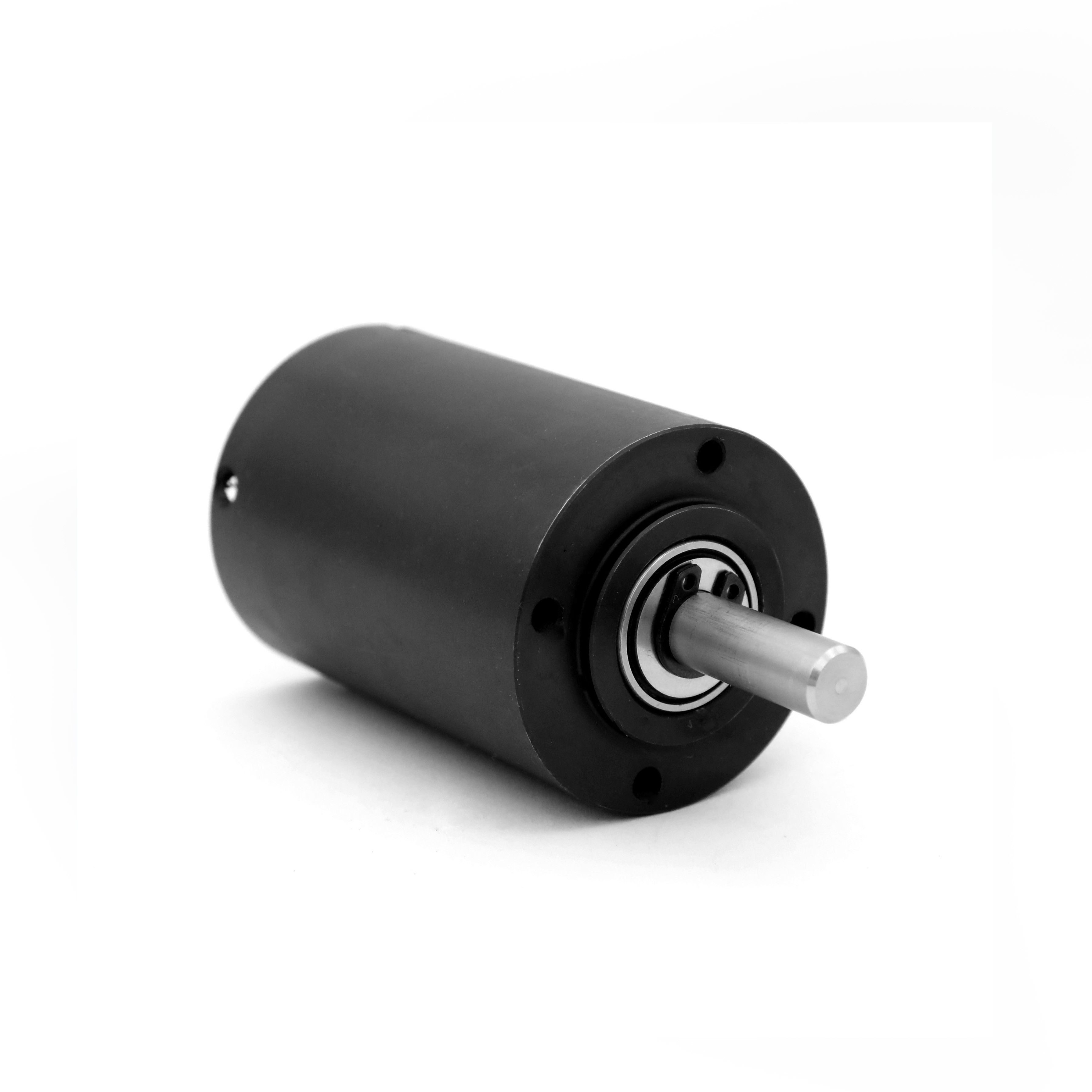

42BYGH series motor can match gearbox 36mm, 42mm. For the 36 mm gearbox, you can choose the material Zinc alloy and Powder metallurgy. The reduction ratio of 36mm Zinc alloy is 1/12. For more details please scroll down and check more information.
MOTOR PART Electrical Specification:
| MODEL | STEP ANGLE (°/STEP) |
LEAD WIRE (NO.) |
VOLTAGE (V) |
CURRENT (A/PHASE) |
RESISTANCE (Ω/PHASE) |
INDUCTANCE (MH/PHASE) |
HOLDING TORQUE (G.CM) |
MOTOR HEIGHT L(MM) |
MOTOR WEIGHT (KG) |
|---|---|---|---|---|---|---|---|---|---|
| 42BYGH208-52A | 1.8 | 4 | 12 | 0.4 | 30 | 42 | 2500 | 34 | 0.20 |
| 42BYGH243-03 | 1.8 | 4 | 2.6 | 1 | 2.6 | 3.2 | 1800 | 34 | 0.20 |
| 42BYGH622-28A | 1.8 | 4 | 4.8 | 1 | 4.8 | 6.0 | 2900 | 40 | 0.24 |
| 42BYGH613-68A | 1.8 | 4 | 2.5 | 1.7 | 1.5 | 2.5 | 3500 | 40 | 0.24 |
| 42BYGH705-07 | 1.8 | 4 | 12 | 0.3 | 40 | 80 | 4000 | 44 | 0.30 |
| 42BYGH721A | 1.8 | 6 | 10 | 0.25 | 40 | 36 | 2000 | 44 | 0.30 |
| 42BYGH801-36 | 1.8 | 6 | 12 | 0.4 | 30 | 22 | 3800 | 48 | 0.34 |
| 42BYGH872A | 1.8 | 4 | 2.8 | 1.7 | 1.65 | 2.8 | 4500 | 48 | 0.34 |
| 42BYGH910-02 | 1.8 | 4 | 5.1 | 1.5 | 3.4 | 8.0 | 8500 | 60 | 0.49 |
| 42BYGH905-13 | 1.8 | 4 | 3.15 | 1.5 | 2.1 | 5.0 | 6800 | 60 | 0.49 |
*Products can be customized by special request.
*Products can match gearbox 36, 42mm
Wiring Diagram
Mechanical Dimension
GEARBOX Electrical Specification:
Out diameter 36mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearings | ≤120 | ≤80 | ≤500 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/4 | 0.3 | 1.0 | 81% | 24.8 | 145 | 1 |
| 1/5 | ||||||
| 1/16 |
1.2
|
3.5
|
72% | 32.4 | 173 | 2 |
| 1/20 | ||||||
| 1/25 | ||||||
| 1/53 |
2.5
|
7.5 | 65% | 41.9 | 213 | 3 |
| 1/62 | ||||||
| 1/76 | ||||||
| 1/94 | ||||||
| 1/117 |
Mechanical Dimension
Out diameter 36mm Zinc alloy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Zinc alloy |
Porous bearings |
≤45 | ≤25 | ≤100 | ≤0.08 | ≤0.4 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/12 | 0.3 | 1.0 | 81% | 26.8 | 100 | 1 |
Mechanical Dimension
Out diameter 42mm Powder metallurgy
| Housing material | Bearing at output | Radial load(10mm from flange)N | Shaft axial load(N) | Shaft press-fit force max(N) | Radial play of shaft(mm) | Thrust play of shaft(mm) | Backlash at no-load (°) |
| Powder metallurgy | sleeve bearings | ≤120 | ≤80 | ≤500 | ≤0.03 | ≤0.1 | ≤1.5 |
| Reduction ratio | Rated tolerance torque (Nm) | Max momentary tolerance torque (Nm) | Efficiency% | Length (mm) | Weight(g) | Number of gear trains |
| 1/4 | 1.0 | 3.0 | 81% | 32.5 | 170 | 1 |
| 1/6 | ||||||
| 1/15 | 4.0 | 12 | 72% | 46.3 | 207 | 2 |
| 1/18 | ||||||
| 1/25 | ||||||
| 1/36 | ||||||
| 1/54 |
8.0
|
25
|
65%
|
60.1
|
267
|
3 |
| 1/65 | ||||||
| 1/90 | ||||||
| 1/112 | ||||||
| 1/155 | ||||||
| 1/216 | 10 | 30 | 65% | 60.1 | 267 |
Mechanical Dimension
