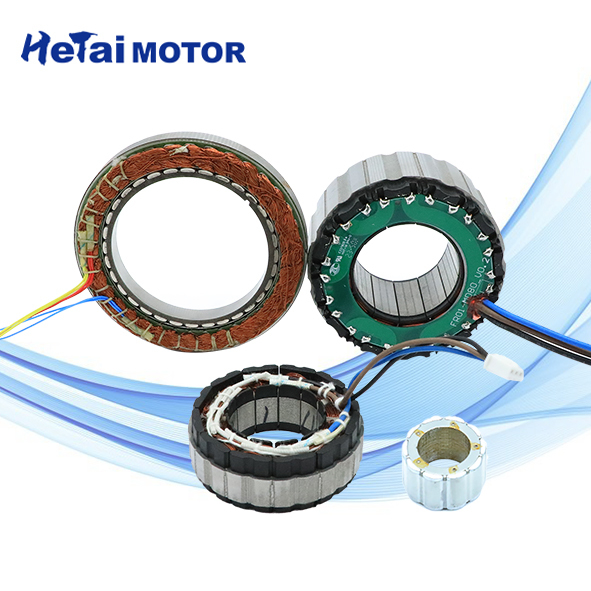

HETAI Frameless Motor 40mm 60mm 80mm 130mm

Name: HETAI Frameless Motor 40mm 60mm 80mm 130mm
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: Frameless Motor
Availability: InStock

Brand Name:	HeTai
Model Number:	Frameless Motor
MOQ:	50
Price:	USD
Delivery Time:	25 DAYS
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Rameless Motor

Power:

100W-1500W

Pole:

Voltage:

24V ,48V

Rated Current:

3.5A-48A

Rated Forque:

0.32NM-7.2NM

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

10000 PCS/MONTH

Highlight:

4 wire Gearbox Stepper Motors

1.8deg Gearbox Stepper Motors

1.8 stepper motor 42mm

Product Description

Hetai Motor Frameless Torque Motor Series Product Introduction

Product Overview:

Hetai Motor specializes in the R&D and production of frameless torque motor series, featuring advanced electromagnetic design and precision manufacturing for high-performance direct-drive solutions in industrial automation. Our products are widely used in robotics, medical equipment, semiconductor manufacturing, and other high-demand applications.

Key Advantages:

✅ High Precision Control – Direct-drive structure eliminates backlash, achieving positioning accuracy of ±0.01° .
✅ Compact & Lightweight – Frameless design saves 50%+ installation space and reduces weight by 30% .
✅ High Torque Density – Optimized magnetic circuit design delivers industry-leading torque-to-volume ratio .
✅ Maintenance-Free – Brushless structure ensures 20,000+ hours of service life .
✅ Flexible Integration – Customizable windings and mechanical interfaces for seamless system integration .

Product Specifications:

60 Series – Compact Frameless Motors

Model	Diameter (mm)	Height (mm)	Power (W)	Rated Torque (N·m)	Rated Speed (RPM)	Weight (kg)
60SF-S10	60	10	100	0.32	2000-4000	0.14
60SF-S15	60	15	150	0.46	2000-4000	0.22
60SF-S20	60	20	200	0.64	2000-4000	0.27
60SF-S30	60	30	300	0.955	2000-4000	0.43

80 Series – Mid-Power Frameless Motors

Model	Diameter (mm)	Height (mm)	Power (W)	Rated Torque (N·m)	Rated Speed (RPM)	Weight (kg)
80SF-S18	80	18	348	0.95	3500	0.45
80SF-S25	80	25	476	1.3	3500	0.57
80SF-S30	80	30	471	1.5	3000	0.65

130 Series – High-Torque Frameless Motors

Model	Diameter (mm)	Height (mm)	Power (W)	Rated Torque (N·m)	Rated Speed (RPM)	Weight (kg)
130SF-S34	130	34	960	3.8	2400	1.88
130SF-S40	130	40	1500	7.2	2000	2.04

HETAI Frameless Motor 40mm 60mm 80mm 130mm 0

Note: Full specification sheets and technical drawings available upon request.
