36MM Nema 14 Gearbox Brushless Motor Planetary 2 Nm

Name: 36MM Nema 14 Gearbox Brushless Motor Planetary 2 Nm
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: 36BL
Availability: InStock

Brand Name:	Hetai
Model Number:	36BL
MOQ:	50
Price:	USD
Delivery Time:	28-31
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Brushless DC Motors

Winding Type:

Star

Hall Effect Angle:

120° Electrical Angle

Insulation Class:

Ambient Temperature:

-20℃~+50℃

Insulation Resistance:

100MΩ Min.500VC DC

Dielectric Strength:

600VAC 1 Minute

Shaft Axial Load(N):

10N

Radial Load(10mm From Flange):

120N

Protection Level:

IP40

Match Gearbox Size:

32mm, 36mm

Gearbox Housing Material:

Powder Metallurgy, Zinc Alloy

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

5000pcs/month

Highlight:

Brushless Motor Planetary Gearbox

Brushless Motor And Gearbox

planetary gearbox for brushless motor

Product Description

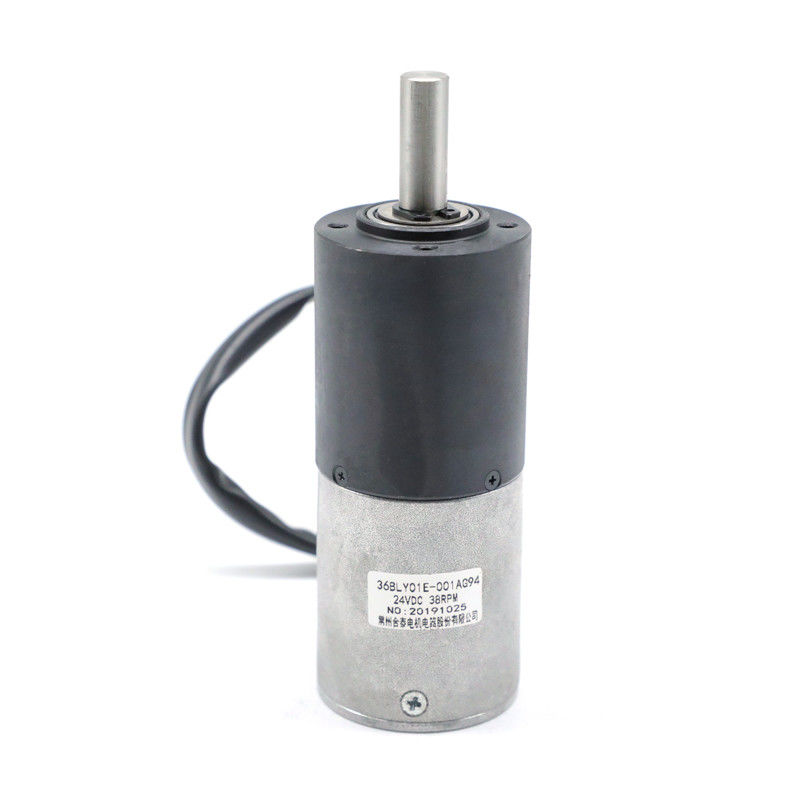

36BL nema14 CE ROHS ISO 12/24V 3000RPM 0.03Nm micro BLDC brushless motor

Model	Reduction Ratio	Gearbox diameter	Gearbox Housing Material	Voltage(V)	Power(W)	Speed(RPM)	Rated torque (Nm)
36BLY 01A-001AG76	76:1	36mm	Powder metallurgy	24	15	94	1.5
36BLY01E-001AG94	94:1	36mm	Powder metallurgy	24	8	38	2

The 36BL series is lightweight and space-saving, which also has high torque.

MOTOR PART Electrical Specification:

		Model
Specification	Unit	36BLY01
Number Of Phases	Phase	3
Number Of Poles	Poles	4
Rated Voltage	VDC	24
Rated Speed	Rpm	3000
Rated Current	A	2.0
Rated Torque	N.m	0.03
Rated Power	W	9.4
Peak Torque	mN.m	0.09
Peak Current	Amps	6
Torque Constant	N.m/A	0.015
Back EMF constant	V/kRPM	1.6
Body Length	mm	42
Weight	Kg	0.16

Mechanical Dimension

36MM Nema 14 Gearbox Brushless Motor Planetary 2 Nm 0

***Note: The products can be customized by your request. Please contact us for more details.

*Products can match gearbox 32, 36mm

Wiring Diagram:

ELECTRICAL CONNECTION TABLE
FUNCTION	COLOR
+5V	RED	UL1007 26AWG
HALL A	GREEN
HALL B	BLUE
HALL C	WHITE
GND	BLACK
PHASE A	BROWN
PHASE B	YELLOW
PHASE C	ORANGE

GEARBOX PART Electrical Specification:

32mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearings	≤120	≤80	≤500	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/4	0.3	1.0	81%	29.1	150	1
1/5
1/16	1.2	3.5	72%	38.1	185	2
1/23
1/33
1/67	2.5	7.5	65%	47.1	220	3
1/94
1/133
1/188

Mechanical Dimension

36MM Nema 14 Gearbox Brushless Motor Planetary 2 Nm 1

36mm Powder metallurgy

Housing material	Bearing at output	Radial load(10mm from flange)N	Shaft axial load(N)	Shaft press-fit force max(N)	Radial play of shaft(mm)	Thrust play of shaft(mm)	Backlash at no-load (°)
Powder metallurgy	sleeve bearings	≤120	≤80	≤500	≤0.03	≤0.1	≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/4	0.3	1.0	81%	24.8	145	1
1/5
1/16	1.2	3.5	72%	32.4	173	2
1/20
1/25
1/53	2.5	7.5	65%	41.9	213	3
1/62
1/76
1/94
1/117

Mechanical Dimension

36mm Zinc alloy

Housing material

Bearing at output

Radial load(10mm from flange)N

Shaft axial load(N)

Shaft press-fit force max(N)

Radial play of shaft(mm)

Thrust play of shaft(mm)

Backlash at no-load (°)

Zinc alloy

Porous

bearings

≤45

≤25

≤100

≤0.08

≤0.4

≤1.5

Reduction ratio	Rated tolerance torque (Nm)	Max momentary tolerance torque (Nm)	Efficiency%	Length (mm)	Weight(g)	Number of gear trains
1/12	0.3	1.0	81%	26.8	100	1

Mechanical Dimension

36MM Nema 14 Gearbox Brushless Motor Planetary 2 Nm 3

A BLDC motor takes the advantages of AC, DC, and Universal motor types and combines them into one unit. It has a long life, low maintenance, quiet operation, and variable speed ability of an AC motor; the high starting torque and linear speed-torque curve of a DC motor; and like both AC & DC motors, it works well with gearboxes. Brushless DC motors have a high power density, second only to the Universal motor, and they have the best efficiency rating of 65 to 80 %.
