Micro Brushless Permanent Magnet Motor Nema 23 57mm 24v Round Square Flange

Place of Origin China
Brand Name Hetai
Certification CE ROHS ISO
Model Number 57BL
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000pcs/month
Product Details
Product Name Brushless DC Motors Winding Type Star
Hall Effect Angle 120° Electrical Angle Insulation Class B
Ambient Temperature -20℃~+50℃ Insulation Resistance 100MΩ Min.500VC DC
Dielectric Strength 600VAC 1 Minute MAX Radial Force 75N (10mm From Front Flange)
MAX Axial Force 15N Shaft Type Single Shaft
High Light

Nema 23 57mm 24v

,

Nema 23 24v

,

Small Brushless Dc Motor Nema 23

Leave a Message
Product Description

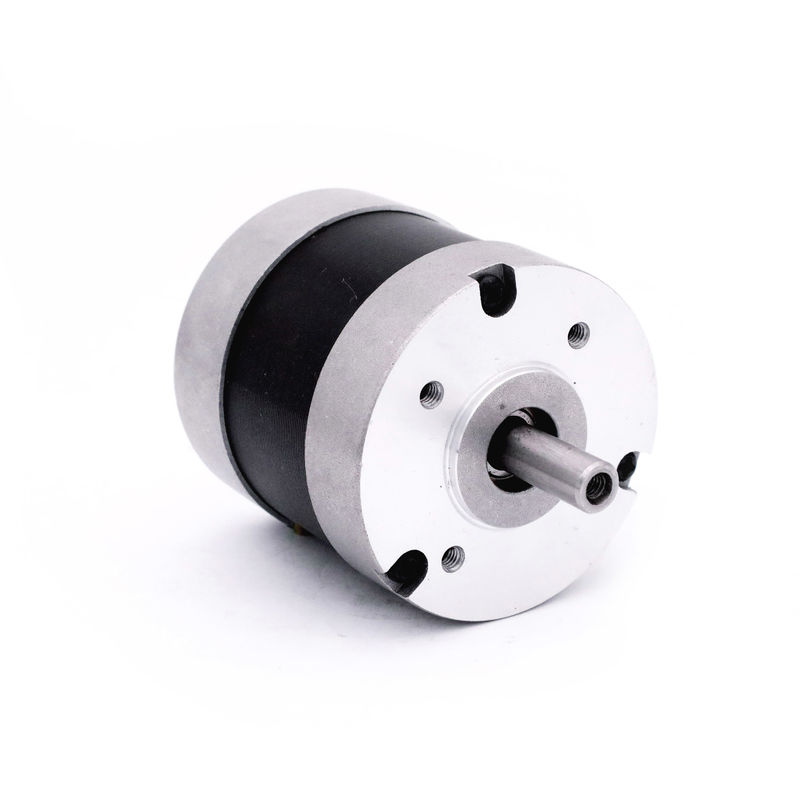

57BL series NEMA 23 micro 24V electric Brushless DC Motor 3000rpm

57BL01G 3 phase 4 poles Voltage 24V, Rated current 0.77A, Rated torque 0.057 Nm, Power 15W

57BL02A 3 phase 4 poles Voltage 24V, Rated current 1.87A, Rated torque 0.11 Nm, Power 34.5W

57BL03B 3 phase 4 poles Voltage 24V, Rated current 3.17A, Rated torque 0.18 Nm, Power 56W

57BL04A 3 phase 4 poles Voltage 24V, Rated current 3.67A, Rated torque 0.66 Nm, Power 69W

57BL05A 3 phase 4 poles Voltage 24V, Rated current 5.33A, Rated torque 0.33 Nm, Power 104W

57BL06 3 phase 4 poles Voltage 24V, Rated current 7A, Rated torque 0.44 Nm, Power 138W



For the 57BL series built-in drive brushless motor, it is more cost-effective & convenient for the user, which also increases the reliability.



Electrical Specification:



    Model Model Model Model Model Model
Specification Unit 57BL01G 57BL02A 57BL03B 57BL04A 57BL05A 57BL06
Number Of Phases Phase 3
Number Of Poles Poles 4
Rated Voltage VDC 24
Rated Speed Rpm 2500 3000 3000 3000 3000 3000
Rated Current A 0.77 1.87 3.17 3.67 5.33 7.00
Rated Torque N.m 0.057 0.11 0.18 0.22 0.33 0.44
Rated Power W 15 34.5 56 69 104 138
Peak Torque mN.m 0.17 0.33 0.54 0.66 0.99 1.32
Peak Current Amps 2.3 5.6 9.5 11 16 21
Torque Constant N.m/A 0.074 0.059 0.057 0.060 0.062 0.063
Back EMF constant V/kRPM 7.75 6.2 5.9 6.3 6.5 6.6
Body Length mm 41.5 46.5 56.5 66.5 86.5 106.5
Weight Kg 0.35 0.44 0.56 0.67 0.95 1.18



*Products can be customized with special requests.

*Products can match gearbox 42, 52, 56, 63 mm





Mechanical Dimension

Micro Brushless Permanent Magnet Motor Nema 23 57mm 24v Round Square Flange 0



Wiring Diagram

FUNCTION COLOR
+5V RED UL1007 26AWG
HALL A YELLOW
HALLB GREEN
HALLC BLUE
GND BLACK
PHASE A YELLOW UL1007 20AWG
PHASE B GREEN
PHASE C BLUE
