12v DC Brush Gear Motor Gearbox 90RPM For Medical Nutrition Pump

Place of Origin China
Brand Name Hetai
Certification CE ROHS ISO
Model Number 22PG2418-BL-104K
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 2-4 weeks
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000pcs/month
Product Details
Product Name Dc Brush Gear Motor Gearbox Housing Material Powdery Metallurgy
Rated Voltage 12V Rated Torque With Gearbox 0.1~0.3 N.m
No-load Speed (rpm) 91±10%rpm Reduction Ratio 104:1
Max Radial Load ≤35N (10mm From Front Flange) Shaft Axial Load ≤15N
Stall Torque ≥ 0.5NM Backlash At No-load (°) ≤1.5
High Light

12v DC Brush Gear Motor

,

90RPM DC Brush Gear Motor

,

Medical Nutrition Pump Dc Brush Motor

Leave a Message
Product Description

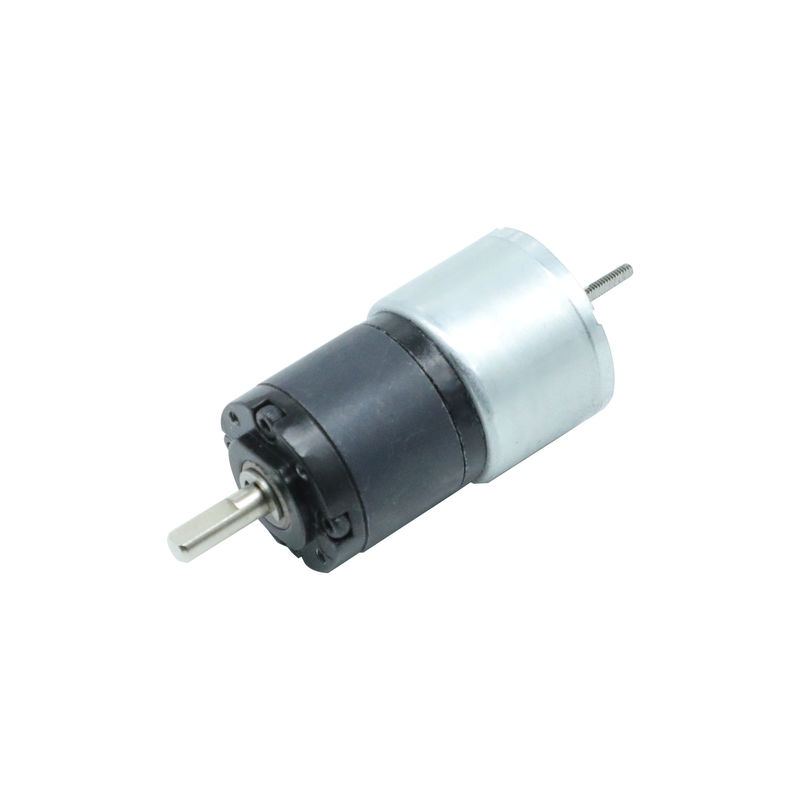

12V 90RPM 22mm Micro DC 12v Brush Motor Gearbox For Medical Nutrition Pump



Product Description



The gearbox motor  22PG2418-BL-104K has both front shaft and rear shaft. The material of the 22mm diameter gearbox is powdery metallurgy. The planetary gearbox works with a 22mm brush motor. The reduction ratio is 1/104, the rated maximum tolerance torque of the gearbox is 0.8NM. The rated voltage is 12V. The gearbox motor is applied for the medical nutrition pump.



Electrical Specification

Gearbox Motor SPECIFICATIONS
22mm Brush gear motor
Stall Torque N.m ≥0.5
Rated Voltage V 12
No-load Speed (rpm) Rpm 91±10%
Reduction RATIO   104:1


*Products can be customized by special request.





Mechanical Dimension

12v DC Brush Gear Motor Gearbox 90RPM For Medical Nutrition Pump 0

GEARBOX PART Electrical Specification:

22mm Powder metallurgy gearbox

Housing material Bearing at output Radial load(10mm from flange)N Shaft axial load(N) Shaft press-fit force max(N) Radial play of shaft(mm) Thrust play of shaft(mm) Backlash at no-load (°)
Powder metallurgy

Porous

bearing

≤35 ≤15 ≤80 ≤0.08 ≤0.4 ≤1.5



Reduction ratio Rated tolerance torque (Nm) Max momentary tolerance torque (Nm) Efficiency% Length (mm) Weight(g) Number of gear trains
1/4 0.1 0.3 81% 13.9 29 1
1/4.75
1/16 0.4 1.2 72% 32.4 52 2
1/19
1/22
1/26
1/76 0.8 2.4 65% 43.9 73 3
1/88
1/104
1/121
1/144


Application:

12v DC Brush Gear Motor Gearbox 90RPM For Medical Nutrition Pump 1



Gearbox Assembly



12v DC Brush Gear Motor Gearbox 90RPM For Medical Nutrition Pump 2
