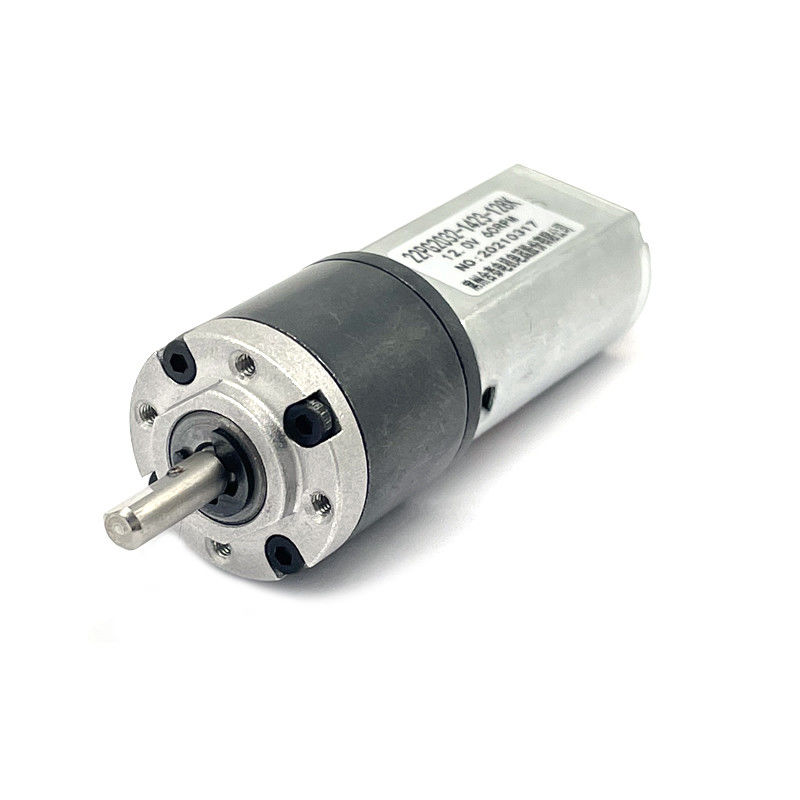

22mm Micro DC Brush Motor Gearbox 12V 50RPM 0.8W

  • 22mm Micro DC Brush Motor Gearbox 12V 50RPM 0.8W
  • 22mm Micro DC Brush Motor Gearbox 12V 50RPM 0.8W
  • 22mm Micro DC Brush Motor Gearbox 12V 50RPM 0.8W
  • 22mm Micro DC Brush Motor Gearbox 12V 50RPM 0.8W
  • 22mm Micro DC Brush Motor Gearbox 12V 50RPM 0.8W
Place of Origin China
Brand Name Hetai
Certification CE ROHS ISO
Model Number 22PG2032-1423-128K
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Dc Brush Gear Motor Gearbox Housing Material Powdery Metallurgy
Rated Voltage 12V Rated Speed 50±15% Rpm
No-load Speed (rpm) 60±10%rpm Rated Torque With Gearbox 0.15 NM
Reduction Ratio 128:1 Max Radial Load ≤35N (10mm From Front Flange)
Shaft Axial Load ≤15N Continuous Current ≤0.5A
High Light

22mm Micro DC Brush Motor

,

DC Brush Motor Gearbox

,

0.8W DC Brush Gear Motor
Leave a Message
Product Description

12V 50RPM 22mm 0.86 in micro DC 0.8W brush motor gearbox



The material of the 22PG2032-1423-128K gearbox is powdery metallurgy. The planetary gearbox works with a 22mm brush motor. The reduction ratio is 1/128, the rated maximum tolerance torque of the gearbox is 0.8NM. The rated voltage is 12V and rated speed at 50 ±15% rpm. It is space-saving and light-weighted. At the same time, the remarkable advantage of this motor is low noise as it consists of a metal gearbox.



Electrical Specification



Model
22mm Brush gear motor
Voltage (V)
12V
Rated Torque with gearbox (N.M)
0.15 N.m
Rated Speed (rpm)
50 ±15%
Stall torque (Nm)
≥0.7 Nm
Axial play clearance
0.5 Max
Motor SIze(mm)
22*22*54 mm


*Products can be customized by special request.





Mechanical Dimension

22mm Micro DC Brush Motor Gearbox 12V 50RPM 0.8W 0

GEARBOX PART Electrical Specification:

22mm Powder metallurgy gearbox

Housing material Bearing at output Radial load(10mm from flange)N Shaft axial load(N) Shaft press-fit force max(N) Radial play of shaft(mm) Thrust play of shaft(mm) Backlash at no-load (°)
Powder metallurgy

Porous

bearing

 ≤35 ≤15 ≤80 ≤0.08 ≤0.4 ≤1.5



Reduction ratio Rated tolerance torque (Nm) Max momentary tolerance torque (Nm) Efficiency% Length (mm) Weight(g) Number of gear trains
1/4 0.1 0.3 81% 13.9 29 1
1/4.75
1/16 0.4 1.2 72% 32.4 52 2
1/19
1/22
1/26
1/76 0.8 2.4 65% 43.9 73 3
1/88
1/104
1/121
1/144


Application:

Wheel drives

Track drives

Conveyors

Slew drives

Hoist drives

Mixing

Winch drives

Pumps

Coil tubing injectors

Auger & drilling drives

Cutter head drives



Gearbox Assembly



22mm Micro DC Brush Motor Gearbox 12V 50RPM 0.8W 1
