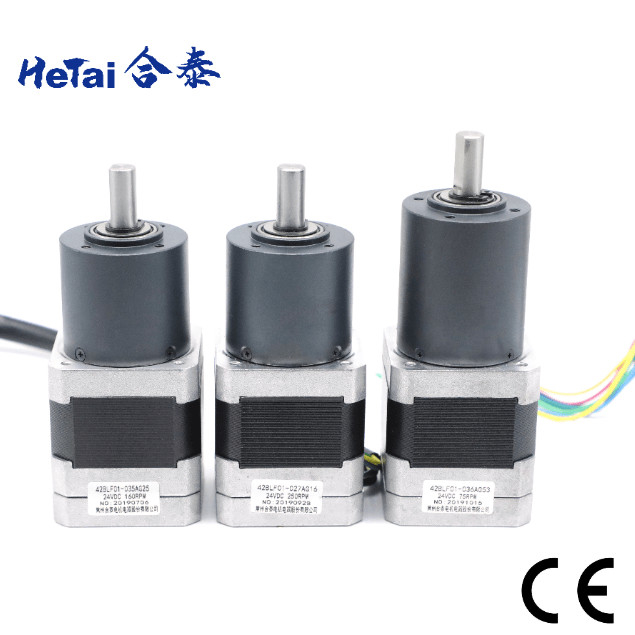

Planetary Gearbox Brushless Motor 24v 0.8A Nema 17 42mm

Place of Origin China
Brand Name Hetai
Certification CE ROHS ISO
Model Number 42BLF01-027AG16
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000pcs/month
Product Details
Product Name Brushless Gearbox Motor Winding Type Star
Nominal Voltage 24 V Resistance 2.2 OHMS
No-load Speed 5000± 10% RPM No-load Currwnt 0.8 Apms Max
Ambient Temperature -20℃~+50℃ Insulation Resistance 100MΩ Min.500VC DC
Dielectric Strength 600VAC 1 Minute Hall Effect Angle 120° Electrical Angle
Protection Level IP40 Cetification CE ROHS ISO
High Light

Planetary Gearbox Brushless Motor 24v

,

Planetary Gearbox Brushless Motor 42mm

,

0.8A Gearbox Brushless Motor

Leave a Message
Product Description

Gearbox Brushless Motor 24v 0.8A Nema 17 42mm 42BLF01-027AG16 With Planetary Gearbox



Hetai sends its products to USA, Europe, Southeast Asia and all-around China. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment...



A planetary gear motor mimics a planetary rotating system; an input shaft drives a sun gear, also known as a sun gear, which then turns surrounding gears, also known as planet gears. Usually, planetary gears are used as reducers. They are used to slow down the motor and increase torque. Torque is the working power of the machine.



Nema 17 Brushless Gearbox Motor Electrical Specification



Motor Part
Manufacture Model 42BLF01-027AG16
Rated Output Power W 26
Resistance OHMS 2.2
Nominal Voltage VDC 24
No Load Speed RPM 5000± 10%
No Load Current Amps Max 0.8
Rated Speed Rpm 4000± 10%
Rated Torque N.m 0.063
Peak Torque N.m 0.12
Torque Constant N.m/A 0.042
Back EMF constant V/kRPM 4.4
SPECIFICATIONS WITH PLANETARY GEAR
Rated Torque N.m 0.7
Rated Speed Rpm 250± 10%
RATIO   16:1


*Products can be customized by special request.



Wiring Diagram



FUNCTION COLOR
+5V RED UL1007 26AWG




HALL A YELLOW
HALLB GREEN
HALLC BLUE
GND BLACK
PHASE A YELLOW UL3265 22AWG


PHASE B GREEN
PHASE C BLUE

Mechanical Dimension



Planetary Gearbox Brushless Motor 24v 0.8A Nema 17 42mm 0

GEARBOX 36mm Electrical Specification:



Housing material Bearing at output Radial load(10mm from flange)N Shaft axial load(N) Shaft press-fit force max(N) Radial play of shaft(mm) Thrust play of shaft(mm) Backlash at no-load (°)
Powder metallurgy sleeve bearings ≤120 ≤80 ≤500 ≤0.03 ≤0.1 ≤1.5



Reduction ratio Rated tolerance torque (Nm) Max momentary tolerance torque (Nm) Efficiency% Length (mm) Weight(g) Number of gear trains
1/4 0.3 1.0 81% 24.8 145 1
1/5
1/16 1.2 3.5 72% 32.4 173 2
1/20
1/25
1/53 2.5 7.5 65% 41.9 213 3
1/62
1/76
1/94
1/117



Mechanical Dimension

Planetary Gearbox Brushless Motor 24v 0.8A Nema 17 42mm 1



Other Gearbox Ratio

Planetary Gearbox 42mm
Reduction ratio Rated tolerance torque (Nm) Max momentary tolerance torque (Nm) Efficiency% Length (mm) Weight(g) Number of gear trains
1/4 1.0 3.0 81% 32.5 170 1
1/6
1/15 4.0 12 72% 46.3 207 2
1/18
1/25
1/36
1/54

8.0



25



65%



60.1



267



3
1/65
1/90
1/112
1/155
1/216 10 30 65% 60.1 267



Planetary Gearbox 56mm
Reduction ratio Rated tolerance torque (Nm) Max momentary tolerance torque (Nm) Efficiency%

Length

L

(mm)

Weight(g) Number of gear trains
1/4 2.0 6.0 81% 41.3 491 1
1/6
1/15 8.0 25 72% 59.6 700 2
1/18
1/26
1/47 16 50 72% 59.6 700 2
1/66



MANUFACTURE SCENE



Planetary Gearbox Brushless Motor 24v 0.8A Nema 17 42mm 2



             LABORATORY                                  ROTOR GRINDING                                   CNC CENTER

                                                                              OUTER CIRCLE



Planetary Gearbox Brushless Motor 24v 0.8A Nema 17 42mm 3



             AUTOMATIC                                          ASSEMBLY LINE                               ASSEMBLY LINE

         ASSEMBLY LINE



Planetary Gearbox Brushless Motor 24v 0.8A Nema 17 42mm 4



        LINEAR STEP MOTOR                               GEARBOX                                  STATOR AFTER WINDING



Planetary Gearbox Brushless Motor 24v 0.8A Nema 17 42mm 5



        BREAKDOWN TEST                            SERVO MOTOR TEST                    DIMENSION INSPECTION

Certification

Planetary Gearbox Brushless Motor 24v 0.8A Nema 17 42mm 6
Brushless Dc Gear Motor 0.1 N.M-16 N.M Nema 14 Nema 17 Nema 23 24V Electric Motor 9 Brushless Dc Gear Motor 0.1 N.M-16 N.M Nema 14 Nema 17 Nema 23 24V Electric Motor 10 Brushless Dc Gear Motor 0.1 N.M-16 N.M Nema 14 Nema 17 Nema 23 24V Electric Motor 11

Stepper motor ROHS report

Date: June 09, 2021

BLDC Motor ROHS report

Date: June 09, 2021

CE cetificate
Brushless Dc Gear Motor 0.1 N.M-16 N.M Nema 14 Nema 17 Nema 23 24V Electric Motor 12 Brushless Dc Gear Motor 0.1 N.M-16 N.M Nema 14 Nema 17 Nema 23 24V Electric Motor 13
IATF 16949: 2016
Valid until: 02 June 2024
ISO 9001: 2015
Valid until: 02 June 2024


Why Choose us

We offer you:

Engineering Support

Our professional team can help you to find right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as: robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment and so on.

Planetary Gearbox Brushless Motor 24v 0.8A Nema 17 42mm 12 Planetary Gearbox Brushless Motor 24v 0.8A Nema 17 42mm 13 Planetary Gearbox Brushless Motor 24v 0.8A Nema 17 42mm 14
Find Customise Optimise

Our team can help you find most suitable motor for the application from o ur vast selection of motors

We can design and customise the performance and exterior for your pecific use or assembly For OEM projects, we have over 15 years experience od solving different problems in various application. We improve our product together with our customer.

Manufacturing Support

Regardless of the volume of the order, we will provide the same service. Our engineering team is able to provide you with quick and accurate prototypes based on your custom requirements.

Planetary Gearbox Brushless Motor 24v 0.8A Nema 17 42mm 15 Planetary Gearbox Brushless Motor 24v 0.8A Nema 17 42mm 16 Planetary Gearbox Brushless Motor 24v 0.8A Nema 17 42mm 17
Prototypes Standard Batch High Volume Batch
1-10pcs 500-5000pcs over 5000pcs

Large-scale production

Our Factory was founded in 1999 and the workshop area is over 15,000㎡. We have own manufacturing line and CNC machining center, including precision CNC universal grinder brand name (Sweden) , CNC brand name (Germany), DMG lathe and milling, DMG lathe, Mahr measuring instrument, Chinese precision cylindrical grinding machine, CNC lathe machine, automatic multi-head winding machine,automatic assembling line and so on.
