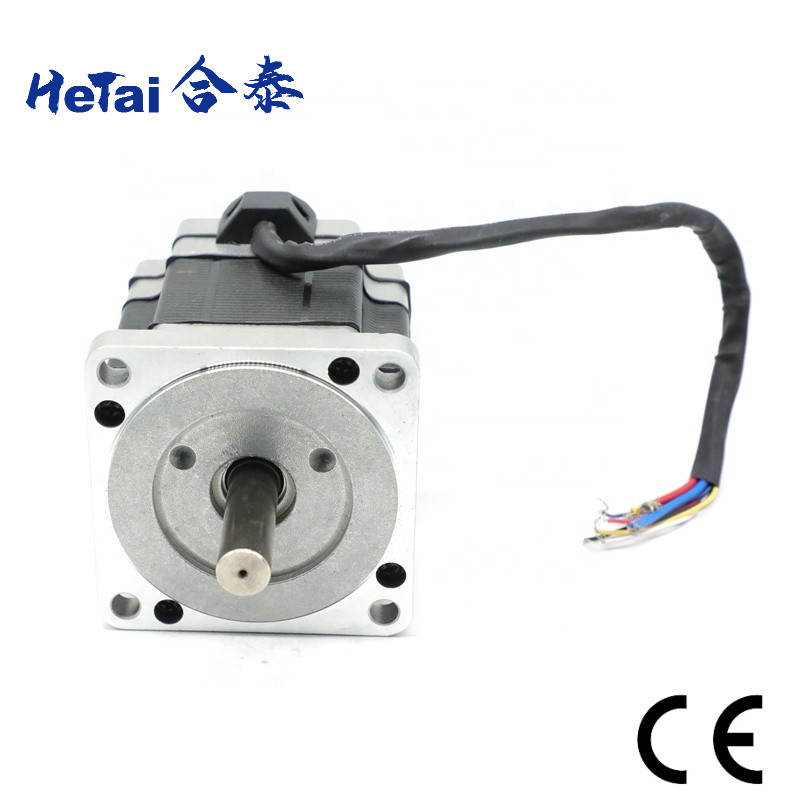

8 Pole 3 Phase Brushless Dc Motor Customizable 48v Nema 34 1500Rpm

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 86BLF02L-001
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 25 DAYS
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 PCS/MONTH
Product Details
Product Name Brushless DC Motor Nominal Voltage 48V
Hall Effect Angle 120° Electrical Anglel Winding Type Star
No-load Speed 2000 Rpm No-load Current 0.7 Apms
Rated Speed 1500± 300 Rpm Back Emf Constant 24 V/kRPM
Rated Torque 1 N.m Torque Constant 0.229 N.m/A
Ambient Temperature -20℃~+50℃ Max Radial Force 22 0N (10mm From Front Flange)
Max Axial Force 60 N Insulation Class B
High Light

3 Phase Brushless Dc Motor 48v

,

Customizable 8 Pole Brushless Dc Motor

,

1500Rpm 3 Phase Bldc Motor

Leave a Message
Product Description

Brushless Dc Motor 8 Pole 3 Phase customizable 48v Nema 34 1500Rpm 0.95OHMS 86BLF02L-001



The BLDC motor is used in low power application. They have many advantages like low cost, simplicity, reliability, good performance, long life. Participate in Electric Drives Certification Contest of the Month Now! Due to low inertia, BLDC motors have faster acceleration.



Based on the above advantages, our company specializes in the production of hybrid stepping motors, brushless DC motors, servo motors, gearbox motors, etc. Products are used in robots, packaging machinery, textile machinery, medical equipment, printing machinery, intelligent logistics equipment... Hetai products are also exported to the United States, Europe, Southeast Asia and all over the country.



Electrical Specification



Specification Unit 86BLF02L-001
Number Of Phases Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 48
Rated Speed Rpm 1500± 300
Rated Current A 0.7
Rated Torque N.m 1
No-load Speed Rpm 2000
No-load Current Amps 0.7
Torque Constant N.m/A 0.229
Back EMF constant V/kRPM 24
Insulation Class   B

*Products can be customized by special request.


 Wiring Diagram



FUNCTION COLOR
+5V WHT UL1007 26AWG
HALL A RED
HALLB YEL
HALLC BLU
GND BLK
PHASE A RED UL1015 18AWG
PHASE B YEL
PHASE C BLU



 Mechanical Dimension
