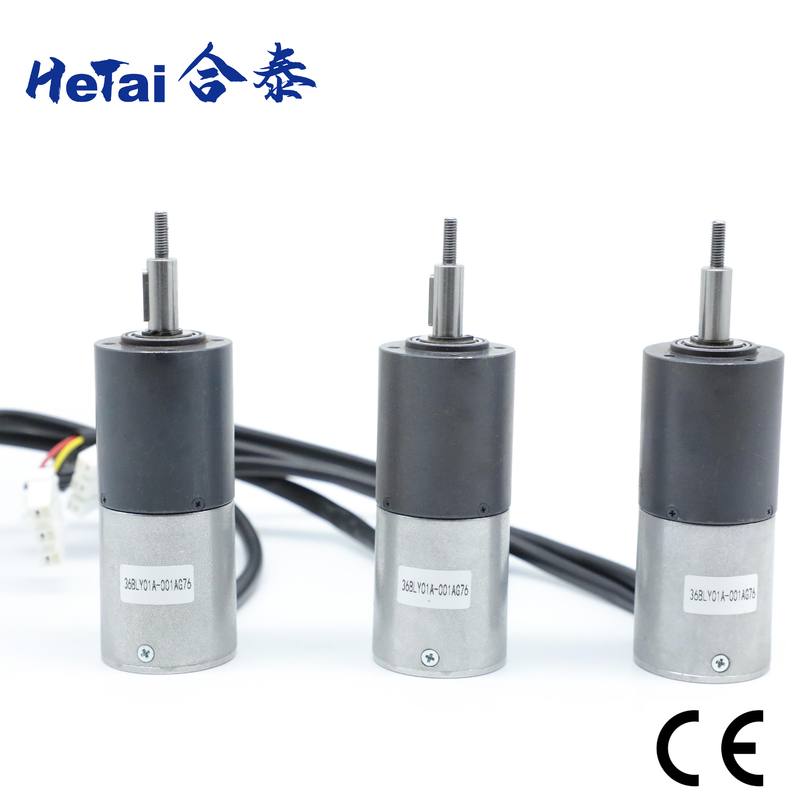

Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm

  • Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm
  • Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm
  • Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm
  • Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm
  • Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm
Place of Origin China
Brand Name Hetai
Certification CE ROHS ISO
Model Number 36BLY01A-AG76
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Gearbox Brushless Motor Voltage 24 V
Rated Speed 94 RPM Rated Torque 1.5 N.m
Reduction Ratio 1/76 Resistance 2.4 OHMS
No-load Speed 8900 Rpm Ambient Temperature -20℃~+50℃
Insulation Resistance 100MΩ Min.500VC DC Winding Type Star
Output Power 15W Certification CE ROHS ISO
High Light

Nema14 Brushless Geared Motor

,

2.4 Ohms Brushless Geared Motor

,

Planetary Gearbox Brushless Motor 36mm
Leave a Message
Product Description

Brushless Geard Motor Factory Price 36BLY01A-AG76 Nema14 24 V 2.4 Ohms



Changzhou Hetai Automobile is an experienced motor manufacturer. For more than 20 years, Hetai has been committed to providing customers with professional electrical integration design and automation strategies.



With exceptional torque and speed, higher efficiency and package sizes suited to meet your needs, brushless DC motors meet even the most stringent requirements. A brushless DC motor offers excellent speed and position control, long life, and high torque density.This family of small dc motors helps you address a wide range of specific requirements for torque and speed while providing decreased iron losses, improved efficiency and cooler operation.

Electrical Specification:



    Model
Motor Part   36BLY01A-AG76
Resistance OHMS 2.4
Nominal Voltage VDC 24
No-load Speed Rpm 8900
No-load Current Apms 0.5
Rated Speed Rpm 7100± 200
Rated Torque N.m 0.03
Torque Constant N.m/A 0.015
Back EMF constant V/kRPM 1.6
MOTOR SPECIFICATIONS WITH PLANETARY GEAR
Rated Torque N.m 1.5
Rated Speed Rpm 94
Ratio   76:1



*Products can be customized by special request.



Wiring Diagram



FUNCTION COLOR
+5V RED







UL3226 26AWG




HALL A BLUE
HALL B GREEN
HALL C WHITE
GND BLACK
PHASE A RED





UL1330 22AWG


PHASE B YELLOW
PHASE C BLACK



Mechanical Dimension



Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm 0

Planetary Gearbox 36mm



Housing material Bearing at output Radial load(10mm from flange)N Shaft axial load(N) Shaft press-fit force max(N) Radial play of shaft(mm) Thrust play of shaft(mm) Backlash at no-load (°)
Powder Metallurgy Sleeve Bearings ≤120 ≤80 ≤500 ≤0.03 ≤0.1 ≤1.5



Planetary Gearbox 36mm
Reduction ratio Momentary allowable load(Nm) Length(mm) Number of gear trains
1/4 1.0 24.8 1
1/5
1/16 3.5 32.4 2
1/20
1/25
1/53 7.5 41.9 3
1/62
1/76
1/94
1/117



Mechanical Dimension



Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm 1

Certificate

Brushless Dc Gear Motor 0.1 N.M-16 N.M Nema 14 Nema 17 Nema 23 24V Electric Motor 9 Brushless Dc Gear Motor 0.1 N.M-16 N.M Nema 14 Nema 17 Nema 23 24V Electric Motor 10 Brushless Dc Gear Motor 0.1 N.M-16 N.M Nema 14 Nema 17 Nema 23 24V Electric Motor 11

Stepper motor ROHS report

Date: June 09, 2021

BLDC Motor ROHS report

Date: June 09, 2021

CE cetificate
Brushless Dc Gear Motor 0.1 N.M-16 N.M Nema 14 Nema 17 Nema 23 24V Electric Motor 12 Brushless Dc Gear Motor 0.1 N.M-16 N.M Nema 14 Nema 17 Nema 23 24V Electric Motor 13
IATF 16949: 2016
Valid until: 02 June 2024
ISO 9001: 2015
Valid until: 02 June 2024

​MANUFACTURE EQUIPMENT



Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm 7



              CNC CENTER                                     ROTOR GRINDING                            LASER SPOT WELDER

                                                                                   OUT CIRCLE



Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm 8



    AUTOMATIC MULTI-HEAD             AUTOMATIC MULTI-HEAD                WINDING MACHINE

         WINDING MACHINE                         WINDING MACHINE



Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm 9



             AUTOMATIC                                       ASSEMBLY LINE                               ASSEMBLY LINE

            ASSEMBLY LINE



Brushless Motor Final Inspection



Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm 10



       Measure the Motor                              Length Measure the Shaft              Length Measure the Ouler Circle



Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm 11



     Measure the Screw Hole                  Measure the Length of Wire                 Measure the Length of PVC

                  Distance



Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm 12



           Test the Resistance                                         Listening                                             Test the speed



Package&Delivery



Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm 13

Nema14 Brushless Geared Motor 36BLY01A-AG76 24 V 2.4 Ohms 36mm 14



FAQ



1.Are you factory?

Yes, we are factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in
China. Main product including hybrid stepper motor, brushless DC motor, servo motor and planetary gearbox.

2. Do you have Other contact info?
Yes, please email us: info@ht-motor.com 3. How can we get your catalog?
Please visit below website to download it :https://new.ht-motor.net/index.php?m=content&c=index&a=lists&catid=136

3.Can I test sample?
Yes, samples and freight are charged.

4.Can I get Customized product?
Sure, all the products can be customized based in special request.

5.How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.

6. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept

7. Is this your final price? May i have the discount?
Our price is the factory price. If you have large quantity, we can negotiate about the discount.

8.What is the Warranty for your products?
Our warranty is for one year. If any quality problems occured on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
