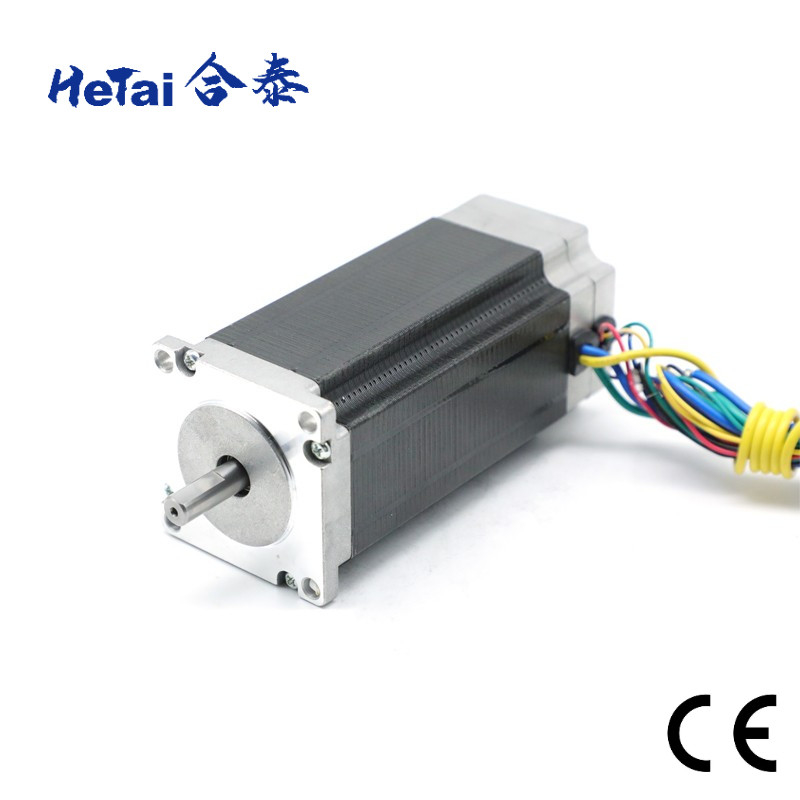

Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF

  • Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF
  • Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF
  • Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF
  • Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF
  • Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF
Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 57BLF04A-001
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 25 DAYS
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Brushless DC Motor Winding Type Star
Hall Effect Angle 120° Electrical Angle Nominal Voltage 36 VDC
Torque C0.136 N.m/Aonstant 0.09 N.m/A Insulation Class B
No-load Speed 3800 RPM No-load Current 1 AMPS
Rated Speed 3000± 200 RPM Rated Torque 0.8 N.m
Back Emf Constant 9.47 V/KRPM Max Radial Force 75 N (10mm From Front Flange)
Max Axial Force 15 N IP Level IP40
High Light

Nema23 Brushless Dc Motor 57mm

,

36V Brushless Dc Motor

,

3800 RPM Bldc Brushless Motor
Leave a Message
Product Description

Brushless Dc Motor Nema 23 57mm 36 V Stable Performance Wholesale 57BLF



A Brushless DC Electric Motor (BLDC) is an electric motor powered by a direct current voltage supply and commutated electronically instead of by brushes like in conventional DC motors. BLDC motors are more popular than the conventional DC motors nowadays, but the development of these type of motors has only been possible since the 1960s when semiconductor electronics were developed.



Both types of motors consist of a stator with permanent magnets or electromagnetic coils on the outside and a rotor with coil windings that can be powered by direct current on the inside. When the motor is powered by direct current, a magnetic field will be created within the stator, either attracting or repelling the magnets in the rotor. This causes the rotor to start spinning.



Electrical Specification



ROTATION: CCW SEE FROM LEAD END



Manufacture Model Unit 57BLF04A-001
Nominal Voltage VDC 36
Resistance OHMS 0.4
Rated Speed Rpm 3000± 200
Rated Torque N.m 0.8
No-load Speed Rpm 3800
No-load Current Amps 1
Torque Constant N.m/A 0.09
Back EMF constant V/kRPM 9.47
Insulation Class   B


Wiring Diagram



ELECTRICAL CONNECTION TABLE
+5 V RED UL 1007 26 AWG
HALL A YELLOW
HALL B GREEN
HALL C BLUE
GND BLACK

PHASE A

 YELLOW UL 1050 20 AGW
PHASE B GREEN
PHASE C BLUE



Mechanical Dimension

Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 0

Product Range



Product Name External Diameter Voltage Range  Power Range Power Range Rated torque
Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 1 Sever Motor 40 mm-130 mm 24V, 36V, 48V, 310V 100 W-3000 W 0.12 N.m-20 N.m
  Product Name External Diameter Rated Tolerance Torque Momentary Tolerance Torque Efficiency
Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 2 Planetary Gearbox&Gearbox Motor 22 mm-63 mm 0.1 N.m-20 N.m 0.3 N.m-60 N.m 65 %, 72%, 81%
  Product Name External Diameter Speed Range Power Range Rated torque
Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 3 Dc Brushless Motor 28 mm-110 mm 300 Rpm-10000 Rpm 8 W-2000 w 0.02 N.m-6.5 N.m
  Product Name External Diameter Step angle Holding Torque Inductance Range
Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 4 Stepping Motor 28 mm-110 mm 0.9, 1.2, 1.8 1 Kg.cm-33 Kg.cm 1 mh-42 mh





Brushless Motor Final Inspection



Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 5



        Measure the Motor Length              Measure the Shaft Length                   Measure the Ouler Circle



Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 6



        Measure the Screw Hole                Measure the Length of Wire                Measure the Length of PVC

                    Distance



Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 7



        Test the Resistance                                            Listening                                           Test the speed



Certificate



Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 8 Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 9 Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 10

Stepper motor ROHS report

Date: June 09, 2021

BLDC Motor ROHS report

Date: June 09, 2021

CE cetificate
Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 11 Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 12
IATF 16949: 2016
Valid until: 02 June 2024
ISO 9001: 2015
Valid until: 02 June 2024



Why Choose us

We offer you:

Engineering Support

Our professional team can help you to find right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as: robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment and so on.

Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 13 Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 14 Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 15
Find Customise Optimise
Our team can help you find most suitable motor for the application from o ur vast selection of motors We can design and customise the performance and exterior for your pecific use or assembly For OEM projects, we have over 15 years experience od solving different problems in various application. We improve our product together with our customer.

Manufacturing Support

Regardless of the volume of the order, we will provide the same service. Our engineering team is able to provide you with quick and accurate prototypes based on your custom requirements.

Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 16 Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 17 Nema 23 Brushless Dc Motor 57mm 36 V Stable Performance 57BLF 18
Prototypes Standard Batch High Volume Batch
1-10pcs 500-5000pcs over 5000pcs

Large-scale production

Our Factory was founded in 1999 and the workshop area is over 15,000㎡. We have own manufacturing line and CNC machining center, including precision CNC universal grinder brand name (Sweden) , CNC brand name (Germany), DMG lathe and milling, DMG lathe, Mahr measuring instrument, Chinese precision cylindrical grinding machine, CNC lathe machine, automatic multi-head winding machine,automatic assembling line and so on

Tags:

bldc motor nema 17

Bldc Motor 48 Volt

Nema 17 42mm
