80mm Frameless Servo Motor 1NM 360W 48V 3500RPM 10A

Place of Origin China
Brand Name He Tai
Certification CE ROHS ISO
Model Number 80SF
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 25 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 PCS/MONTH
Product Details
Product Name Frameless Servo Motor Rated Voltage 48 VDC
No Of Poles 10 Poles Rotor Length 16
Rated Power 360W Stator Length 13
Rated Speed 3500 RPM Rated Current 10A
Rated Torque 1N.m
High Light

80mm Frameless Servo Motor

,

Frameless Servo Motor 1NM

,

3500RPM 48V Servo Motor

Leave a Message
Product Description

80mm Frameless Servo Motor 1NM 360W 48V 3500RPM 10A

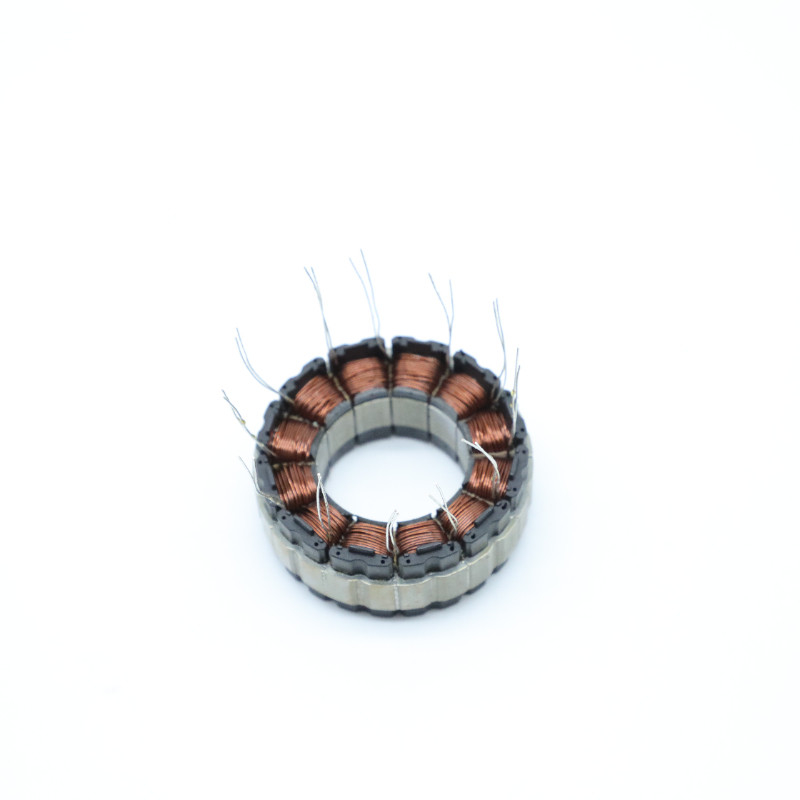

The 80SF frameless motor consists of rotor and stator components which are built into a machine assembly to transmit torque to a load. It is typically integrated with other components, including a housing, shafting, bearings, feedback device and other elements to complete the servo system. The rotor portion usually consists of high energy rare earth magnets fastened to a hub which is mounted on a shaft and bearing assembly. The stator portion consists on the windings and is mounted within a housing, which can be part of the machine structure.



Electrical Specification:



Rated Speed Rpm 3500
Rated Current A 10
Rated Torque N.m 1
Maximum Torque N.m 2
Resistance Line-Line Ω 0.18
Inductance Line-Line mH 1
Torque Constant N.m/A 0.1
Insulation Class   f



Mechanical Dimension



80mm Frameless Servo Motor 1NM 360W 48V 3500RPM 10A 0



80mm Frameless Servo Motor 1NM 360W 48V 3500RPM 10A 1
