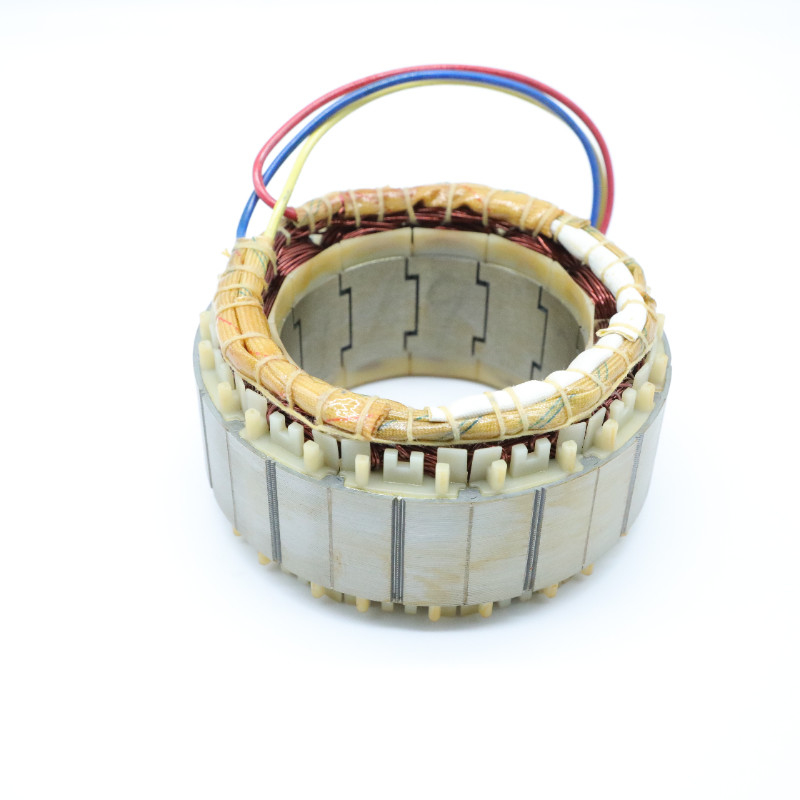

130mm Frameless Servo Motor 3.8NM 960W 10000RPM

Place of Origin China
Brand Name He Tai
Certification CE ROHS ISO
Model Number 130SF
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 25 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 PCS/MONTH
Product Details
Product Name Frameless Servo Motor Rated Power 960W
Outer Diameter Of Stator 123 Inner Diameter Of Stator 45
Stator Length 54 DC Link Voltage 48 VDC
No Of Poles 10 Poles Insulation Class F
High Light

130mm Frameless Servo Motor

,

3.8 NM Frameless Servo Motor

,

960W High Precision Servo Motor

Leave a Message
Product Description

130mm Frameless Servo Motor 3.8NM 960W 10000RPM



Frameless motors offer such advantage :

High torque density

Rare-earth magnets on the rotor ring generate twice as strong a magnetic field as ferrite ones. Star winding allows maintaining stable torque delivery even at slow rotation rates.

Compact size and low weight

Direct-drive motors have small size but boast high power-to-weight ratio. Easy to fit into tight spaces and require no additional fittings or accessories to transmit the moving force to driven machines.

Supplied as rotor-and-stator kits with no shaft, the engines are easy to assemble and mount. Allow for multiple drive mechanism configurations, depending on application specifics.



Electrical Specification:

Rated Speed Rpm 2400
Rated Current A 23
Rated Torque N.m 3.8
Maximum Torque N.m 5.2
Resistance Line-Line Ω 0.038
Inductance Line-Line mH 0.36
Torque Constant N.m/A 0.09
Back EMF constant V/kRPM 10



Mechanical Dimension

130mm Frameless Servo Motor 3.8NM 960W 10000RPM 0



130mm Frameless Servo Motor 3.8NM 960W 10000RPM 1



Changzhou Hetai Motors

Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.



Experienced Manufacturer
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.


Market Range Of HeTai

130mm Frameless Servo Motor 3.8NM 960W 10000RPM 2



Product Range Of HeTai

130mm Frameless Servo Motor 3.8NM 960W 10000RPM 3



Materials Of HeTai

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 1

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 2

Hetai purchases high-quality raw materials, regardless of cost, only to produce high-quality and high-performance products.



Servo Motor Assembly Line

130mm Frameless Servo Motor 3.8NM 960W 10000RPM 6130mm Frameless Servo Motor 3.8NM 960W 10000RPM 7



Servo application field

130mm Frameless Servo Motor 3.8NM 960W 10000RPM 8



Shape Inspection Of Frameless Servo Motor

130mm Frameless Servo Motor 3.8NM 960W 10000RPM 9

Hetai has several sophisticated instruments and equipment,such as Laboratory,Rotor Grinding Outer Circle,CNC Center.We also have several fully automatic modern assembly lines and several test workshops.
