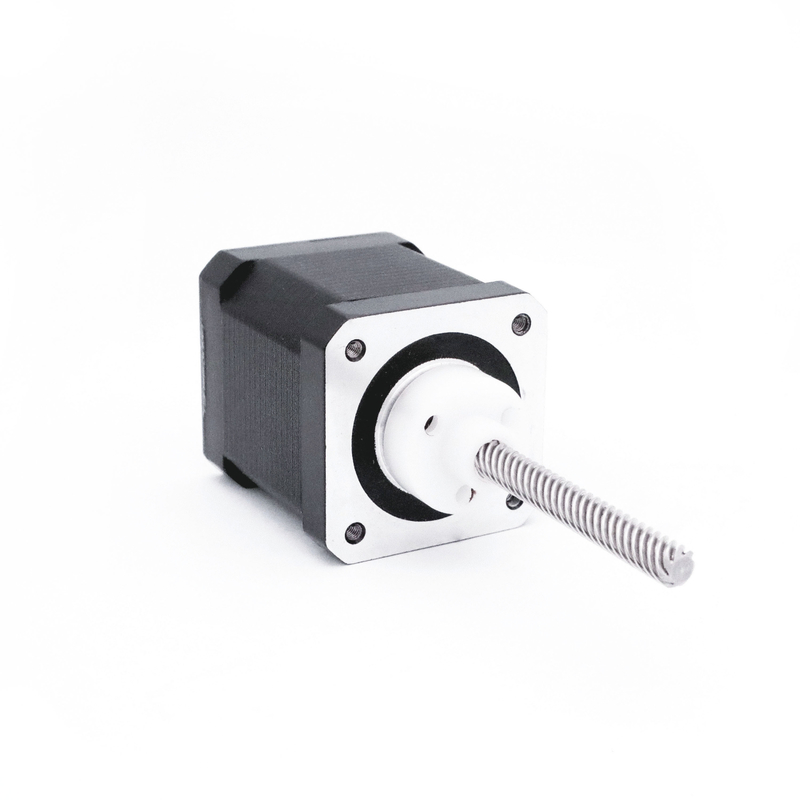

Nema 17 42mm Linear Stepper Motor 4 Lead Wire 12V 1.7A

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 42BYGHL
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
The Name Of Product Linear Stepper Motor Step Angle 1.8 °
Rated Voltage 2.3V-12V Rated Current 0.4A-1.7A
Step Accuracy ±5% No. Of Leads 4
Insulation Resistance 100MΩ Min.500VC DC Dielectric Strength 500VAC 1 Minute
MAX Radial Forcece 28N (20mm From Front Flange) MAX Axial Force 10N
High Light

42mm Linear Stepper Motor

,

12V 1.7A Linear Stepper Motor

,

1.7A Nema 17 Stepper Motor

Leave a Message
Product Description

Nema 17 42mm High Quality Linear Stepper Motor 4 Lead Wire 12V 1.7A Manufacture Direct Sale



The Features of the linear step motor

Engineers most commonly use these linear actuators in larger installations; on axes that move heavier loads, and in high-end medical or material-handling applications such as pick-and-place machinery that require extremely high precision. Like rotary equivalents, linear stepper motors either use a variable reluctance (just described) or a hybrid mode of operation. A hybrid linear-stepper platen is like that of a variable-reluctance linear stepper. In contrast, the forcer has multiple permanent magnets, magnetic U-shaped cores (with coils around them), and a steel yoke.



Electrical Specification Of Linear Stepper Motor

MODEL STEP ANGLE
(°/STEP)
LEAD WIRE
(NO.)
VOLTAGE
(V)
CURRENT
(A/PHASE)
RESISTANCE
(Ω/PHASE)
INDUCTANCE
(MH/PHASE)
HOLDING TORQUE
(KG.CM)
MOTOR HEIGHT
L(MM)
MOTOR WEIGHT
(KG)
42BYGHL208-12A 1.8 4 12.0 0.4 30.0 42.0 2.6 34 0.20
42BYGHL613-03A 1.8 4 2.3 1.7 1.35 3.0 3.5 40 0.26
42BYGHL810-09 1.8 4 3.8 1.2 3.2 6.0 4.5 48 0.36



You can download our 42BYGHL Linear Stepper Motor product brochure:42BYGHL.pdf



Nema 17 42mm Linear Stepper Motor 4 Lead Wire 12V 1.7A 0



Mechanical Dimension Of Linear Stepper Motor

Nema 17 42mm Linear Stepper Motor 4 Lead Wire 12V 1.7A 1
