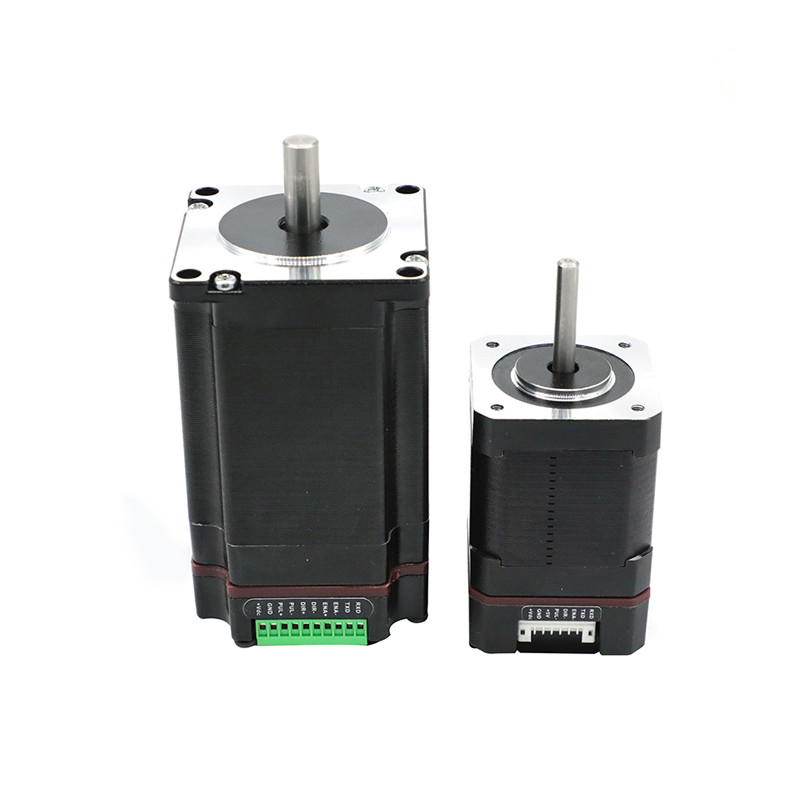

42mm Nema17 Integrated Stepper Motor 4 Wires 1.8 Step Angle

Name: 42mm Nema17 Integrated Stepper Motor 4 Wires 1.8 Step Angle
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: 42BYGH
Availability: InStock

Brand Name:	HeTai
Model Number:	42BYGH
MOQ:	50
Price:	USD
Delivery Time:	28-31 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Integrated Stepper Motor

Step Angle:

1.8 °

Hoiding Torque:

4.5 Kg.cm

Resistance:

1.65 Ω/phase

Induction:

2.8 MH/Phase

Step Accuracy:

± 5%

Temperature Rise:

80 ℃ Max

Ambient Temperature:

-20℃~+50℃

Insulation Resistance:

100MΩ Min.500 VDC

Dielectric Strength:

500VAC 1 Minute

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

5000 PCS/MONTH

Highlight:

1.8 Step Angle Integrated Stepper Motor

42mm Integrated Stepper Motor

4 Wires Nema17 Stepper Motor

Product Description

Factory Price 42mm Nema17 Integrated Stepper Motor 4 Wires 1.8 Step Angle

The Integrated Stepper Motor is a very economical motion control system because of its built-in microstep controller and driver electronics that are integrated into the assembly. The Integrated Stepper Motor series takes the guesswork out of stepper motor and driver compatibility. Integrated Stepper Motors, drivers and controllers are available in NEMA sizes 17 and 23, with torque ratings from 31 to 425 ounce inches. High torque stepper motors are used in the Integrated Stepper Motor series offer 1.8 degree step angle with stack lengths of 1/2, 1, 2, or 3, providing for a wide range of start-up torque and intertia. If you need modifications done on your stepper motor windings, shaft modifications and encoder adders are available for remote monitoring of position.

Electrical characteristics

Explanation	IO42
Explanation	Minimum Value	Typical Value	Maximal Value	Unit
Continuous output current	0.5	-	2.2	A
Power Supply Voltage (DC)	15	24	32	Vdc
Control signal input current	6	10	16	mA
Control signal input current	-	5	-	Vdc
Minimum time width of pulse high level	1.5	-	-	US
Overvoltage point	35			Vdc
Step frequency	0	-	200	KHz
Insulation Resistance	100			MΩ

Motor Electrical Specification

Model Number	42BYGH
Step Accuracy	± 5%
Step Angle	1.8°
Lead Wire	4
Rated Voltage (V)	2.8
Current (A/Phase)	1.7
Holding Torque (Kg.cm)	4.5
Resistance (Ω/phase)	1.65
Inductance (mH/phase)	2.8
Motor length (MM)	69
Motor Weight(Kg)	1.0
Insulation Class	B
