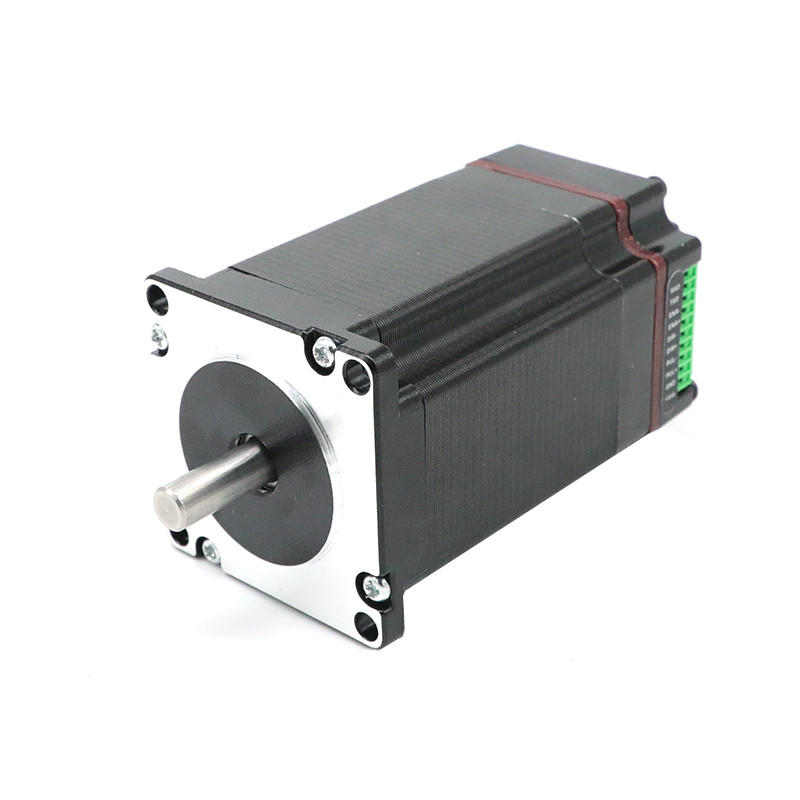

Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm

Name: Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: 57BYGH
Availability: InStock

Brand Name:	HeTai
Model Number:	57BYGH
MOQ:	50
Price:	USD
Delivery Time:	28-31 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Integrated Stepper Motor

Step Angle:

1.8 °

Hoiding Torque:

15 Kg.cm

Resistance:

0.5 Ω/phase

Induction:

1.8 MH/Phase

Step Accuracy:

± 5%

Temperature Rise:

80 ℃ Max

Ambient Temperature:

-20℃~+50℃

Insulation Resistance:

100MΩ Min.500 VDC

Dielectric Strength:

500VAC 1 Minute

MAX Radial Force:

75N (10mm From Front Flange)

MAX Axial Force:

15N

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

5000 PCS/MONTH

Highlight:

Nema23 Integrated Stepper Motor

57mm 4 Wires Integrated Stepper Motor

1.8Deg Nema23 Stepper Motor

Product Description

Factory Bulk Sale 57mm Nema23 High Quality Integrated Stepper Motor 4 Wires

The ADVANTAGE of Integrated Stepper Motor:

The motor 57BYGH was consist of a nema17 stepper motor and a driver, which is a kind of Integrated Pulse open-loop stepper motor.

The advantages of the integrated step motors are user-friendly, space-saving, high torque at low speeds, and Low vibration, low noise, smooth operation.

Electrical characteristics

Explanation	IO57
	Minimum Value	Typical Value	Maximal Value	Unit
Continuous output current	1.0	-	5.6	A
Power Supply Voltage (DC)	15	24/36	50	Vdc
Control signal input current	6	10	16	mA
Control signal input current	-	5	-	Vdc
Minimum time width of pulse high level	1.5	-	-	US
Overvoltage point	52			Vdc
Step frequency	0	-	200	KHz
Insulation Resistance	100			MΩ

Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm 0

Wiring Diagram

Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm 1

Mechanical Dimension Of Integrated Stepper Motor

Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm 2

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm 3

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Market Range of Hetai

Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm 4

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas

Europe:France,Germany,Italy,Spain, Norway etc.

North America: USA,Canada

Materials Of Hetai

Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm 5

Assembly Line Of Stepper Motor

CNC Machining Center

Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm 7

Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm 8

Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm 9

Packing&Delivery

Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm 10

Certification

Nema23 High Quality Integrated Stepper Motor 4 Wires 57mm 11
