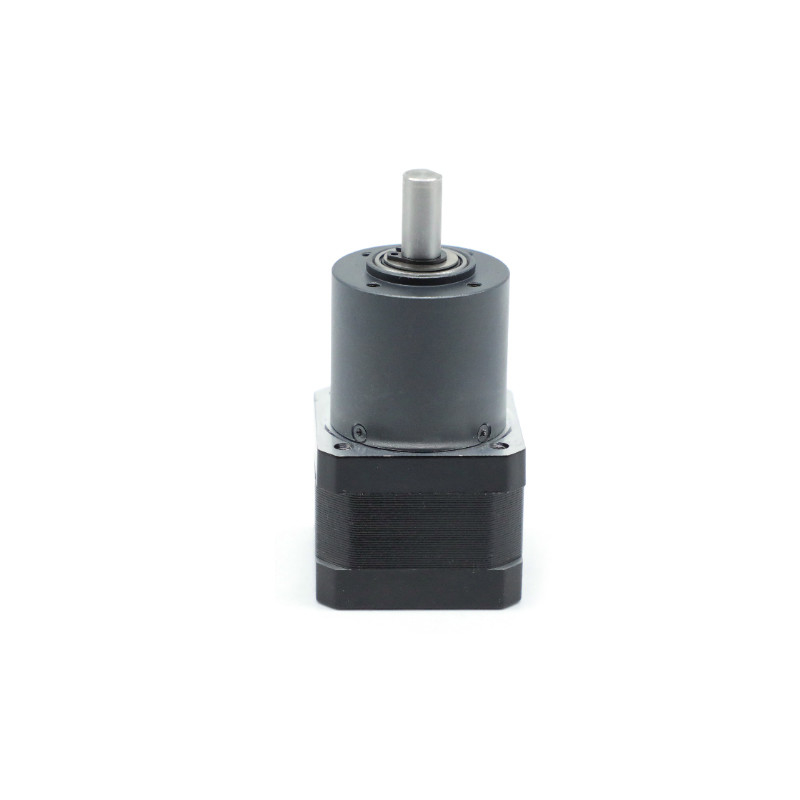

Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 42BYGH835-08AG16
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Gearbox Stepper Motor Stepper Angel 1.8
Step Angle Accuracy ±5% Rated Voltage 12V
Rated Current 0.5A Holding Torque 4.4N.m
Resistance 24 Ohms Phase 2
Motor Length 80.1mm Insulation Class B
High Light

Low Noise Stepper Planetary Gear Motor

,

Stepper Planetary Gear Motor

,

Customized Dc Gear Motor 12V

Leave a Message
Product Description

Customized high quality low noise step motor stepper planetary gear motor dc gear motor



The deceleration stepper motor is a very widely used deceleration transmission equipment. The main transmission structure is assembled by a stepper motor and a gear box. The working principle and application direction of the deceleration stepper motor are now introduced in detail; the stepper motor gear reduction unit is mainly It consists of a stepping motor and a gearbox reducer. The former is a stepping motor. The stepping motor switches the frequency of the stator phase current. If the input pulse of the stepping motor drive circuit is improved, it will become a low-speed motion.


Electrical Specification Of Gearbox Stepper Motor

Model
42BYGH835-08AG16
Step Angle (°/Step)
1.8
Lead Wire
4
Voltage (V)
12
Current(A/Phase)
0.5
Resistance
24
Inductance (mH/Phase)
36
Holding
Torque with gearbox (N.m)
4.4



Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 0



Mechanical Dimension Of Gearbox Stepper Motor

Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 1Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 2


ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.


Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 3
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 4
Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 5

Market Range Of Hetai
Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 6

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.


Raw Materials Of Gearbox Stepper Motor

Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 7Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 8



Automatic Winding Machine
 Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 9Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 10


Automatic Assembly Line

Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 11



Packing&Delivery
Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 12Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 13


Certification Of Hetai

Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 14Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 15Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 16Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 17Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 18Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 19Customized Low Noise Stepper Planetary Gear Motor Dc Gear Motor 20
