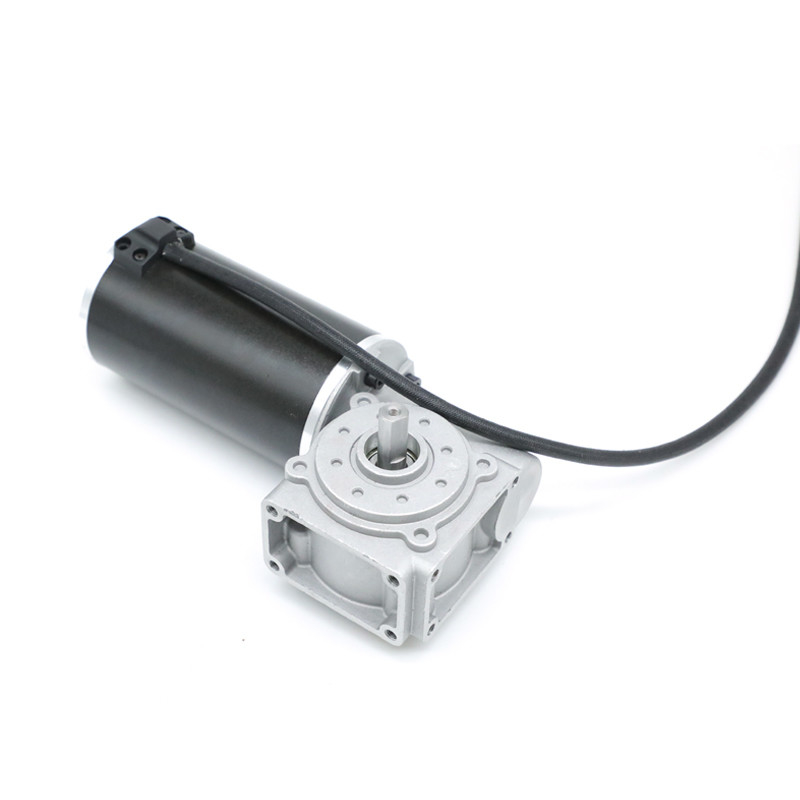

CW Direction 24v Dc Worm Gear Motor 190 RPM

Place of Origin China
Brand Name Hetai
Certification CE ROHS ISO
Model Number 64BLFX01A-001WG15
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000pcs/month
Product Details
Product Name DC Worm Gear Motor Nominal Voltage 24 V
Rated Speed 190 RPM Power 70W
Current 4.86A Rated Torque 3.5 N.M
Reduction Ratio 1:15 Material Steel
Direction CW Certification CE ROHS ISO
High Light

24v Dc Worm Gear Motor 190RPM

,

CW Direction Dc Worm Gear Motor

,

70W DC Worm Gearbox motor

Leave a Message
Product Description

Hetai bulk sale Worm Gear Motor low price high quality worm gearbox motor 24v dc worm gear motor



The worm gear motor is a power transmission mechanism that uses the speed converter of the gear to decelerate the number of revolutions of the motor (motor) to the required number of revolutions and obtain a large torque mechanism. In the mechanism used to transmit power and motion, the application range of reducer is quite extensive. Its traces can be seen in the transmission system of all kinds of machinery, from ships, automobiles, locomotives, heavy machinery for construction, processing machinery and automatic production equipment used in the machinery industry, to common household appliances in daily life. , clocks, etc. The application of the reducer can be seen from the transmission of large power to the transmission of small loads and precise angle. In industrial applications, the reducer has the functions of deceleration and torque increase. Therefore, it is widely used in speed and torque conversion equipment



Electrical Specification:

Model
Worm Gear Motor
Voltage (V)
24
Current(A)
4.86A
Rated Speed
190±10%
Rated Torque (N.m)
3.5
Reduction Ratio
1:15


Mechanical Dimension

CW Direction 24v Dc Worm Gear Motor 190 RPM 0CW Direction 24v Dc Worm Gear Motor 190 RPM 1



High-quality Raw Materials

CW Direction 24v Dc Worm Gear Motor 190 RPM 2

CNC Center

CW Direction 24v Dc Worm Gear Motor 190 RPM 3CW Direction 24v Dc Worm Gear Motor 190 RPM 4CW Direction 24v Dc Worm Gear Motor 190 RPM 5



Automatic assembly line

CW Direction 24v Dc Worm Gear Motor 190 RPM 6



Certification Of Hetai

CW Direction 24v Dc Worm Gear Motor 190 RPM 7CW Direction 24v Dc Worm Gear Motor 190 RPM 8CW Direction 24v Dc Worm Gear Motor 190 RPM 9CW Direction 24v Dc Worm Gear Motor 190 RPM 10



Packing and delivery

CW Direction 24v Dc Worm Gear Motor 190 RPM 11CW Direction 24v Dc Worm Gear Motor 190 RPM 12
