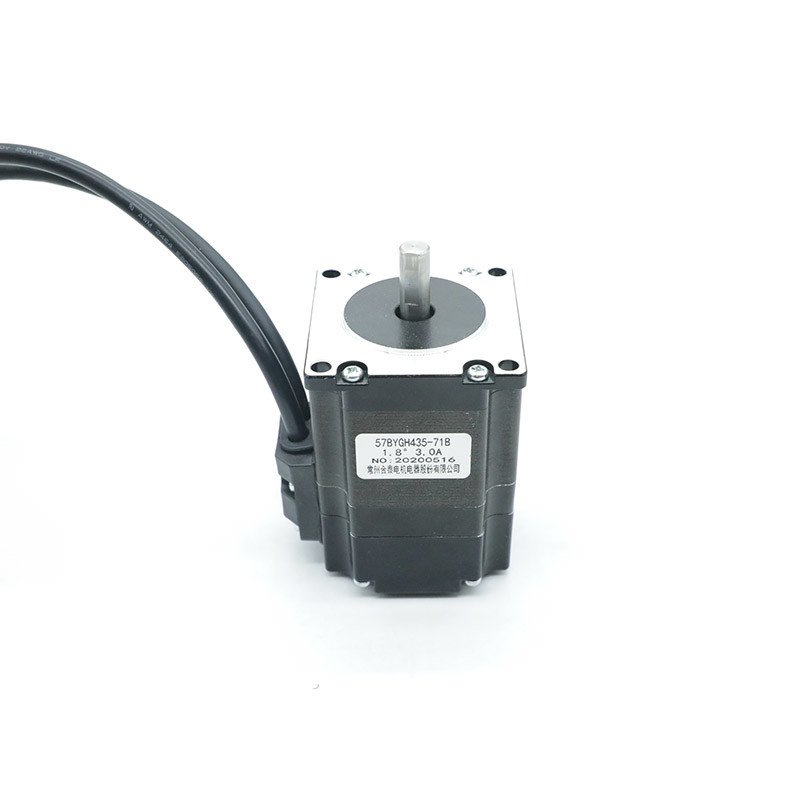

Nema23 2 Phase Hybrid Stepper Motor 57mm 2.7V

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 57BYGH435-71B
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hybrid Stepper Motor Step Angle 1.8 °
Rated Voltage 2.7V Current 3A
Phase 2 Dielectric Strength 500VAC 1 Minute
Resistance/Phase 12ohms Holding Torque 1.3Kg.cm
Inductance 2.5mH Certification CE ROHS ISO
High Light

2Phase Hybrid Stepper Motor

,

57mm 2.7V Hybrid Stepper Motor

,

3A Nema 23 Stepper Motor

Leave a Message
Product Description

Hetai hot sale new product 57mm nema23 stepper motor high quality stepping motor hybrid stepper motor



Advantages of step motor:

1. The angle of the motor rotation is proportional to the pulse number;

2. When the motor is stopped, it has the biggest torque (when the winding is exciting);

3. Because the accuracy of each step is three to five percent, and the one -step error will not be accumulated to the next step, there is a good position accuracy and repeatability of exercise;

4. Excellent start -up and response;

5. Because there is no brush and high reliability, the life of the motor depends only on the life of the bearings;

6. The response of the motor is determined only by the digital input pulse, so it can be used to control the loop control, which allows the structure of the motor to be simpler and controlled;

7. Just connect the load directly to the rotation of the motor can also be rotated simultaneously at low speed;

8. Because the speed is proportional to the pulse frequency, there is a wider speed range.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500V DC
Step Angle
1.8°
Lead wire
4
Voltage (V)
2.7
Current (A/Phase)
3
Holding Torque (N.m)
1.3



Nema23 2 Phase Hybrid Stepper Motor 57mm 2.7V 0




Mechanical Dimension Of Hybrid Stepper Motor

Nema23 2 Phase Hybrid Stepper Motor 57mm 2.7V 1



Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Nema23 2 Phase Hybrid Stepper Motor 57mm 2.7V 2

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.



Nema23 2 Phase Hybrid Stepper Motor 57mm 2.7V 3



Market Range of Hetai

China Changzhou Hetai Motor And Electric Appliance Co., Ltd. company profile 5

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany,Italy,Spain, Norway etc.
North America: USA,Canada


Factory Scale

Nema23 2 Phase Hybrid Stepper Motor 57mm 2.7V 5Nema23 2 Phase Hybrid Stepper Motor 57mm 2.7V 6



CNC Center

Nema23 2 Phase Hybrid Stepper Motor 57mm 2.7V 7Nema23 2 Phase Hybrid Stepper Motor 57mm 2.7V 8Nema23 2 Phase Hybrid Stepper Motor 57mm 2.7V 9



Inspection Equipment

China Changzhou Hetai Motor And Electric Appliance Co., Ltd. company profile 3



Packing&Delivery

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 16

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 17



Certificate Of Hetai

China Changzhou Hetai Motor And Electric Appliance Co., Ltd. company profile 6
