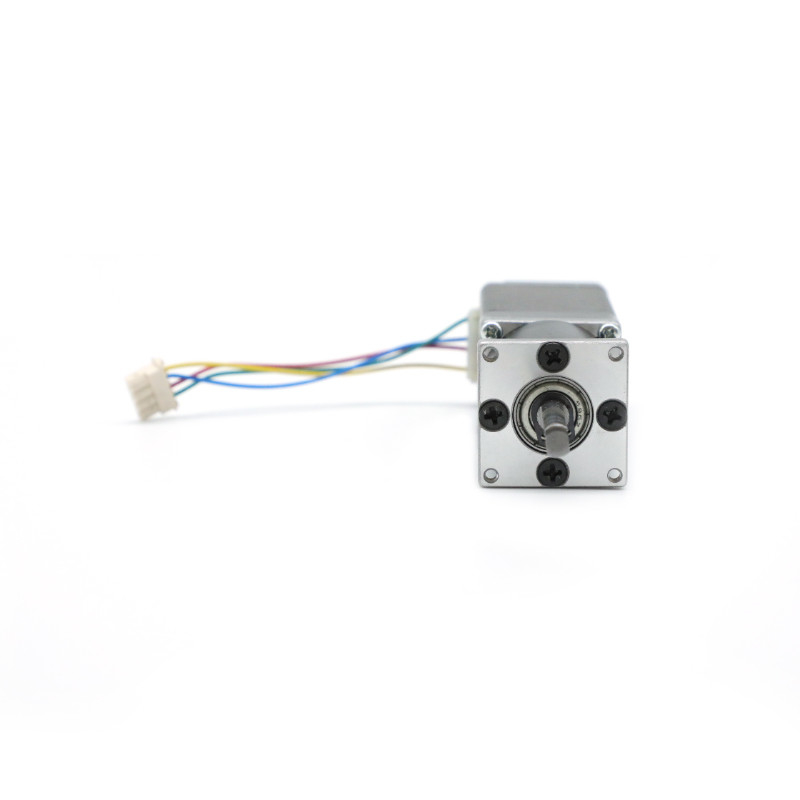

28BYGH502 28m Nema11 Stepping Motor Hybrid Stepper Motor

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 28BYGH502
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH
Product Details
Product Name Hybrid Stepper Motor Step Angle 1.8 °
Lead Wire 6 Rated Voltage 3.8V
Holding Torque 0.9 Kg.cm Current 0.95A
Inductance 1.3 MH Resistance 4 Ω
Dielectric Strength 500VAC 1 Minute Certification CE ROHS ISO
High Light

28m Nema11 Stepping Motor

,

Hybrid Nema11 Stepping Motor

,

500VAC Hybrid Stepper Motor

Leave a Message
Product Description

Hetai 28BYGH502 hot sale 28m nema11 stepper motor manufacture direct supply stepping motor hybrid stepper motor



Advantages of stepper motors:
Without closed-loop control, the running speed and position of the motor can be precisely controlled, and it can run at very low speed.
Stepper motor features:
In addition to the above advantages, the characteristics of stepper motors also include: stepper motors are a special DC brushless motor, driven by DC power, need a driver, easy to resonate at low speed, faster torque decay at high speed, start and stop generally need to increase Deceleration program processing, the running noise will be relatively large, the efficiency is not high, and the size will not be too large.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500VAC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500VDC
Step Angle
1.8°
Lead wire
6
Voltage (V)
3.80
Current (A/Phase)
0.95
Holding Torque (N.m)
0.90



28BYGH502 28m Nema11 Stepping Motor Hybrid Stepper Motor 0




Mechanical Dimension Of Hybrid Stepper Motor

28BYGH502 28m Nema11 Stepping Motor Hybrid Stepper Motor 1



Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

28BYGH502 28m Nema11 Stepping Motor Hybrid Stepper Motor 2

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.



28BYGH502 28m Nema11 Stepping Motor Hybrid Stepper Motor 3
