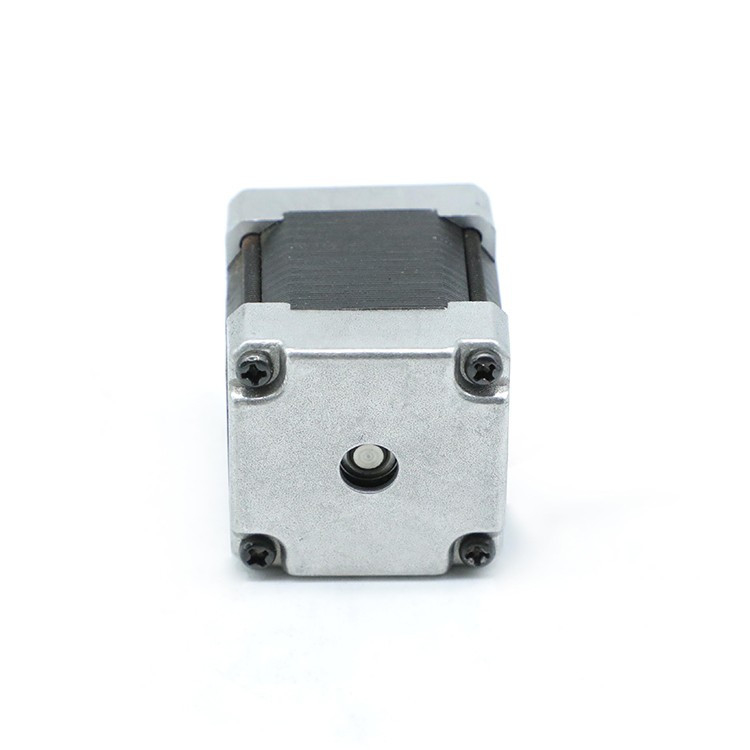

39BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A

  • 39BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A
  • 39BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A
  • 39BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A
  • 39BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A
  • 39BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A
  • 39BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A
Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 39BYGX001A
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hybrid Stepper Motor Step Angle 1.8 °
Lead Wire 4 Rated Voltage 13.44 V
Current 0.48A Resistance 28 Ω
Inductance 21 MH Holding Torque 1 Kg.cm
Motor Height 20 Mm Motor Weight 0.10 Kgs
High Light

Nema16 High Torque Stepper Motor

,

0.48A High Torque Stepper Motor

,

13V Hybrid Stepper Motor
Leave a Message
Product Description

Hetai hot sale 39BYGX001A 13V 0.48A nema16 wholesale high output high torque stepper motor



Advantages of stepper motors:
1. Good overload performance. Its speed is not affected by the size of the load. Unlike ordinary motors, when the load increases, the speed will drop. Stepper motors have strict requirements on speed and position.
2. Easy to control. The stepper motor rotates in the unit of "step", and the digital characteristics are more obvious.
3. The structure of the whole machine is simple. The traditional mechanical speed and position control structure is complex and difficult to adjust. After using the stepper motor, the structure of the whole machine becomes simple and compact. The tachometer converts the speed into a voltage and transmits it to the input as a feedback signal. The tachometer motor is an auxiliary motor. The tachometer motor is installed at the end of the ordinary DC motor, and the voltage generated by the tachometer motor is fed back to the DC power supply to achieve the purpose of controlling the speed of the DC motor.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500V DC
Step Angle
1.8°
Lead wire
4
Voltage (V)
13.44
Current (A/Phase)
0.48
Holding Torque (Kg.cm)
1 Kg.cm



39BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A 0


Mechanical Dimension Of Hybrid Stepper Motor

39BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A 139BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A 2



Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

39BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A 3

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.



39BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A 4



Market Range of Hetai

China Changzhou Hetai Motor And Electric Appliance Co., Ltd. company profile 5

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany,Italy,Spain, Norway etc.
North America: USA,Canada

Stator Winding Machine
39BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A 639BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A 7


CNC Center

39BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A 839BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A 939BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A 10



Packing&Delivery

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 16

Changzhou Hetai Motor And Electric Appliance Co., Ltd. factory production line 17



Certificate of Stepper Motor

39BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A 13

39BYGX001A Nema16 High Output High Torque Stepper Motor 13V 0.48A 14
