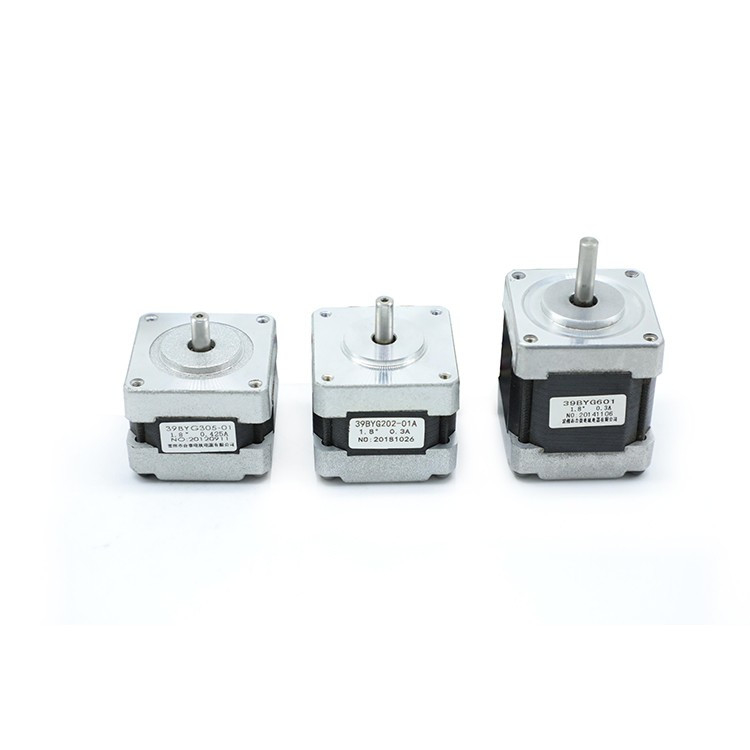

NEMA16 39BYGX200A High Torque Stepper Motor 39mm 14.4V 0.4A

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 39BYGX200A
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH
Product Details
Product Name Hybrid Stepper Motor Step Angle 1.8 °
Lead Wire 4 Rated Voltage 14.4V
Current 0.4A Resistance 36 Ω
Inductance 33mH Holding Torque 1.7 Kg.cm
Motor Height 25 Mm Motor Weight 0.14 Kgs
High Light

High Torque Stepper Motor 39mm

,

High Torque Stepper Motor 14.4V

,

NEMA16 Stepper Motor 0.4A

Leave a Message
Product Description

NEMA16 39mm factory direct sale 39BYGX200A 14.4V 0.4A wholesale high quality high torque stepper motor



Advantages of stepper motors
1. Since there is no brush, the reliability is high, so the life of the motor only depends on the life of the bearing;
2. The response of the motor is only determined by the digital input pulse, so open-loop control can be used, which makes the structure of the motor relatively simple and the cost is controlled;
3. Only by connecting the load directly to the shaft of the motor can also rotate synchronously at very low speed.
4. Since the speed is proportional to the pulse frequency, it has a relatively wide speed range.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500V DC
Step Angle
1.8°
Lead wire
4
Voltage (V)
14.4
Current (A/Phase)
0.4
Holding Torque (Kg.cm)
1.7 Kg.cm



NEMA16 39BYGX200A High Torque Stepper Motor 39mm 14.4V 0.4A 0


Mechanical Dimension Of Hybrid Stepper Motor

NEMA16 39BYGX200A High Torque Stepper Motor 39mm 14.4V 0.4A 1NEMA16 39BYGX200A High Torque Stepper Motor 39mm 14.4V 0.4A 2



Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

NEMA16 39BYGX200A High Torque Stepper Motor 39mm 14.4V 0.4A 3

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.



NEMA16 39BYGX200A High Torque Stepper Motor 39mm 14.4V 0.4A 4



Market Range of Hetai

China Changzhou Hetai Motor And Electric Appliance Co., Ltd. company profile 5

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas
Europe:France,Germany,Italy,Spain, Norway etc.
North America: USA,Canada

High quality raw materials
NEMA16 39BYGX200A High Torque Stepper Motor 39mm 14.4V 0.4A 6

Automatic Assembly Line
NEMA16 39BYGX200A High Torque Stepper Motor 39mm 14.4V 0.4A 7

Stator Winding Machine
NEMA16 39BYGX200A High Torque Stepper Motor 39mm 14.4V 0.4A 8NEMA16 39BYGX200A High Torque Stepper Motor 39mm 14.4V 0.4A 9


CNC Center

NEMA16 39BYGX200A High Torque Stepper Motor 39mm 14.4V 0.4A 10NEMA16 39BYGX200A High Torque Stepper Motor 39mm 14.4V 0.4A 11NEMA16 39BYGX200A High Torque Stepper Motor 39mm 14.4V 0.4A 12
