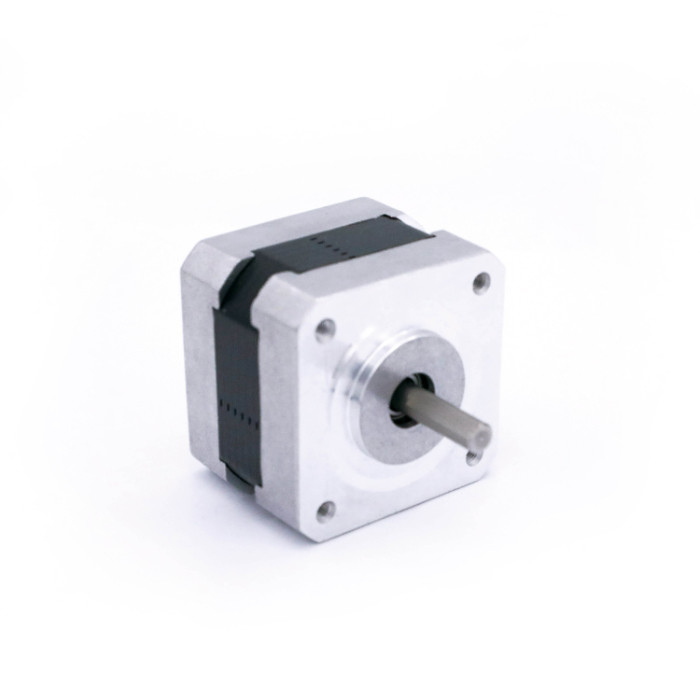

NEMA17 42BYGH208-52A High Torque Stepper Motor 12V 0.4A 42mm

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 42BYGH208-52A
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hybrid Stepper Motor Step Angle 1.8 °
Lead Wire 4 Rated Voltage 12V
Current 0.4A Resistance 30 Ω
Inductance 42mH Holding Torque 2.5 Kg.cm
Motor Height 34 Mm Motor Weight 0.20 Kgs
High Light

NEMA17 High Torque Stepper Motor

,

42mm High Torque Stepper Motor

,

12V 0.4A Hybrid Stepper Motor

Leave a Message
Product Description

NEMA17 42mm hot sale 42BYGH208-52A 12V 0.4A wholesale high quality high torque stepper motor



Stepper motor is an open-loop control motor that converts electrical pulse signals into angular displacement or linear displacement. It is the main executive element in modern digital program control systems and is widely used. . In the case of non-overload, the speed and stop position of the motor only depend on the frequency and number of pulses of the pulse signal, and are not affected by the load change. When the stepper driver receives a pulse signal, it drives the stepper motor to press The set direction is rotated by a fixed angle, called "step angle", and its rotation is performed step by step at a fixed angle. The angular displacement can be controlled by controlling the number of pulses, so as to achieve the purpose of accurate positioning; at the same time, the speed and acceleration of the motor rotation can be controlled by controlling the pulse frequency, so as to achieve the purpose of speed regulation.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500V DC
Step Angle
1.8°
Lead wire
4
Voltage (V)
12
Current (A/Phase)
0.4
Holding Torque (Kg.cm)
2.5 Kg.cm



NEMA17 42BYGH208-52A High Torque Stepper Motor 12V 0.4A 42mm 0


Mechanical Dimension Of Hybrid Stepper Motor

NEMA17 42BYGH208-52A High Torque Stepper Motor 12V 0.4A 42mm 1
