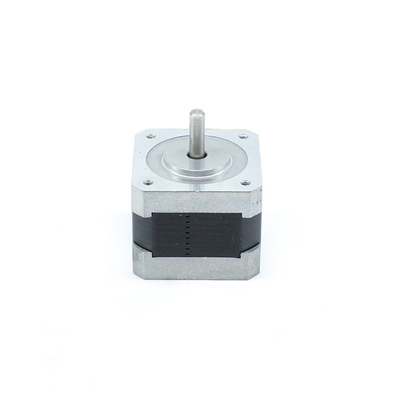

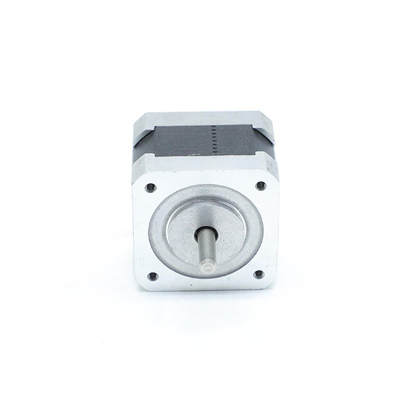

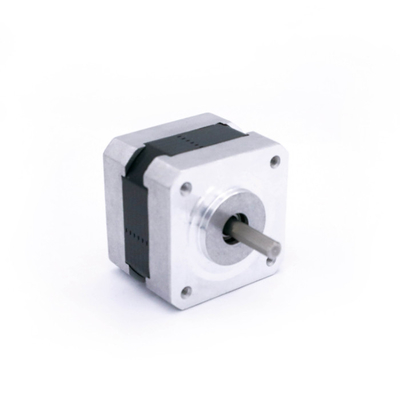

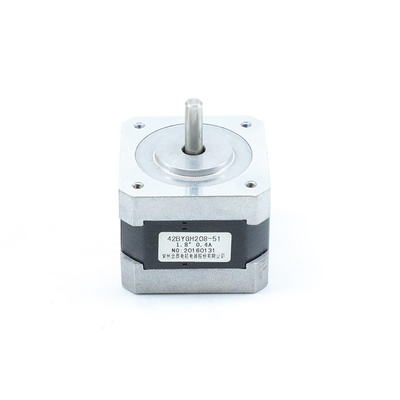

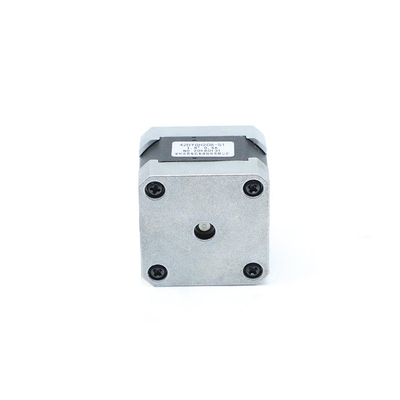

42BYGH705-07 High Torque Hybrid Stepper Motor High Performance Nema17 12V 0.3A

Name: 42BYGH705-07 High Torque Hybrid Stepper Motor High Performance Nema17 12V 0.3A
Brand: Changzhou Hetai Motor And Electric Appliance Co., Ltd.
SKU: 42BYGH705-07
Availability: InStock

Brand Name:	HeTai
Model Number:	42BYGH705-07
MOQ:	50
Price:	USD
Delivery Time:	28-31 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ROHS ISO

Product Name:

Hybrid Stepper Motor

Step Angle:

1.8 °

Lead Wire:

Rated Voltage:

12V

Current:

0.3A

Resistance:

40 Ω

Inductance:

80mH

Holding Torque:

4 Kg.cm

Motor Height:

44 Mm

Motor Weight:

0.30 Kg

Packaging Details:

Carton with Inner Foam Box, Pallet

Supply Ability:

5000 PCS/MONTH

Highlight:

Hybrid Stepper Motor Nema17

42BYGH705-07 Hybrid Stepper Motor

High Torque Stepper Motor 0.3A

Product Description

Hetai hot sale 42BYGH705-07 Nema17 12V 0.3A High Torque high performance Hybrid Stepper Motor

Compared with other motors, stepper motors generally have five obvious characteristics:

First, fine and correct positioning can be achieved

Second, it can be easily controlled by pulse signal

Third, small size, high torque

Fourth, it can keep the stop position by itself

Fifth, large inertial loads can be carried out

Electrical Specification Of Hybrid Stepper Motor

Product Name	Hybrid Stepper Motor
Step Accuracy	± 5%
Dielectric Strength	500V AC 1minute
Ambient Temperature	-20℃~50℃
Insulation resistance	100MΩ Min.500V DC
Step Angle	1.8°
Lead wire	4
Voltage (V)	12
Current (A/Phase)	0.3
Holding Torque (Kg.cm)	4 Kg.cm

42BYGH705-07 High Torque Hybrid Stepper Motor High Performance Nema17 12V 0.3A 0

Mechanical Dimension Of Hybrid Stepper Motor

42BYGH705-07 High Torque Hybrid Stepper Motor High Performance Nema17 12V 0.3A 1

Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

42BYGH705-07 High Torque Hybrid Stepper Motor High Performance Nema17 12V 0.3A 2

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

42BYGH705-07 High Torque Hybrid Stepper Motor High Performance Nema17 12V 0.3A 3

Market Range of Hetai

42BYGH705-07 High Torque Hybrid Stepper Motor High Performance Nema17 12V 0.3A 4

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.

From China to Overseas

Europe:France,Germany,Italy,Spain, Norway etc.

North America: USA,Canada

Stator Winding Machine

CNC Center

42BYGH705-07 High Torque Hybrid Stepper Motor High Performance Nema17 12V 0.3A 7

Packing&Delivery

42BYGH705-07 High Torque Hybrid Stepper Motor High Performance Nema17 12V 0.3A 10

42BYGH705-07 High Torque Hybrid Stepper Motor High Performance Nema17 12V 0.3A 11
