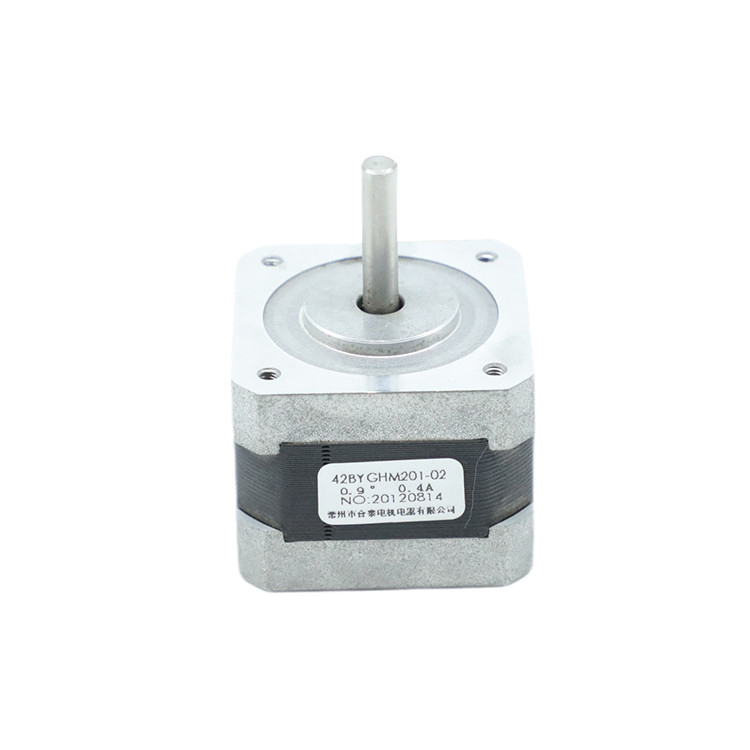

Hetai Nema17 Hybrid Stepping Motor 42mm 0.9 Step Angle

Place of Origin China
Brand Name HeTai
Certification CE ROHS ISO
Model Number 42BYGHM203
Minimum Order Quantity 50
Price USD
Packaging Details Carton with Inner Foam Box, Pallet
Delivery Time 28-31 DAYS
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 PCS/MONTH

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Hybrid Stepper Motor Step Angle 0.9 °
Lead Wire 4 Rated Voltage 10V
Rated Current 0.5A Resistance 20 Ω
Inductance 40mH Holding Torque 2.1 Kg.cm
Motor Height 34 Mm Motor Weight 0.20 Kg
High Light

Nema17 Hybrid Stepping Motor

,

0.9 Step Angle Hybrid Stepping Motor

,

42mm Nema17 Stepper Motor

Leave a Message
Product Description

Hetai nema17 hot sale 42mm high quality factory direct supply stepping motor hybrid stepper motor



Features of stepper motors:

1. The accuracy of the stepping motor is generally 3-5% of the stepping angle.

2. The maximum allowable temperature of the stepper motor depends on the demagnetization point of different motor magnetic materials. When the temperature of the stepper motor is too high, the magnetic material of the motor will demagnetize, resulting in a drop in torque or even loss of steps.

3. The torque of the stepper motor will decrease as the speed increases. When the stepping motor rotates, the inductance of each phase winding of the motor will form a back electromotive force; the higher the frequency, the greater the back electromotive force.

4. The stepper motor can run normally at low speed, but it cannot be started above a certain speed, accompanied by whistling.



Electrical Specification Of Hybrid Stepper Motor

Product Name
Hybrid Stepper Motor
Step Accuracy
± 5%
Dielectric Strength
500V AC 1minute
Ambient Temperature
-20℃~50℃
Insulation resistance
100MΩ Min.500V DC
Step Angle
0.9°
Lead wire
4
Voltage (V)
10
Current (A/Phase)
0.5
Holding Torque (Kg.cm)
2.1 Kg.cm



Hetai Nema17 Hybrid Stepping Motor 42mm 0.9 Step Angle 0


Mechanical Dimension Of Hybrid Stepper Motor

Hetai Nema17 Hybrid Stepping Motor 42mm 0.9 Step Angle 1



Product Range Of Hetai

Our main products are Stepper Motor, Planetary Gearbox& Gearbox Motor, Brushless DC Motor, Servo Motor.

Hetai Nema17 Hybrid Stepping Motor 42mm 0.9 Step Angle 2

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.



Hetai Nema17 Hybrid Stepping Motor 42mm 0.9 Step Angle 3



New showroom of Hetai

Hetai Nema17 Hybrid Stepping Motor 42mm 0.9 Step Angle 4Hetai Nema17 Hybrid Stepping Motor 42mm 0.9 Step Angle 5



Market Range of Hetai

China Changzhou Hetai Motor And Electric Appliance Co., Ltd. company profile 5

Hetai also sends its products to the USA, Europe, Southeast Asia, and all-around China.
